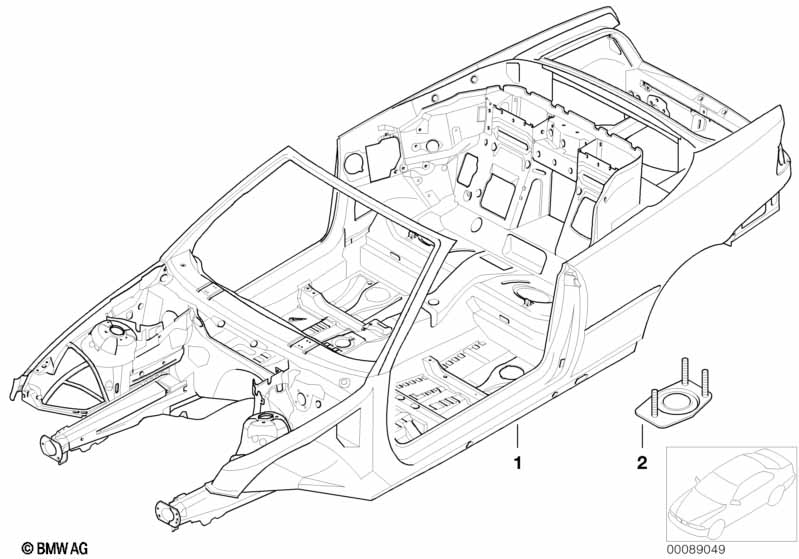

Body skeleton for BMW 3 Series E46 325Ci (2006)
This Body skeleton technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Suitable for vehicles with and without E.H.FOLDING TOP If necessary, with Reinforcement, support bearing at SA815 = poor road package |
|||||||||
| 01 | Body skeleton | BASIS | 1 | 41007022005 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 325Ci Body skeleton?
- This technical diagram illustrates the Body skeleton within the Bodywork group for the 3 Series E46 325Ci produced during 2006. It provides a detailed exploded view of the components, identifying key parts such as the Body skeleton (Part #41007022005).
- Which models use the hardware listed in this Body skeleton?
- The hardware and components featured in the Body skeleton are specific to the 3 Series E46 325Ci produced during 2006. These technical specifications ensure that parts like the Body skeleton (41007022005) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Body skeleton assembly?
- Each item in the Body skeleton corresponds to the numbered list below the illustration. For the 3 Series E46 325Ci, you can identify the Body skeleton by locating its position on the schematic, which then links to the official BMW part number 41007022005 for the Bodywork section.
