Body-side frame for BMW 3 Series E46 320Ci (2006)

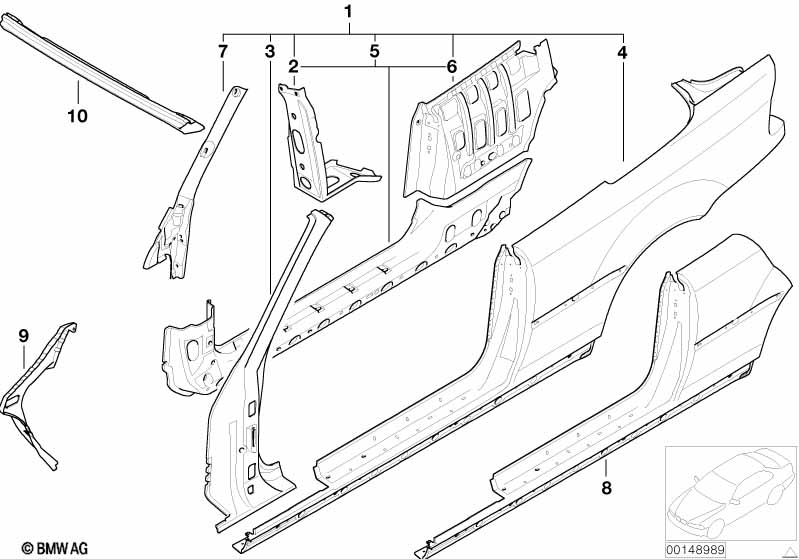

This Body-side frame technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Please observe Repair Manual. | ||||||||||
| 01 | Body-side frame left | 1 | 41357022591 | $1222.00 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Section of entrance left | 1 | 41217022783 | $449.84 | Shop at ECS Tuning | |||||
| 01 | Body-side frame right | 1 | 41357022592 | $1222.00 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Section of entrance right | 1 | 41217022784 | $449.84 | Shop at ECS Tuning | |||||
| 02 | Top, B-column left | 1 | 41218234681 | $36.32 | Shop at ECS Tuning | |||||
| 02 | Top, B-column right | 1 | 41218234682 | $36.32 | Shop at ECS Tuning | |||||
| 03 | Left exterior column A | 1 | 41217022019 | $484.70 | Shop at ECS Tuning | |||||
| additionally required parts: Door hinge |
||||||||||
| 03 | Column A exterior right | 1 | 41217022020 | $484.70 | Shop at ECS Tuning | |||||
| additionally required parts: Door hinge |
||||||||||
| 04 | Left rear side panel | 1 | 41357029221 | $500.05 | Shop at ECS Tuning | |||||
| 04 | Right rear side panel | 1 | 41357029222 | $500.05 | Shop at ECS Tuning | |||||
| 05 | Left interior side frame | 1 | 41217022021 | $809.37 | Shop at ECS Tuning | |||||
| 05 | Right interior side frame | 1 | 41217022022 | $809.37 | Shop at ECS Tuning | |||||
| 06 | Reinforcement column B inside left | 1 | 41217022589 | $114.23 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Top, B-column left | 1 | 41218234681 | $36.32 | Shop at ECS Tuning | |||||
| 06 | Reinforcement column B inside right | 1 | 41217022590 | $114.23 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Top, B-column right | 1 | 41218234682 | $36.32 | Shop at ECS Tuning | |||||
| 07 | Reinforcement column A inside left | 1 | 41327022025 | $171.37 | ENDED | Shop at ECS Tuning | ||||
| 07 | Reinforcement column A inside right | 1 | 41327022026 | $171.37 | ENDED | Shop at ECS Tuning | ||||
| 08 | Section of entrance left | 1 | 41217022783 | $449.84 | Shop at ECS Tuning | |||||
| 08 | Section of entrance right | 1 | 41217022784 | $449.84 | Shop at ECS Tuning | |||||
| 09 | Connect.plate f.left side panel frame | 1 | 41218228243 | $55.70 | Shop at ECS Tuning | |||||
| 09 | Connect.plate f.right side panel frame | 1 | 41218228244 | $55.70 | Shop at ECS Tuning | |||||
| 10 | Upper apron | 1 | 41327020737 | $120.59 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
