Door weatherstrip front for BMW Z8 E52 Z8 (2003)

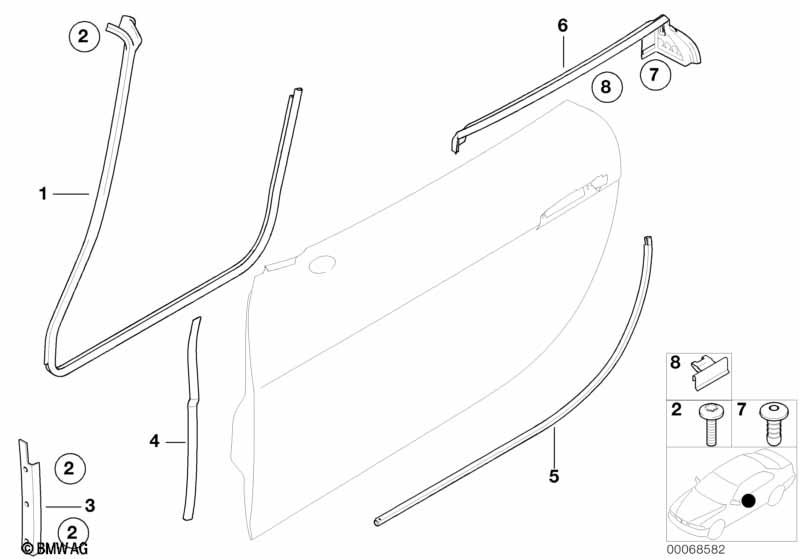

This Door weatherstrip front technical drawing provides a detailed breakdown of the assembly for the Z8 E52 Z8. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Gasket, door, left | 1 | 51718232333 | $184.27 | Shop at ECS Tuning | |||||
| 01 | Gasket, door, right | 1 | 51718232334 | $184.27 | Shop at ECS Tuning | |||||
| 02 | Torx-bolt with washer | M5X16 | 8 | 51179158844 | Shop at ECS Tuning | |||||
| 03 | Rail, column A left | 1 | 51718236801 | $52.89 | Shop at ECS Tuning | |||||
| 03 | Rail, column A right | 1 | 51718236802 | $52.89 | Shop at ECS Tuning | |||||
| 04 | Front left sealing betw.door and column | 1 | 51338232331 | $121.25 | Shop at ECS Tuning | |||||
| 04 | Front right sealing betw.door and column | 1 | 51338232332 | $121.25 | Shop at ECS Tuning | |||||
| 05 | Gasket, door joint, bottom left | 1 | 51338232335 | $33.38 | Shop at ECS Tuning | |||||
| 05 | Gasket, door joint, bottom right | 1 | 51338232336 | $33.38 | Shop at ECS Tuning | |||||
| 06 | Channel sealing, door left | 1 | 51338232343 | $214.33 | Shop at ECS Tuning | |||||
| 06 | Channel sealing, door right | 1 | 51338232344 | $214.33 | Shop at ECS Tuning | |||||
| 07 | Clip | 4 | 52108151597 | $0.23 | Shop at ECS Tuning | |||||
| 08 | Door window railing clip | 10 | 07149149284 | $0.66 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW Z8 E52 Z8 Door weatherstrip front?
- This technical diagram illustrates the Door weatherstrip front within the Bodywork group for the Z8 E52 Z8 produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Gasket, door, left (Part #51718232333).
- Which models use the hardware listed in this Door weatherstrip front?
- The hardware and components featured in the Door weatherstrip front are specific to the Z8 E52 Z8 produced during 2003. These technical specifications ensure that parts like the Gasket, door, left (51718232333) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Door weatherstrip front assembly?
- Each item in the Door weatherstrip front corresponds to the numbered list below the illustration. For the Z8 E52 Z8, you can identify the Gasket, door, left by locating its position on the schematic, which then links to the official BMW part number 51718232333 for the Bodywork section.
