Door swivel handle, rr (from 09/00) for BMW 3 Series E46 325i (2001)

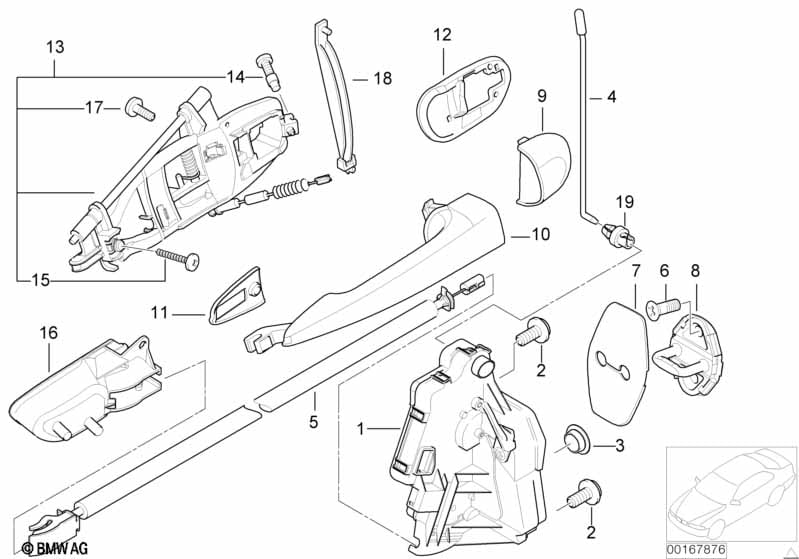

This Door swivel handle, rr (from 09/00) technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | door lock with motor actuator, left | 1 | 09/2000 | 51227011245 | $130.07 | Shop at ECS Tuning | ||||
| 01 | door lock with motor actuator, right | 1 | 09/2000 | 51227011246 | $130.07 | Shop at ECS Tuning | ||||
| 02 | Torx-bolt with washer | M6X12 | 6 | 09/2000 | 51219130334 | $0.39 | Shop at ECS Tuning | |||
| 03 | Plug | D=8MM | 2 | 09/2000 | 51218235768 | $0.39 | Shop at ECS Tuning | |||
| 04 | Left operating rod | 1 | 09/2000 | 51228212171 | $0.87 | Shop at ECS Tuning | ||||
| 04 | Right operating rod | 1 | 09/2000 | 51228212172 | $0.87 | Shop at ECS Tuning | ||||
| 05 | Bowden cable, door opener | 2 | 09/2000 | 51218213797 | $7.73 | Shop at ECS Tuning | ||||
| 06 | Torx-countersunk head screw | M8X18 | 4 | 09/2000 | 51211928850 | $0.52 | Shop at ECS Tuning | |||
| 07 | cover, lock wedge | 2 | 09/2000 | 51218226578 | $2.75 | Shop at ECS Tuning | ||||
| 08 | Latch Striker | 2 | 09/2000 | 51218196035 | $15.58 | Shop at ECS Tuning | ||||
| 09 | Covering primend left | 1 | 09/2000 | 51217002277 | $14.07 | Shop at ECS Tuning | ||||
| 09 | Covering primend right | 1 | 09/2000 | 51217002278 | $14.07 | Shop at ECS Tuning | ||||
| 09 | Covering left | SCHWARZ | 1 | 09/2000 | 51218253475 | $16.48 | Shop at ECS Tuning | |||
| 09 | Covering right | SCHWARZ | 1 | 09/2000 | 51218253476 | $16.48 | Shop at ECS Tuning | |||
| 10 | Handle bracket, left prime-coated | 1 | 09/2000 | 51217002271 | $26.36 | Shop at ECS Tuning | ||||
| 10 | Handle bracket, right prime-coated | 1 | 09/2000 | 51217002272 | $26.36 | Shop at ECS Tuning | ||||
| 10 | Handle bracket left | SCHWARZ | 1 | 09/2000 | 51218253455 | $26.06 | Shop at ECS Tuning | |||
| 10 | Handle bracket right | SCHWARZ | 1 | 09/2000 | 51218253456 | $26.06 | Shop at ECS Tuning | |||
| 11 | Handle bracket base, left | 1 | 09/2000 | 51217012767 | $1.49 | Shop at ECS Tuning | ||||
| 11 | Handle bracket base, right | 1 | 09/2000 | 51217012768 | $1.49 | Shop at ECS Tuning | ||||
| 12 | Lock cylinder base left | 1 | 09/2000 | 51217012769 | $1.58 | Shop at ECS Tuning | ||||
| 12 | Lock cylinder base right | 1 | 09/2000 | 51217012770 | $1.58 | Shop at ECS Tuning | ||||
| 13 | Carrier, outside door handle, rear left | 1 | 09/2000 | 51227044841 | $59.63 | Shop at ECS Tuning | ||||
| 13 | Carrier, outside door handle, rear right | 1 | 09/2000 | 51227044842 | $59.63 | Shop at ECS Tuning | ||||
| 14 | Fillister-head screw | M5X22 | 2 | 09/2000 | 51217049951 | $1.27 | Shop at ECS Tuning | |||
| 15 | Torx Bolt for aluminium | ISA | 2 | 09/2000 | 07147209542 | $0.56 | Shop at ECS Tuning | |||
| 16 | Door handle, inside left | 1 | 09/2000 | 51428200751 | $28.56 | Shop at ECS Tuning | ||||
| 16 | Door handle inner right | 1 | 09/2000 | 51428200752 | $28.56 | Shop at ECS Tuning | ||||
| 17 | Torx screw | M5 LINKSGEWINDE | 2 | 09/2000 | 51217049952 | $1.58 | Shop at ECS Tuning | |||
| 18 | Bracket f Bowden cable | 1 | 09/2000 | 51227033779 | $3.62 | Shop at ECS Tuning | ||||
| 19 | Circlip | 2 | 09/2000 | 51221817032 | $0.31 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 325i Door swivel handle, rr (from 09/00)?
- This technical diagram illustrates the Door swivel handle, rr (from 09/00) within the Bodywork group for the 3 Series E46 325i produced during 2001. It provides a detailed exploded view of the components, identifying key parts such as the door lock with motor actuator, left (Part #51227011245).
- Which models use the hardware listed in this Door swivel handle, rr (from 09/00)?
- The hardware and components featured in the Door swivel handle, rr (from 09/00) are specific to the 3 Series E46 325i produced during 2001. These technical specifications ensure that parts like the door lock with motor actuator, left (51227011245) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Door swivel handle, rr (from 09/00) assembly?
- Each item in the Door swivel handle, rr (from 09/00) corresponds to the numbered list below the illustration. For the 3 Series E46 325i, you can identify the door lock with motor actuator, left by locating its position on the schematic, which then links to the official BMW part number 51227011245 for the Bodywork section.
