Mounting parts for trunk floor panel for BMW 3 Series E46 320td (2004)

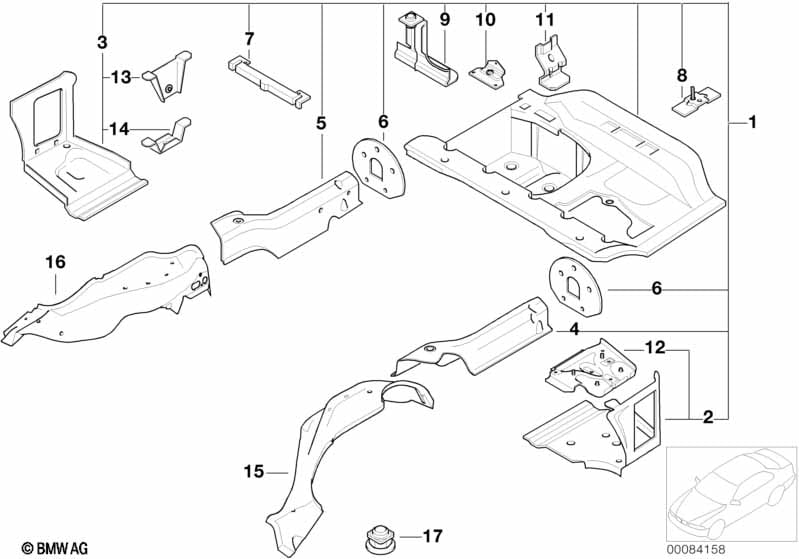

This Mounting parts for trunk floor panel technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk floor | 1 | 41127015869 | $341.50 | ENDED | Shop at ECS Tuning | ||||
| 02 | Mount, trunk floor, lateral left | 1 | 41127038063 | $44.92 | Shop at ECS Tuning | |||||
| 03 | Mount, trunk floor, lateral right | 1 | 41127038064 | $44.92 | Shop at ECS Tuning | |||||
| 04 | Rear left side member | 1 | 41117015859 | $112.72 | Shop at ECS Tuning | |||||
| 05 | Right rear side member | 1 | 41117015860 | $112.72 | Shop at ECS Tuning | |||||
| 06 | Left shock absorber support | 1 | 41117015863 | $2.72 | ENDED | Shop at ECS Tuning | ||||
| 06 | Right shock absorber support | 1 | 41117015864 | $2.72 | ENDED | Shop at ECS Tuning | ||||
| 08 | Rear car jack bracket | 1 | 41127015871 | $3.08 | Shop at ECS Tuning | |||||
| 09 | Battery carrier, front | 1 | 41127058087 | Shop at ECS Tuning | ||||||
| 10 | Battery carrier, rear | 1 | 41127058088 | Shop at ECS Tuning | ||||||
| 11 | Battery strip terminal | 1 | 41127058086 | Shop at ECS Tuning | ||||||
| 12 | REAR SILENCER BRACKET, rear | 1 | 41127016032 | $6.48 | Shop at ECS Tuning | |||||
| 13 | Holder,activat.carbon contain.,exterior | 1 | 41127015875 | $2.72 | ENDED | Shop at ECS Tuning | ||||
| 14 | Holder,activat.carbon contain.,interior | 1 | 41127015872 | $1.84 | ENDED | Shop at ECS Tuning | ||||
| 15 | Side member, front, left | 1 | 41117044253 | $112.72 | ENDED | Shop at ECS Tuning | ||||
| 16 | Side member, front, right | 1 | 41117044254 | $112.72 | ENDED | Shop at ECS Tuning | ||||
| 17 | Earth pin | M8X12 | X | 07147182215 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 320td Mounting parts for trunk floor panel?
- This technical diagram illustrates the Mounting parts for trunk floor panel within the Bodywork group for the 3 Series E46 320td produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Trunk floor (Part #41127015869).
- Which models use the hardware listed in this Mounting parts for trunk floor panel?
- The hardware and components featured in the Mounting parts for trunk floor panel are specific to the 3 Series E46 320td produced during 2004. These technical specifications ensure that parts like the Trunk floor (41127015869) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Mounting parts for trunk floor panel assembly?
- Each item in the Mounting parts for trunk floor panel corresponds to the numbered list below the illustration. For the 3 Series E46 320td, you can identify the Trunk floor by locating its position on the schematic, which then links to the official BMW part number 41127015869 for the Bodywork section.
