Single components for trunk lid for BMW 3 Series E46 325Ci (2006)

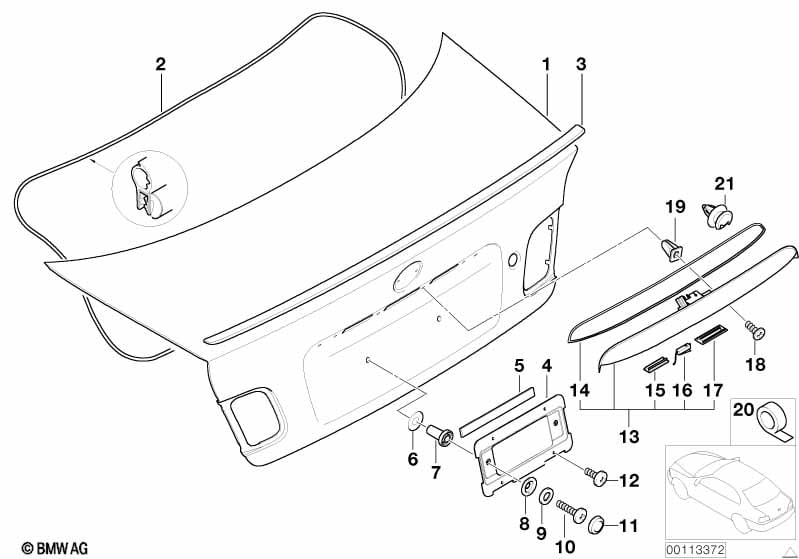

This Single components for trunk lid technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk lid | 1 | 41628262029 | $556.25 | Shop at ECS Tuning | |||||
| 02 | Trunk lid gasket | 1 | 51718227309 | $62.27 | Shop at ECS Tuning | |||||
| 04 | License plate holder | JAPAN | 1 | 51188253016 | $17.58 | Shop at ECS Tuning | ||||
| 05 | Adhesive tape | 95X12X4 MM | 2 | 51181944116 | $0.81 | Shop at ECS Tuning | ||||
| 06 | Sealing film | PUR, D=30MM | 2 | 51711922189 | $0.82 | Shop at ECS Tuning | ||||
| 07 | Plug-in nut | 2 | 51188242693 | $0.23 | Shop at ECS Tuning | |||||
| 08 | Shim | 1 | 51188240761 | $1.10 | Shop at ECS Tuning | |||||
| 09 | Washer | A6,4-ZNNIV SI | 2 | 07119904202 | Shop at ECS Tuning | |||||
| 10 | Fillister head self-tapping screw | ST4,8X16MM | 2 | 07143448498 | $0.18 | Shop at ECS Tuning | ||||
| 10 | Combi. fillister head self-tapping screw | ST4, 8X16MM | 2 | 51419143799 | $0.22 | Shop at ECS Tuning | ||||
| 11 | Covering cap | WEISS | 2 | 51181813017 | $0.21 | Shop at ECS Tuning | ||||
| 11 | Covering cap | SCHWARZ | 2 | 51181823474 | $0.21 | Shop at ECS Tuning | ||||
| 11 | Covering cap | DUNKELBLAU | 2 | 64111375497 | $0.20 | Shop at ECS Tuning | ||||
| 13 | Trunk lid grip with key button, painted | CODE - UNI/MET. | 1 | 51130403477 | ENDED | Shop at ECS Tuning | ||||
| 13 | Trunk lid grip with key button | GRUNDIERT | 1 | 51137170965 | $90.17 | Shop at ECS Tuning | ||||
| 13 | Trunk lid grip with key button | SCHWARZ | 1 | 51138231892 | $90.17 | Shop at ECS Tuning | ||||
| 14 | Gasket, trunk lid grip | 1 | 51138244337 | $18.17 | Shop at ECS Tuning | |||||
| 15 | Lens f registration plate illumination | 2 | 51138244336 | $2.16 | Shop at ECS Tuning | |||||
| 16 | Micro switch, trunk lid key button | 1 | 51138185792 | $38.91 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Shrinking hose | 6X45MM | 1 | 61135A4F528 | Shop at ECS Tuning | |||||
| -- | Cable connector | 0.2-0.5 MM² | 1 | 61138353746 | $0.77 | Shop at ECS Tuning | ||||
| 18 | Torx-bolt for plastic material | TS5X15 | 4 | 51137057671 | $0.59 | Shop at ECS Tuning | ||||
| 19 | Clip | GRAU | 2 | 07147141218 | $0.49 | Shop at ECS Tuning | ||||
| 19 | Expanding nut | 4 | 51127046911 | $0.48 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 325Ci Single components for trunk lid?
- This technical diagram illustrates the Single components for trunk lid within the Bodywork group for the 3 Series E46 325Ci produced during 2006. It provides a detailed exploded view of the components, identifying key parts such as the Trunk lid (Part #41628262029).
- Which models use the hardware listed in this Single components for trunk lid?
- The hardware and components featured in the Single components for trunk lid are specific to the 3 Series E46 325Ci produced during 2006. These technical specifications ensure that parts like the Trunk lid (41628262029) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Single components for trunk lid assembly?
- Each item in the Single components for trunk lid corresponds to the numbered list below the illustration. For the 3 Series E46 325Ci, you can identify the Trunk lid by locating its position on the schematic, which then links to the official BMW part number 41628262029 for the Bodywork section.
