Frame for BMW M1 E26 M1 (1981)

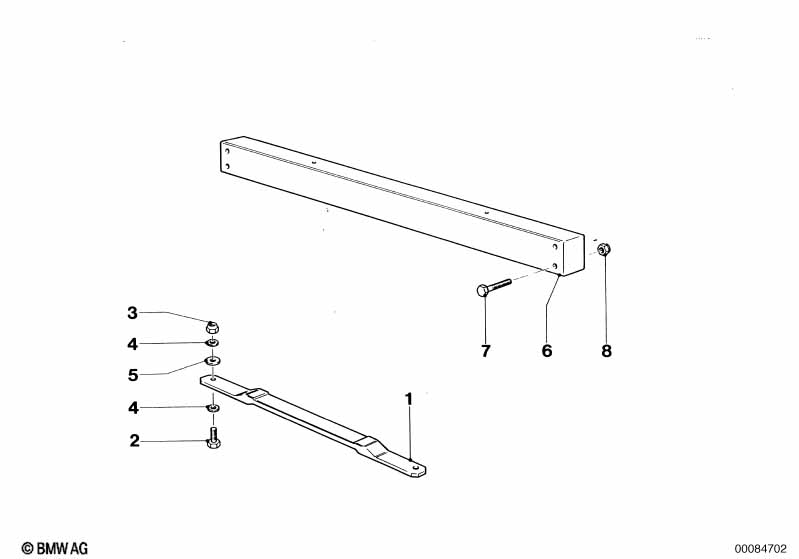

This Frame technical drawing provides a detailed breakdown of the assembly for the M1 E26 M1. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cross member | 1 | 46112160835 | ENDED | Shop at ECS Tuning | |||||
| 02 | Hex bolt | M8X20 | 2 | 07119913646 | $0.62 | ENDED | Shop at ECS Tuning | |||
| 03 | Self-locking hex nut | M8-8-ZNS3 | 2 | 07129904002 | $0.18 | Shop at ECS Tuning | ||||
| 04 | Washer | 8,4X16X1,6-ZNNV | 4 | 07119907030 | Shop at ECS Tuning | |||||
| 05 | Washer | 8,4X24X2-ZNS3 | 2 | 07119904164 | $0.40 | Shop at ECS Tuning | ||||
| 06 | Cross member | 1 | 46112161457 | $231.01 | Shop at ECS Tuning | |||||
| 07 | Hex bolt | M10X65 | 4 | 07119912666 | $1.18 | Shop at ECS Tuning | ||||
| 08 | Self-locking hex nut | M10-10 ZNS3 | 4 | 33326768900 | $0.78 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW M1 E26 M1 Frame?
- This technical diagram illustrates the Frame within the Bodywork group for the M1 E26 M1 produced during 1981. It provides a detailed exploded view of the components, identifying key parts such as the Cross member (Part #46112160835).
- Which models use the hardware listed in this Frame?
- The hardware and components featured in the Frame are specific to the M1 E26 M1 produced during 1981. These technical specifications ensure that parts like the Cross member (46112160835) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Frame assembly?
- Each item in the Frame corresponds to the numbered list below the illustration. For the M1 E26 M1, you can identify the Cross member by locating its position on the schematic, which then links to the official BMW part number 46112160835 for the Bodywork section.
