Single components for trunk lid for BMW 3 Series E46 320td

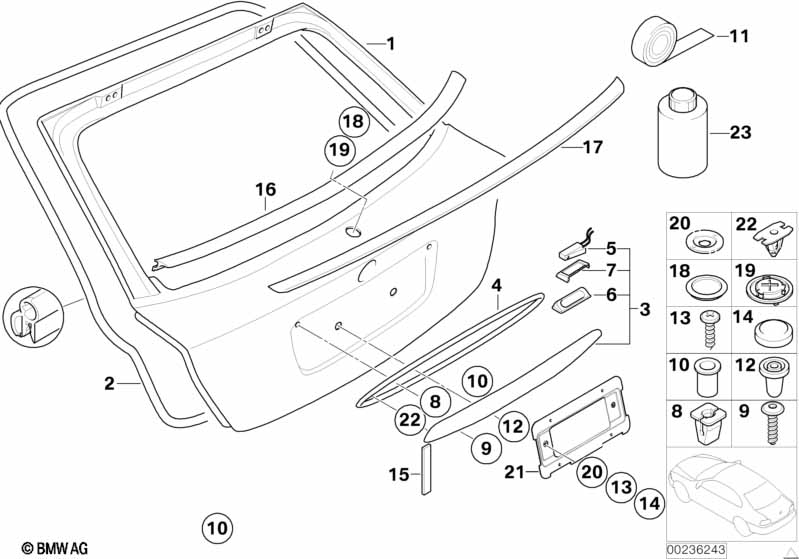

This Single components for trunk lid technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320td. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk lid | 1 | 03/2003 | 41627117996 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Badge | BMW Ø 74MM | 1 | 03/2003 | 51148219237 | $30.43 | Shop at ECS Tuning | |||
| Suitable for vehicles with and without REAR WINDOW WIPER |
||||||||||
| -- | Trunk lid grip with key button, painted | CODE - UNI/MET. | 1 | 03/2003 | 51130033299 | ENDED | Shop at ECS Tuning | |||
| Suitable for vehicles with and without REAR WINDOW WIPER |
||||||||||
| -- | Torx-bolt for plastic material | TS5X15 | 4 | 03/2003 | 51137057671 | $0.59 | Shop at ECS Tuning | |||
| Suitable for vehicles with and without REAR WINDOW WIPER |
||||||||||
| -- | Trunk lid grip with key button | SCHWARZ | 1 | 03/2003 | 51137126250 | Shop at ECS Tuning | ||||
| Suitable for vehicles with and without REAR WINDOW WIPER |
||||||||||
| -- | Trunk lid grip with key button | GRUNDIERT | 1 | 03/2003 | 51137170964 | Shop at ECS Tuning | ||||
| Suitable for vehicles with and without REAR WINDOW WIPER |
||||||||||
| -- | Expanding nut | 4 | 03/2003 | 51127046911 | $0.48 | Shop at ECS Tuning | ||||
| Suitable for vehicles with and without REAR WINDOW WIPER |
||||||||||
| 01 | Trunk lid | 1 | 03/2003 | 41627117996 | Shop at ECS Tuning | |||||
| Suitable for vehicles with and without REAR WINDOW WIPER |
||||||||||
| 02 | Trunk lid sealing | 1 | 51717067904 | Shop at ECS Tuning | ||||||
| 03 | Trunk lid grip with key button, painted | CODE - UNI/MET. | 1 | 03/2003 | 51130033297 | $328.10 | ENDED | Shop at ECS Tuning | ||
| 03 | Trunk lid grip with key button | GRUNDIERT | 1 | 03/2003 | 51137170966 | $90.17 | Shop at ECS Tuning | |||
| 03 | Trunk lid grip with key button | SCHWARZ | 1 | 03/2003 | 51137171699 | $90.17 | Shop at ECS Tuning | |||
| 03 | Trunk lid grip with key button, painted | CODE - UNI/MET. | 1 | 03/2003 | 51130033299 | ENDED | Shop at ECS Tuning | |||
| 03 | Trunk lid grip with key button | GRUNDIERT | 1 | 03/2003 | 51137170964 | Shop at ECS Tuning | ||||
| 04 | Gasket, trunk lid grip | 1 | 03/2003 | 51138236267 | $8.00 | Shop at ECS Tuning | ||||
| 05 | Micro switch, trunk lid key button | 1 | 51138185792 | $38.91 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Shrinking hose | 6X45MM | 2 | 61135A4F528 | Shop at ECS Tuning | |||||
| -- | Cable connector | 0.2-0.5 MM² | 2 | 61138353746 | $0.77 | Shop at ECS Tuning | ||||
| 06 | Plate | 1 | 03/2003 | 51138236268 | $2.78 | Shop at ECS Tuning | ||||
| 07 | Lens f registration plate illumination | 2 | 03/2003 | 51138236269 | $4.52 | Shop at ECS Tuning | ||||
| 07 | Lens f registration plate illumination | 2 | 03/2003 | 51137137408 | $6.45 | Shop at ECS Tuning | ||||
| 08 | Expanding nut | ST 4.8 | 4 | 03/2003 | 63121374075 | $0.23 | Shop at ECS Tuning | |||
| 08 | Expanding nut | 4 | 03/2003 | 51127046911 | $0.48 | Shop at ECS Tuning | ||||
| 09 | Torx-bolt for plastic material | TS5X15 | 4 | 51137057671 | $0.59 | Shop at ECS Tuning | ||||
| 10 | Grommet | 2 | 51148209932 | $0.22 | Shop at ECS Tuning | |||||
| 11 | Adhesive tape | 0,8X26X1400 | 1 | 51717901760 | Shop at ECS Tuning | |||||
| 12 | Plug-in nut | 2 | 51188242693 | $0.23 | Shop at ECS Tuning | |||||
| 13 | Fillister head self-tapping screw | ST4,8X16MM | 2 | 07142756133 | $0.29 | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 13 | Fillister head self-tapping screw | ST4,8X13MM | 2 | 07146982378 | $0.25 | Shop at ECS Tuning | ||||
| 14 | Covering cap | WEISS | 2 | 51181813017 | $0.21 | Shop at ECS Tuning | ||||
| 14 | Covering cap | SCHWARZ | 2 | 51181823474 | $0.21 | Shop at ECS Tuning | ||||
| 14 | Covering cap | DUNKELBLAU | 2 | 64111375497 | $0.20 | Shop at ECS Tuning | ||||
| 15 | Adhesive tape | 95X12X4 MM | 2 | 51181944116 | $0.81 | Shop at ECS Tuning | ||||
| 16 | Rear window cover | 1 | 51318252389 | $21.68 | Shop at ECS Tuning | |||||
| 17 | Rear spoiler | GRUNDIERT | 1 | 51717894366 | $167.40 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Activator 205 | 250ML | 1 | 83190030155 | Shop at ECS Tuning | |||||
| -- | Adhesive tape | 0,8X26X1400 | 1 | 51717901760 | Shop at ECS Tuning | |||||
| 17 | Painted rear spoiler | CODE - UNI/MET. | 1 | 51110028853 | $279.00 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Activator 205 | 250ML | 1 | 83190030155 | Shop at ECS Tuning | |||||
| When ordering indicate color code | ||||||||||
| -- | Adhesive tape | 0,8X26X1400 | 1 | 51717901760 | Shop at ECS Tuning | |||||
| When ordering indicate color code | ||||||||||
| For vehicles with Rear window wiper |
S315A=No |
|||||||||
| 18 | Plug | GRUNDIERT | 1 | 01/2002 | 61617079660 | Shop at ECS Tuning | ||||
| 18 | Plug | GRUNDIERT | 1 | 61617079660 | Shop at ECS Tuning | |||||
| 19 | Nut | 1 | 12/2004 | 61617074568 | Shop at ECS Tuning | |||||
| 19 | Nut | 1 | 61612409119 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 20 | Shim | 2 | 51188240761 | $1.10 | Shop at ECS Tuning | |||||
| 21 | License plate holder | JAPAN | 1 | 51188253016 | $17.58 | Shop at ECS Tuning | ||||
| 22 | Clip | GRAU | 2 | 03/2003 | 07147130781 | $1.00 | Shop at ECS Tuning | |||
| 23 | Activator 205 | 250ML | 1 | 83190030155 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 320td Single components for trunk lid?
- This technical diagram illustrates the Single components for trunk lid within the Bodywork group for the 3 Series E46 320td. It provides a detailed exploded view of the components, identifying key parts such as the Trunk lid (Part #41627117996).
- Which models use the hardware listed in this Single components for trunk lid?
- The hardware and components featured in the Single components for trunk lid are specific to the 3 Series E46 320td. These technical specifications ensure that parts like the Trunk lid (41627117996) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Single components for trunk lid assembly?
- Each item in the Single components for trunk lid corresponds to the numbered list below the illustration. For the 3 Series E46 320td, you can identify the Trunk lid by locating its position on the schematic, which then links to the official BMW part number 41627117996 for the Bodywork section.
