"Clubsport" custom rear wing for BMW 3 Series E46 330Ci

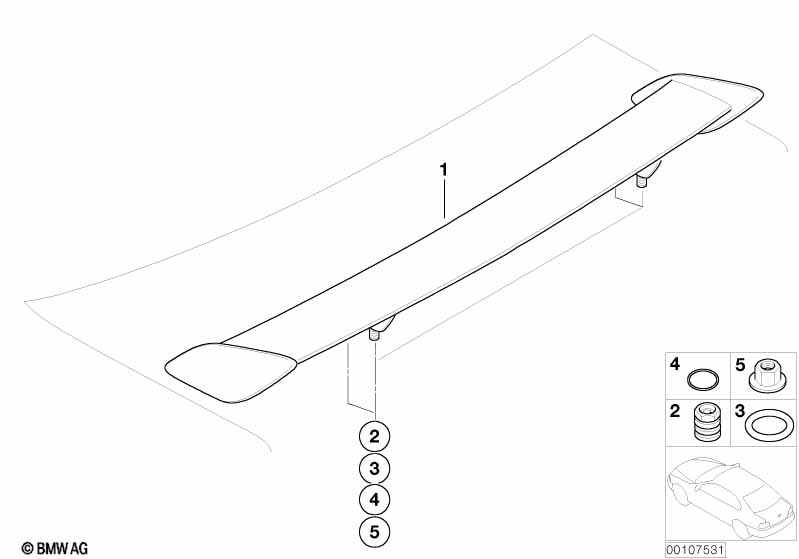

This "Clubsport" custom rear wing technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330Ci. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with M Rear spoiler or Individual series "Clubsport" |
S754A=Yes S768A=Yes |
|||||||||
| 01 | M spoiler rear, primed | CLUBSPORT | 1 | 03/2002 | 51717895560 | $702.00 | ENDED | Shop at ECS Tuning | ||
| 02 | Spacer | 4 | 03/2002 | 51717895436 | $8.79 | Shop at ECS Tuning | ||||
| 03 | Gasket ring | 8X3 | 4 | 03/2002 | 07147110858 | $0.53 | Shop at ECS Tuning | |||
| 04 | Gasket ring | 4X2 | 4 | 03/2002 | 07147110859 | $0.38 | Shop at ECS Tuning | |||
| 05 | Hex nut | M5 | 4 | 03/2002 | 07129901767 | $0.62 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
