Engine hood/mounting parts for BMW 5 Series E60 530xi (2007)

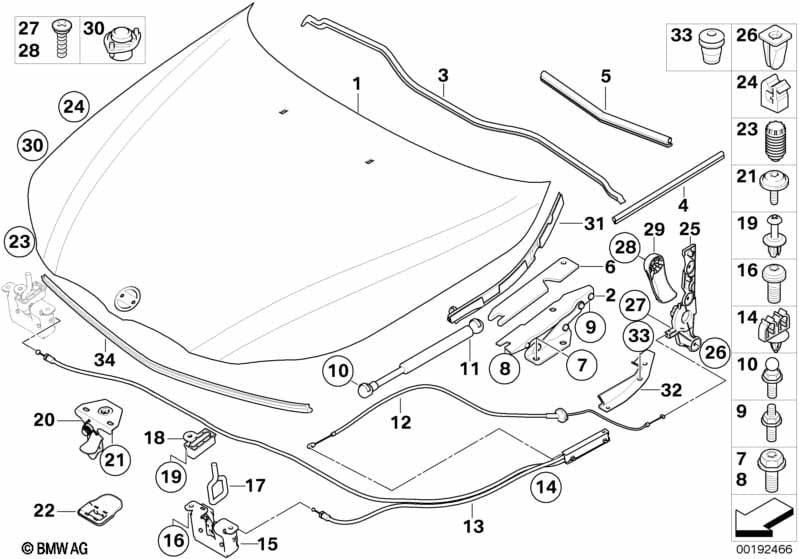

This Engine hood/mounting parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hood | 1 | 41617111385 | $1209.71 | Shop at ECS Tuning | |||||
| 02 | Left engine hood hinge | 1 | 41617120275 | $46.82 | Shop at ECS Tuning | |||||
| 02 | Right engine hood hinge | 1 | 41617120276 | $46.82 | Shop at ECS Tuning | |||||
| 03 | Sealing, hood, center | 1 | 51767034163 | $33.38 | Shop at ECS Tuning | |||||
| 04 | Lateral engine hood sealing | 2 | 51767034165 | $5.51 | Shop at ECS Tuning | |||||
| 06 | Spacer | 1,0MM | X | 09/2007 | 41617035250 | $3.07 | ENDED | Shop at ECS Tuning | ||
| 06 | Spacer | 1,5MM | X | 09/2007 | 41617116075 | $2.98 | ENDED | Shop at ECS Tuning | ||
| 06 | Spacer | 1,0MM | X | 41617194842 | $4.40 | Shop at ECS Tuning | ||||
| 06 | Spacer | 1,5MM | X | 41617194843 | $2.67 | Shop at ECS Tuning | ||||
| 07 | Hex bolt with washer | M8X24 | 3 | 07149112450 | Shop at ECS Tuning | |||||
| 08 | Hex bolt with washer | M8X24 | 4 | 07149112450 | Shop at ECS Tuning | |||||
| 09 | Earth pin | M8X20/M6X11 | 1 | 07147145080 | $1.46 | Shop at ECS Tuning | ||||
| 10 | Ball pin | M8X24 | 2 | 07147114948 | $1.89 | Shop at ECS Tuning | ||||
| 11 | Gas pressurized spring, hood | 330N | 2 | 51237008745 | $29.15 | Shop at ECS Tuning | ||||
| 12 | Bowden cable, rear | 1 | 07/2006 | 51237184451 | $15.47 | Shop at ECS Tuning | ||||
| 13 | Instrument cluster Bowden cable | 1 | 07/2006 | 51237184454 | $27.48 | Shop at ECS Tuning | ||||
| 14 | Cable holder | 1 | 33181181218 | $1.10 | Shop at ECS Tuning | |||||
| 15 | Lock f hood | 2 | 51237008755 | $72.30 | +core | Shop at ECS Tuning | ||||
| 16 | Torx-bolt with washer | M6X12 | 4 | 07146985055 | $0.38 | Shop at ECS Tuning | ||||
| 17 | Catch bracket | 2 | 51237008756 | $5.93 | Shop at ECS Tuning | |||||
| 18 | Twist protection | 2 | 51237002012 | $4.23 | Shop at ECS Tuning | |||||
| 19 | Expanding rivet | 2 | 51168197908 | $0.37 | Shop at ECS Tuning | |||||
| 20 | Hood catch | 1 | 51237034256 | $23.12 | +core | Shop at ECS Tuning | ||||
| 21 | Torx-bolt with washer | 2 | 51233447111 | $1.14 | Shop at ECS Tuning | |||||
| 22 | Hood catch end support | 1 | 51237057637 | $2.36 | Shop at ECS Tuning | |||||
| 23 | Stop buffer | 2 | 51248254063 | $1.35 | Shop at ECS Tuning | |||||
| 24 | Bump stop | 2 | 51238247699 | $1.02 | Shop at ECS Tuning | |||||
| 25 | Bracket OBD/Hood release | 1 | 12/2007 | 51437052579 | $17.20 | ENDED | Shop at ECS Tuning | |||
| 25 | Bracket OBD/Hood release | 1 | 51439143458 | $18.31 | Shop at ECS Tuning | |||||
| 26 | Expanding nut | 7X7 MM | 3 | 65138387414 | $0.47 | Shop at ECS Tuning | ||||
| 27 | Phillips screw f plastic material | TS 5X13 | 3 | 07146959892 | $0.30 | Shop at ECS Tuning | ||||
| 28 | Phillips screw f plastic material | TS 5X13 | 1 | 07146959892 | $0.30 | Shop at ECS Tuning | ||||
| 29 | Lever f engine hood mechanism | 1 | 51437008933 | $3.61 | Shop at ECS Tuning | |||||
| 31 | Sealing strip, left | 1 | 51767138583 | $13.30 | Shop at ECS Tuning | |||||
| 31 | Sealing strip, right | 1 | 51767138584 | $13.30 | Shop at ECS Tuning | |||||
| 32 | Cover, water gutter, front, left | 1 | 51717034159 | $5.57 | Shop at ECS Tuning | |||||
| 32 | Cover, water gutter, front, right | 1 | 51717034160 | $5.57 | Shop at ECS Tuning | |||||
| 33 | Clamp | 4 | 51711916039 | $0.35 | Shop at ECS Tuning | |||||
| 34 | Supporting ledge | 1 | 51117063835 | $14.06 | ENDED | Shop at ECS Tuning |
