Front door-hinge/door brake for BMW 5 Series E60 525i (2007)

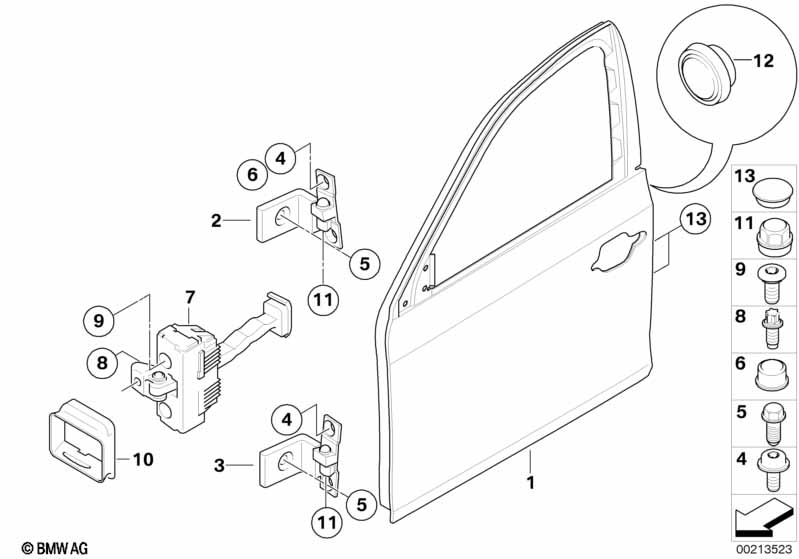

This Front door-hinge/door brake technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door front left | 1 | 03/2007 | 41515A2A3A5 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 01 | Door front right | 1 | 03/2007 | 41515A2A3A6 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Sealing film | PUR, D=30MM | 1 | 03/2007 | 51711922189 | $0.82 | Shop at ECS Tuning | |||
| -- | Blind rivet nut with collar | M5 | 3 | 03/2007 | 07147127002 | $1.53 | Shop at ECS Tuning | |||
| 02 | Left upper front door hinge | 1 | 41517176847 | $35.79 | Shop at ECS Tuning | |||||
| 02 | Right upper front door hinge | 1 | 41517176848 | $35.79 | Shop at ECS Tuning | |||||
| 03 | Left lower front door hinge | 1 | 41517176849 | $35.79 | Shop at ECS Tuning | |||||
| 03 | Right lower front door hinge | 1 | 41517176850 | $35.79 | Shop at ECS Tuning | |||||
| 04 | Torx-countersunk head screw | ISA M8X28 | 8 | 07147184164 | $0.65 | Shop at ECS Tuning | ||||
| 05 | Hexagon screw with taper | M12X39 | 4 | 01/2018 | 07147184165 | $1.55 | ENDED | Shop at ECS Tuning | ||
| 05 | Hexagon screw with taper | M12X35 | 4 | 07148499258 | Shop at ECS Tuning | |||||
| 06 | Protection cap | SCHWARZ | 4 | 51218177670 | $0.33 | Shop at ECS Tuning | ||||
| 07 | Front door brake | 2 | 07/2007 | 51217176804 | $41.45 | Shop at ECS Tuning | ||||
| 08 | Torx-bolt with washer | ASA M8X22 | 2 | 07147248303 | $0.60 | Shop at ECS Tuning | ||||
| 09 | Torx-bolt with washer | ISA M6X10 | 4 | 07147184168 | $0.62 | Shop at ECS Tuning | ||||
| 10 | Door brake gasket | 2 | 51217033613 | $10.95 | Shop at ECS Tuning | |||||
| 11 | Cap nut | M8 | 4 | 51217040551 | $1.66 | Shop at ECS Tuning | ||||
| 12 | Reflector | RUBIN | 2 | 51717161921 | $3.27 | Shop at ECS Tuning | ||||
| 13 | Blind plug | D=15MM | 4 | 51718170298 | $0.23 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
