Rear door - hinge/door brake for BMW 5 Series E60 LCI 520i (2009)

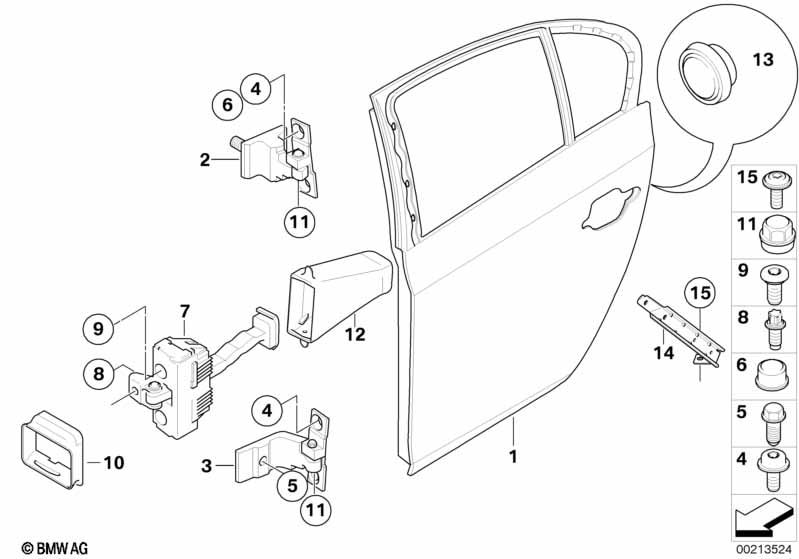

This Rear door - hinge/door brake technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door rear left | 1 | 41009631831 | Shop at ECS Tuning | ||||||
| 01 | Door rear right | 1 | 41009631832 | Shop at ECS Tuning | ||||||
| Attention! Only replace entire door hinges! |
||||||||||
| 02 | Left upper rear door hinge | 1 | 41527201303 | $35.79 | Shop at ECS Tuning | |||||
| 02 | Right upper rear door hinge | 1 | 41527201304 | $35.79 | Shop at ECS Tuning | |||||
| 03 | Left lower rear door hinge | 1 | 41527200245 | $35.14 | Shop at ECS Tuning | |||||
| 03 | Right lower rear door hinge | 1 | 41527200246 | $35.14 | Shop at ECS Tuning | |||||
| 04 | Torx-countersunk head screw | ISA M8X28 | 8 | 07147184164 | $0.65 | Shop at ECS Tuning | ||||
| 05 | Hexagon screw with taper | M12X39 | 4 | 01/2018 | 07147184165 | $1.55 | ENDED | Shop at ECS Tuning | ||
| 05 | Hexagon screw with taper | M12X35 | 4 | 07148499258 | Shop at ECS Tuning | |||||
| 06 | Protection cap | SCHWARZ | 4 | 51218177670 | $0.33 | Shop at ECS Tuning | ||||
| 07 | Rear door brake | 2 | 51227176805 | $36.05 | ENDED | Shop at ECS Tuning | ||||
| 08 | Torx-bolt with washer | ASA M8X22 | 2 | 07147248303 | $0.60 | Shop at ECS Tuning | ||||
| 09 | Torx-bolt with washer | ISA M6X10 | 4 | 07147184168 | $0.62 | Shop at ECS Tuning | ||||
| 10 | Door brake gasket | 2 | 51217033613 | $10.95 | Shop at ECS Tuning | |||||
| 11 | Cap nut | M8 | 2 | 51217040551 | $1.66 | Shop at ECS Tuning | ||||
| 12 | Grommet, door brake, rear | 2 | 51227033623 | $6.46 | Shop at ECS Tuning | |||||
| 13 | Reflector | RUBIN | 2 | 51717161921 | $3.27 | Shop at ECS Tuning | ||||
| 14 | Door reinforcement, rear left | 1 | 51717151863 | $8.10 | Shop at ECS Tuning | |||||
| 14 | Door reinforcement, rear right | 1 | 51717151864 | $8.10 | Shop at ECS Tuning | |||||
| 15 | Torx screw with collar | M8X20 T30 | 4 | 07147124309 | $0.80 | Shop at ECS Tuning | ||||
