Door weatherstrip front for BMW 5 Series E60 LCI 523i (2008)

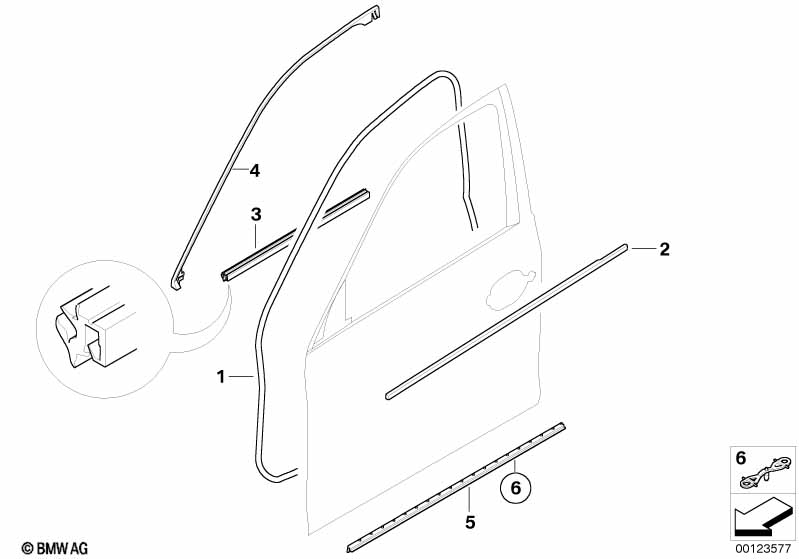

This Door weatherstrip front technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door weatherstrip front | 2 | 51217033787 | $109.34 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Schablone Türe links | E60/61 | 1 | 01297154847 | Shop at ECS Tuning | |||||
| -- | Schablone Türe rechts | TÜRE E60/61 | 1 | 01297154848 | Shop at ECS Tuning | |||||
| 02 | Channel cover,exterior,door, front left | CHROM | 1 | 09/2009 | 51217057435 | $61.97 | ENDED | Shop at ECS Tuning | ||
| 02 | Channel cover,exterior,door, front right | CHROM | 1 | 09/2009 | 51217057436 | $61.97 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Shadow-Line |
S339A=Yes |
|||||||||
| 02 | Channel cover,exterior,door, front left | SCHWARZ | 1 | 09/2009 | 51217135161 | $28.40 | ENDED | Shop at ECS Tuning | ||
| 02 | Channel cover,exterior,door, front right | SCHWARZ | 1 | 09/2009 | 51217135162 | $28.40 | ENDED | Shop at ECS Tuning | ||
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 02 | Channel cover,exterior,door, front left | GLANZSCHWARZ | 1 | 09/2009 | 51217897663 | $37.50 | ENDED | Shop at ECS Tuning | ||
| 02 | Channel cover,exterior,door, front right | GLANZSCHWARZ | 1 | 09/2009 | 51217897664 | $37.50 | ENDED | Shop at ECS Tuning | ||
| 03 | Channel sealing,inside,door, front left | 1 | 51217033785 | $8.25 | Shop at ECS Tuning | |||||
| 03 | Channel sealing,inside,door, front right | 1 | 51217033786 | $8.25 | ENDED | Shop at ECS Tuning | ||||
| 04 | Seal, door seam, roof front left | 1 | 51217057507 | $65.61 | Shop at ECS Tuning | |||||
| 04 | Seal, door seam, roof front right | 1 | 51217057508 | $65.61 | Shop at ECS Tuning | |||||
| 05 | Gasket, door joint, bottom front left | 1 | 51217033789 | $21.88 | ENDED | Shop at ECS Tuning | ||||
| 05 | Gasket, door joint, bottom front right | 1 | 51217033790 | $21.88 | Shop at ECS Tuning | |||||
| 06 | Clip | X | 51210302855 | $2.29 | Shop at ECS Tuning | |||||
| 07 | Schablone Türe links | E60/61 | 1 | 01297154847 | Shop at ECS Tuning | |||||
| 07 | Schablone Türe rechts | TÜRE E60/61 | 1 | 01297154848 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
