Door weatherstrip rear for BMW 5 Series E60 525xi (2007)

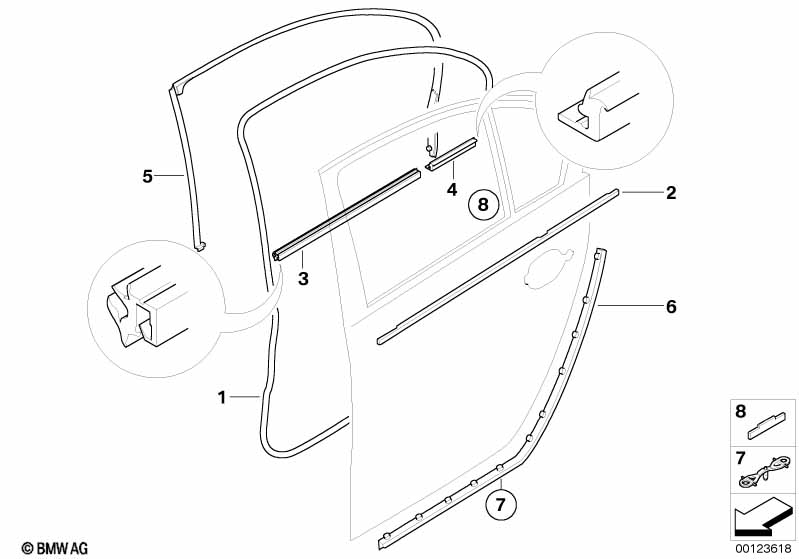

This Door weatherstrip rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door weatherstrip rear | 2 | 51227033795 | $109.34 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Schablone Türe links | E60/61 | 1 | 01297154847 | Shop at ECS Tuning | |||||
| -- | Schablone Türe rechts | TÜRE E60/61 | 1 | 01297154848 | Shop at ECS Tuning | |||||
| 02 | Outer weatherstrip, rear left door | CHROM | 1 | 51227057493 | $61.97 | Shop at ECS Tuning | ||||
| 02 | Window well strip, outer, door, rear rgt | CHROM | 1 | 51227057494 | $61.97 | Shop at ECS Tuning | ||||
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 02 | Outer weatherstrip, rear left door | GLANZSCHWARZ | 1 | 51227897665 | $37.50 | Shop at ECS Tuning | ||||
| 02 | Window well strip, outer, door, rear rgt | GLANZSCHWARZ | 1 | 51227897666 | $37.50 | Shop at ECS Tuning | ||||
| For vehicles with Shadow-Line |
S339A=Yes |
|||||||||
| 02 | Outer weatherstrip, rear left door | SCHWARZ | 1 | 51227135163 | $32.12 | Shop at ECS Tuning | ||||
| 02 | Window well strip, outer, door, rear rgt | SCHWARZ | 1 | 51227135164 | $32.12 | Shop at ECS Tuning | ||||
| 03 | Inner weatherstrip, rear left door | 1 | 51227034307 | $14.00 | Shop at ECS Tuning | |||||
| 03 | Inner weatherstrip, rear right door | 1 | 51227034308 | $14.00 | Shop at ECS Tuning | |||||
| 04 | Inner left window channel cover | 1 | 51227049437 | $14.00 | Shop at ECS Tuning | |||||
| 04 | Inner right window channel cover | 1 | 51227049438 | $14.00 | Shop at ECS Tuning | |||||
| 05 | Gasket, door joint, roof, door rear left | 1 | 51227057509 | $65.61 | Shop at ECS Tuning | |||||
| 05 | Gasket, door joint, roof, door rear rght | 1 | 51227057510 | $65.61 | Shop at ECS Tuning | |||||
| 06 | Gasket, door joint, bottom rear left | 1 | 51227033797 | $21.88 | Shop at ECS Tuning | |||||
| 06 | Gasket, door joint, bottom rear right | 1 | 51227033798 | $21.88 | ENDED | Shop at ECS Tuning | ||||
| 07 | Clip | X | 51210302855 | $2.29 | Shop at ECS Tuning | |||||
| 08 | Seal, capping strip | 2 | 51228208769 | $2.09 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
