Fill-in flap for BMW 5 Series E60 LCI 523Li (2009)

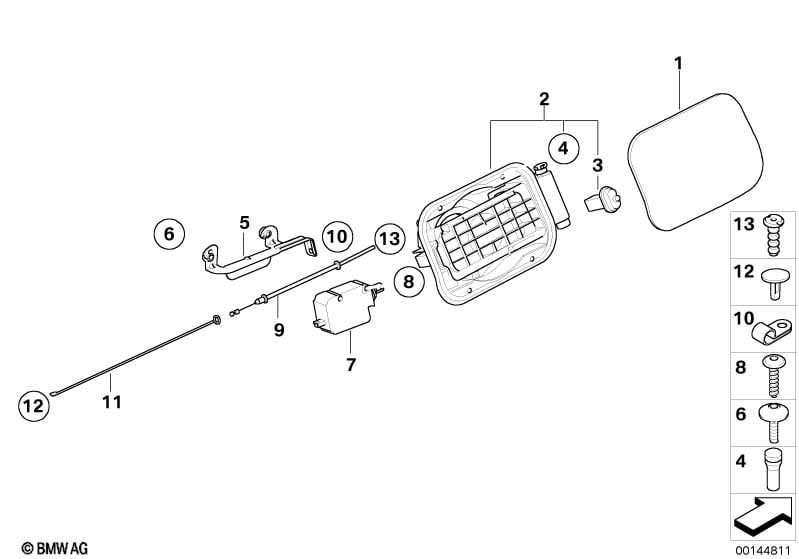

This Fill-in flap technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 523Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fill-in flap, primed | 1 | 51177177828 | ENDED | Shop at ECS Tuning | |||||
| 02 | Cover pot | 1 | 51177183712 | $46.62 | Shop at ECS Tuning | |||||
| 03 | Buffer stop with ejector | 1 | 51178228939 | $7.63 | Shop at ECS Tuning | |||||
| 04 | Plug | 4 | 51177044256 | $1.02 | Shop at ECS Tuning | |||||
| 05 | Support, centr.lock.syst.,fill-in flap | 1 | 51177072202 | $3.55 | Shop at ECS Tuning | |||||
| 06 | Torx bolt | M6X12 | 2 | 07147154224 | $0.32 | Shop at ECS Tuning | ||||
| 07 | Filler flap actuator | 1 | 09/2006 | 67116985878 | $57.47 | Shop at ECS Tuning | ||||
| 08 | Torx-bolt for plastic material | L=16MM | 2 | 07146958583 | $0.25 | Shop at ECS Tuning | ||||
| 09 | Bowden cable, filler flap | 1 | 51257066025 | $9.77 | Shop at ECS Tuning | |||||
| 10 | Clamp | 1 | 52101919476 | $0.67 | Shop at ECS Tuning | |||||
| 11 | Pulling strip f emergency mechanism | 1 | 51258234140 | $1.23 | Shop at ECS Tuning | |||||
| 12 | Emergency mechanism | 1 | 51258234143 | $0.93 | Shop at ECS Tuning | |||||
| 13 | Rubber grommet | 1 | 51257075026 | $3.48 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
