Rear wheelhouse/floor parts for BMW 5 Series E60 M5 (2009)

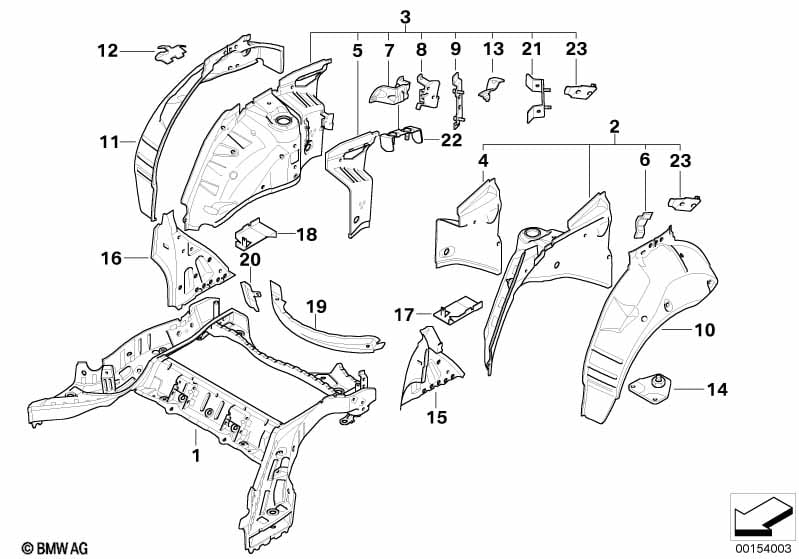

This Rear wheelhouse/floor parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear axle carrier | 1 | 41117111237 | $822.41 | Shop at ECS Tuning | |||||
| 02 | Rear left wheelhouse, inner half | 1 | 41147111239 | $340.81 | Shop at ECS Tuning | |||||
| 03 | Rear right wheelhouse, inner half | 1 | 41147111240 | $340.81 | ENDED | Shop at ECS Tuning | ||||
| 04 | Section of left rear wheel housing | 1 | 41147111251 | $103.27 | ENDED | Shop at ECS Tuning | ||||
| 05 | Section of right rear wheel housing | 1 | 41147111252 | $103.27 | Shop at ECS Tuning | |||||
| 06 | Audio universal bracket | 3 | 41147176125 | $3.37 | Shop at ECS Tuning | |||||
| 07 | Holder,activat.carbon contain.,interior | 1 | 41147176124 | $3.95 | Shop at ECS Tuning | |||||
| 08 | Trim panel bracket | 1 | 41247111254 | $2.97 | Shop at ECS Tuning | |||||
| 09 | Bracket, control unit | 1 | 41127176127 | $3.42 | Shop at ECS Tuning | |||||
| 10 | Wheel arch outer rear left | 1 | 41147900483 | $170.62 | Shop at ECS Tuning | |||||
| 11 | Wheel arch outer rear right | 1 | 41217900484 | $170.62 | Shop at ECS Tuning | |||||
| 12 | Holder,activat.carbon contain.,exterior | 1 | 41217061920 | $4.25 | ENDED | Shop at ECS Tuning | ||||
| 14 | Earth pin | M8X12 | X | 07147182215 | Shop at ECS Tuning | |||||
| 14 | Earth pin | M6X12 | X | 41118367249 | $1.85 | ENDED | Shop at ECS Tuning | |||
| 14 | Earth pin | M6X12 | X | 41248185432 | Shop at ECS Tuning | |||||
| 19 | Covering plate | 1 | 41118045343 | Shop at ECS Tuning |
