Side panel/tail trim for BMW 5 Series E60 LCI 530Li (2009)

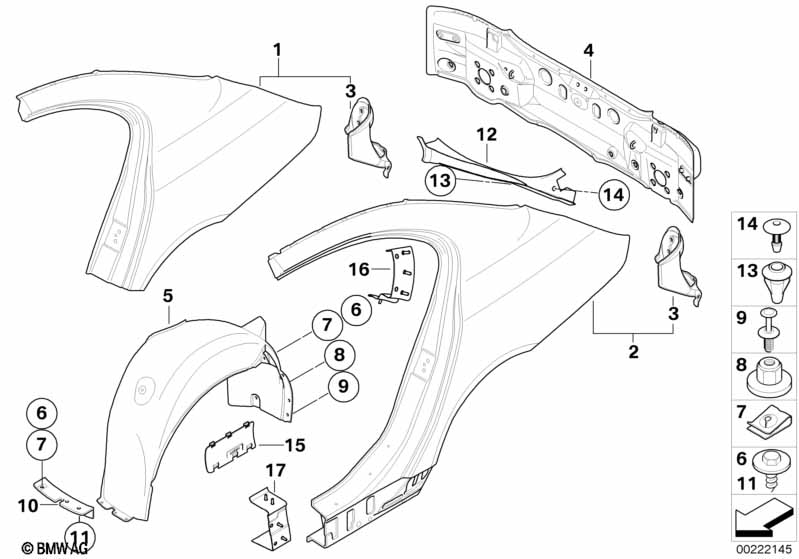

This Side panel/tail trim technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 530Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left rear side panel | 1 | 41217182569 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 29 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 1 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Punch rivet N4 | 30 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Positioning aid T-bolt | 1 | 41212460164 | Shop at ECS Tuning | ||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | Plastic capnut with washer | D=22MM | 10 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| -- | Reinforcement plate, rocker panel | 1 | 41217275567 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, C-pillar, left | 1 | 41217275581 | Shop at ECS Tuning | ||||||
| -- | T-welding stud | L=5,4MM | 10 | 41318412638 | Shop at ECS Tuning | |||||
| 01 | Right rear side panel | 1 | 41217182570 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 29 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 1 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Punch rivet N4 | 30 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Positioning aid T-bolt | 1 | 41212460164 | Shop at ECS Tuning | ||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | Plastic capnut with washer | D=22MM | 10 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| -- | Reinforcement plate, rocker panel | 1 | 41217275567 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, C-pillar, right | 1 | 41217275596 | Shop at ECS Tuning | ||||||
| -- | T-welding stud | L=5,4MM | 10 | 41318412638 | Shop at ECS Tuning | |||||
| Performed using adhesive bonding/ riveting repair method. |
||||||||||
| 02 | Left rear side panel | 1 | 41217182569 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 29 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 1 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Punch rivet N4 | 30 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Positioning aid T-bolt | 1 | 41212460164 | Shop at ECS Tuning | ||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | Plastic capnut with washer | D=22MM | 10 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| -- | Reinforcement plate, rocker panel | 1 | 41217275567 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, C-pillar, left | 1 | 41217275581 | Shop at ECS Tuning | ||||||
| -- | T-welding stud | L=5,4MM | 10 | 41318412638 | Shop at ECS Tuning | |||||
| 02 | Right rear side panel | 1 | 41217182570 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 29 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 1 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Punch rivet N4 | 30 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Positioning aid T-bolt | 1 | 41212460164 | Shop at ECS Tuning | ||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | Plastic capnut with washer | D=22MM | 10 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| -- | Reinforcement plate, rocker panel | 1 | 41217275567 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, C-pillar, right | 1 | 41217275596 | Shop at ECS Tuning | ||||||
| -- | T-welding stud | L=5,4MM | 10 | 41318412638 | Shop at ECS Tuning | |||||
| 03 | Rear lights cup, left | 1 | 41217135193 | $17.43 | Shop at ECS Tuning | |||||
| 03 | Rear lights cup, right | 1 | 41217135194 | $17.43 | Shop at ECS Tuning | |||||
| Performed using adhesive bonding/ riveting repair method. |
||||||||||
| 04 | Complete tail trim | 1 | 41217111263 | $382.02 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 19 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 2 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Punch rivet N4 | 10 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| 05 | Cover, wheel housing, rear left | 1 | 51717033751 | $75.25 | ENDED | Shop at ECS Tuning | ||||
| 05 | Cover, wheel housing, rear right | 1 | 51717033752 | $75.25 | Shop at ECS Tuning | |||||
| 06 | Hex head screw with washer | ST4,8X16MM | 9 | 07147129160 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Body nut | ST4,8-9-ZNS3 | 9 | 07129904150 | $0.25 | Shop at ECS Tuning | ||||
| 08 | Plastic capnut with washer | D=18MM | 8 | 09/2010 | 51161943122 | $0.39 | Shop at ECS Tuning | |||
| 08 | Plastic nut for coarse threaded pin | M6 | 8 | 07147336362 | Shop at ECS Tuning | |||||
| 09 | Expanding rivet | D = 8MM | 4 | 51471911992 | $0.40 | Shop at ECS Tuning | ||||
| 10 | Deflector lip left | 1 | 51717041625 | $4.44 | Shop at ECS Tuning | |||||
| 10 | Deflector lip right | 1 | 51717041626 | $4.44 | Shop at ECS Tuning | |||||
| 11 | Hex head screw | ST 4,8X18 SW8 | 4 | 07147129161 | $0.25 | Shop at ECS Tuning | ||||
| 12 | Cover, water gutter, rear, left | 1 | 51717124407 | $5.57 | Shop at ECS Tuning | |||||
| 12 | Cover, water gutter, rear, right | 1 | 51717124408 | $5.57 | Shop at ECS Tuning | |||||
| 13 | Clip, bottom part | 4 | 51717154239 | $0.79 | Shop at ECS Tuning | |||||
| 14 | Clip, upper part | 4 | 51717048316 | $1.45 | Shop at ECS Tuning | |||||
| 15 | Cover for ABS plug box | 2 | 51717143261 | $4.70 | Shop at ECS Tuning | |||||
| 16 | Reinforcement plate, C-pillar, left | 1 | 41217275581 | Shop at ECS Tuning | ||||||
| 16 | Reinforcement plate, C-pillar, right | 1 | 41217275596 | Shop at ECS Tuning | ||||||
| 17 | Reinforcement plate, rocker panel | 2 | 41217275567 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
