Body-side frame for BMW 6 Series E63 M6 (2010)

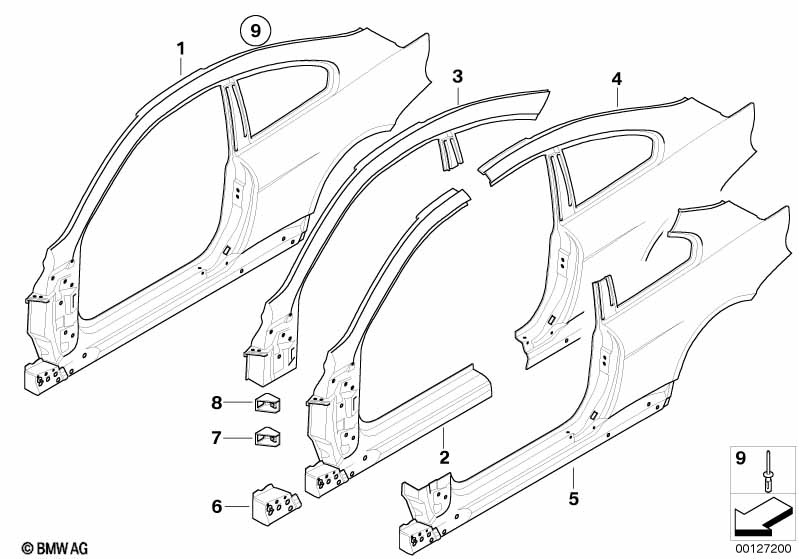

This Body-side frame technical drawing provides a detailed breakdown of the assembly for the 6 Series E63 M6. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Body-side frame left | 1 | 41217120037 | $1222.00 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| 01 | Body-side frame right | 1 | 41217120038 | $1222.00 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| 02 | Left exterior column A | 1 | 41217120057 | $727.57 | ENDED | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| 02 | Column A exterior right | 1 | 41217120058 | $727.57 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| 03 | Roof frame left | 1 | 41217120061 | $592.45 | ENDED | Shop at ECS Tuning | ||||
| 03 | Right roof frame | 1 | 41217120062 | $592.45 | ENDED | Shop at ECS Tuning | ||||
| 04 | Left rear side panel | 1 | 41217120059 | $777.05 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| 04 | Right rear side panel | 1 | 41217120060 | $777.05 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| 05 | Column B with left rocker panel | 1 | 41217120063 | $856.10 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| 05 | Column B with right rocker panel | 1 | 41217120064 | $856.10 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| 06 | Crash box, left | 1 | 41217120047 | $96.10 | Shop at ECS Tuning | |||||
| 06 | Crash box, right | 1 | 41217120048 | $96.10 | Shop at ECS Tuning | |||||
| 07 | Bracket, side panel, top | 2 | 41217120045 | $16.91 | ENDED | Shop at ECS Tuning | ||||
| 08 | Bracket, side panel, center | 2 | 41217120043 | $17.22 | ENDED | Shop at ECS Tuning | ||||
| Material thickness / clamping area 0,8 - 2,5mm |
||||||||||
| 09 | Repair rivet for T-bolt | 2,4X5MM | X | 07148497787 | ENDED | Shop at ECS Tuning | ||||
| Material thickness / clamping area 2,5 - 6,0mm |
||||||||||
| 09 | Repair rivet for T-bolt | 2,4X8,5MM | X | 07148497788 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E63 M6 Body-side frame?
- This technical diagram illustrates the Body-side frame within the Bodywork group for the 6 Series E63 M6 produced during 2010. It provides a detailed exploded view of the components, identifying key parts such as the Body-side frame left (Part #41217120037).
- Which models use the hardware listed in this Body-side frame?
- The hardware and components featured in the Body-side frame are specific to the 6 Series E63 M6 produced during 2010. These technical specifications ensure that parts like the Body-side frame left (41217120037) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Body-side frame assembly?
- Each item in the Body-side frame corresponds to the numbered list below the illustration. For the 6 Series E63 M6, you can identify the Body-side frame left by locating its position on the schematic, which then links to the official BMW part number 41217120037 for the Bodywork section.
