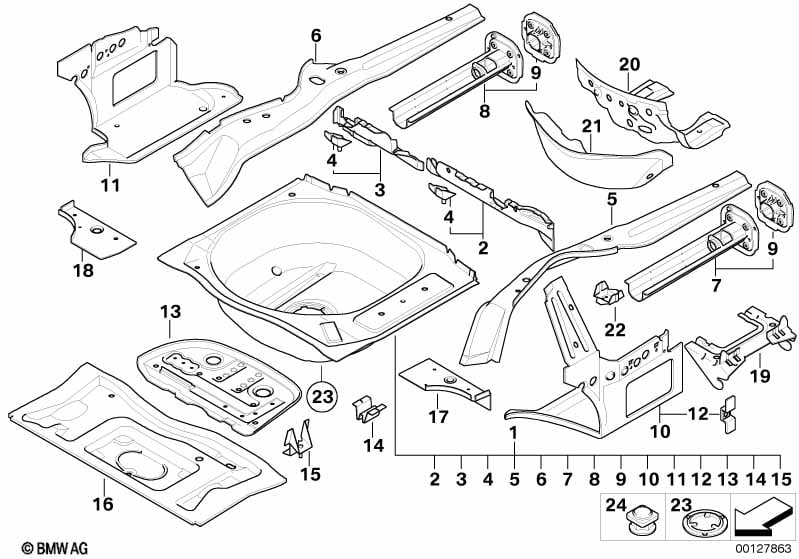

Mounting parts for trunk floor panel for BMW 6 Series E64 LCI 650i (2010)
This Mounting parts for trunk floor panel technical drawing provides a detailed breakdown of the assembly for the 6 Series E64 LCI 650i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk floor | 1 | 41117125159 | $996.76 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Bracket, vibration absorber | 2 | 41147135452 | $86.41 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Mount, tension strut | 1 | 41127135444 | $56.68 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Reinforcement floor panel trunk | 1 | 41127135454 | $99.68 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| 02 | Cross member, trunk floor, left | 1 | 41127125169 | $63.92 | Shop at ECS Tuning | |||||
| 03 | Cross member, trunk floor, right | 1 | 41127125170 | $63.92 | Shop at ECS Tuning | |||||
| 04 | Mounting, rear silencer | 4 | 41127111217 | $7.87 | Shop at ECS Tuning | |||||
| 05 | Rear left side member | 1 | 41117125161 | $166.57 | Shop at ECS Tuning | |||||
| 06 | Right rear side member | 1 | 41117125162 | $166.57 | Shop at ECS Tuning | |||||
| 07 | Support for frame side member, left | 1 | 41117125173 | $170.62 | Shop at ECS Tuning | |||||
| 08 | Support for frame side member, right | 1 | 41117125174 | $170.62 | Shop at ECS Tuning | |||||
| 09 | Mount, bumper | 2 | 41117111236 | $48.68 | Shop at ECS Tuning | |||||
| 10 | Trunk floor left | 1 | 41147125163 | $110.90 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Bracket, vibration absorber | 1 | 41147135452 | $86.41 | Shop at ECS Tuning | |||||
| 11 | Trunk floor right | 1 | 41147125164 | $110.90 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Bracket, vibration absorber | 1 | 41147135452 | $86.41 | Shop at ECS Tuning | |||||
| 12 | Audio universal bracket | 4 | 41147176125 | $3.37 | Shop at ECS Tuning | |||||
| 13 | Battery tray | 1 | 41127125166 | $50.84 | Shop at ECS Tuning | |||||
| 14 | Holder, activated carbon container, top | 1 | 41147125165 | $22.17 | ENDED | Shop at ECS Tuning | ||||
| 15 | Holder,activated carbon container,bottom | 2 | 41127125160 | $7.78 | Shop at ECS Tuning | |||||
| 16 | Front trunk floor | 1 | 41127128980 | $166.34 | +core | Shop at ECS Tuning | ||||
| 17 | Support, trunk floor, left | 1 | 41127128977 | $34.30 | Shop at ECS Tuning | |||||
| 18 | Support, trunk floor, right | 1 | 41127128978 | $34.30 | Shop at ECS Tuning | |||||
| 19 | Bracket, vibration absorber | 2 | 41147135452 | $86.41 | Shop at ECS Tuning | |||||
| 20 | Reinforcement floor panel trunk | 1 | 41127135454 | $99.68 | Shop at ECS Tuning | |||||
| 21 | Mount, tension strut | 1 | 41127135444 | $56.68 | Shop at ECS Tuning | |||||
| 22 | Support, transverse brace | 2 | 41127135451 | $8.90 | ENDED | Shop at ECS Tuning | ||||
| 23 | Cover lid | D=144MM | 1 | 41128200462 | $5.07 | ENDED | Shop at ECS Tuning | |||
| 24 | Earth pin | M8X12 | X | 07147182215 | Shop at ECS Tuning | |||||
| 24 | Earth pin | M6X12 | X | 41118367249 | $1.85 | ENDED | Shop at ECS Tuning | |||
| 24 | Earth pin | M6X12 | X | 41248185432 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
