Fill-in flap for BMW 6 Series E63 M6 (2010)

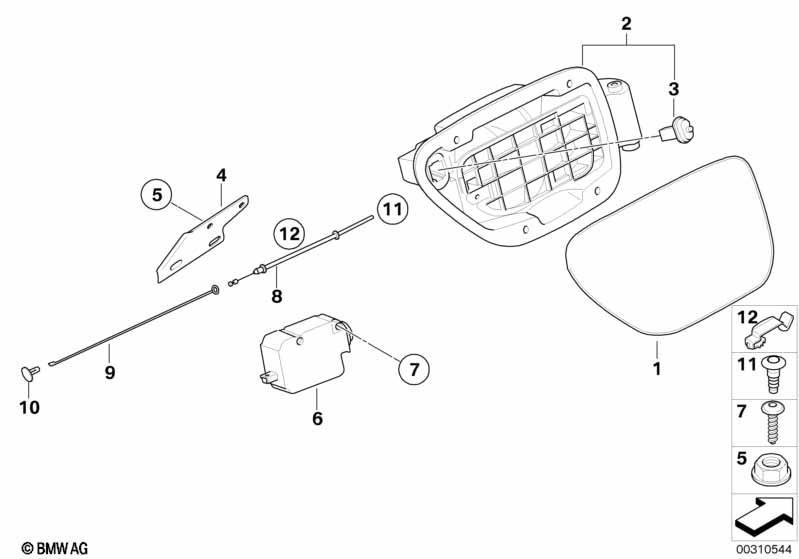

This Fill-in flap technical drawing provides a detailed breakdown of the assembly for the 6 Series E63 M6. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fill-in flap | 1 | 51177011342 | $81.23 | Shop at ECS Tuning | |||||
| 02 | Cover pot | 1 | 51177009382 | $51.13 | ENDED | Shop at ECS Tuning | ||||
| 03 | Buffer stop with ejector | 1 | 51178228939 | $7.63 | Shop at ECS Tuning | |||||
| 04 | Support, centr.lock.syst.,fill-in flap | 1 | 51257009441 | $2.72 | Shop at ECS Tuning | |||||
| 05 | Hex nut with plate | M6 ZNT | 2 | 07149156628 | $0.25 | Shop at ECS Tuning | ||||
| 06 | Filler flap actuator | 1 | 67116987635 | $57.47 | Shop at ECS Tuning | |||||
| 07 | Torx-bolt for plastic material | L=16MM | 2 | 07146958583 | $0.25 | Shop at ECS Tuning | ||||
| 08 | Bowd.cable,centr.lock.syst.,fill-in flap | 1 | 51257009442 | $15.47 | Shop at ECS Tuning | |||||
| 09 | Pulling strip f emergency mechanism | 1 | 51258234140 | $1.23 | Shop at ECS Tuning | |||||
| 10 | Emergency mechanism | 1 | 51258234143 | $0.93 | Shop at ECS Tuning | |||||
| 11 | Sleeve | 1 | 51257026135 | $2.88 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E63 M6 Fill-in flap?
- This technical diagram illustrates the Fill-in flap within the Bodywork group for the 6 Series E63 M6 produced during 2010. It provides a detailed exploded view of the components, identifying key parts such as the Fill-in flap (Part #51177011342).
- Which models use the hardware listed in this Fill-in flap?
- The hardware and components featured in the Fill-in flap are specific to the 6 Series E63 M6 produced during 2010. These technical specifications ensure that parts like the Fill-in flap (51177011342) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fill-in flap assembly?
- Each item in the Fill-in flap corresponds to the numbered list below the illustration. For the 6 Series E63 M6, you can identify the Fill-in flap by locating its position on the schematic, which then links to the official BMW part number 51177011342 for the Bodywork section.
