Body skeleton for BMW 5 Series E61 LCI 520d (2007)
This Body skeleton technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 LCI 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Body skeleton panoramic roof | BASIS | 1 | 09/2005 | 41007143348 | ENDED | Shop at ECS Tuning | |||
| 01 | Body skeleton | BASIS | 1 | 09/2005 | 41007143352 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E61 LCI 520d Body skeleton?

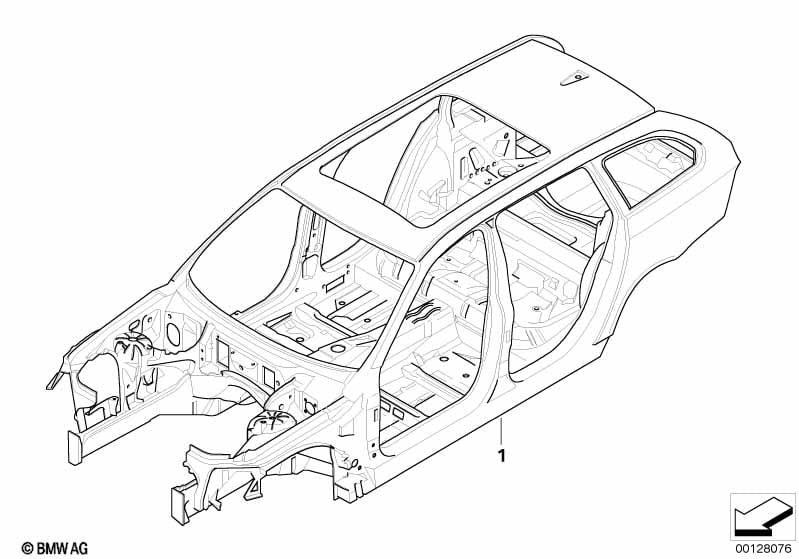

- This technical diagram illustrates the Body skeleton within the Bodywork group for the 5 Series E61 LCI 520d produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Body skeleton panoramic roof (Part #41007143348).
