Single components for body-side frame for BMW 5 Series E61 525i (2005)

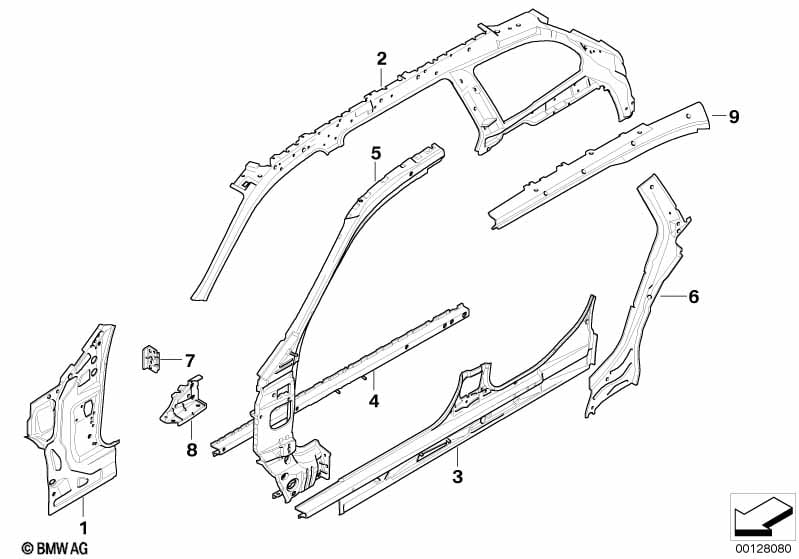

This Single components for body-side frame technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left interior column A | 1 | 41217111281 | $110.58 | ENDED | Shop at ECS Tuning | ||||
| 01 | Right interior column A | 1 | 41217111282 | $110.58 | Shop at ECS Tuning | |||||
| 02 | Left interior roof frame | 1 | 41217129411 | $268.06 | ENDED | Shop at ECS Tuning | ||||
| 02 | Right interior roof frame | 1 | 41217129412 | $268.06 | ENDED | Shop at ECS Tuning | ||||
| 03 | Left side member | 1 | 41127111293 | $178.57 | Shop at ECS Tuning | |||||
| 03 | Right side member | 1 | 41127111294 | $178.57 | Shop at ECS Tuning | |||||
| 04 | Top, side member, left | 1 | 41147111295 | $108.79 | Shop at ECS Tuning | |||||
| 04 | Top, side member, right | 1 | 41147111296 | $108.79 | Shop at ECS Tuning | |||||
| 05 | Connector, A-pillar/roof frame left | 1 | 41217125591 | $184.66 | ENDED | Shop at ECS Tuning | ||||
| 05 | Connector, A-pillar/roof frame right | 1 | 41217125592 | $184.66 | Shop at ECS Tuning | |||||
| 06 | Reinforcement left | 1 | 41217129415 | $114.23 | Shop at ECS Tuning | |||||
| 06 | Reinforcement right | 1 | 41217129416 | $114.23 | ENDED | Shop at ECS Tuning | ||||
| 07 | Mount, supporting tube, left | 1 | 41137111813 | $4.63 | ENDED | Shop at ECS Tuning | ||||
| 07 | Mount, supporting tube, right | 1 | 41137111814 | $4.63 | Shop at ECS Tuning | |||||
| 08 | Reinforcing mount f supporting tube,left | 1 | 41137111817 | $9.23 | ENDED | Shop at ECS Tuning | ||||
| 08 | Reinforcing mount f supporting tube,rig. | 1 | 41137111818 | $9.23 | Shop at ECS Tuning | |||||
| 09 | Reinforcement, interior roof frame, left | 1 | 41217129447 | $114.23 | ENDED | Shop at ECS Tuning | ||||
| 09 | Reinforcement, interior roof frame,right | 1 | 41217129448 | $114.23 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
