Cavity shielding, side frame for BMW 5 Series E61 520d (2007)

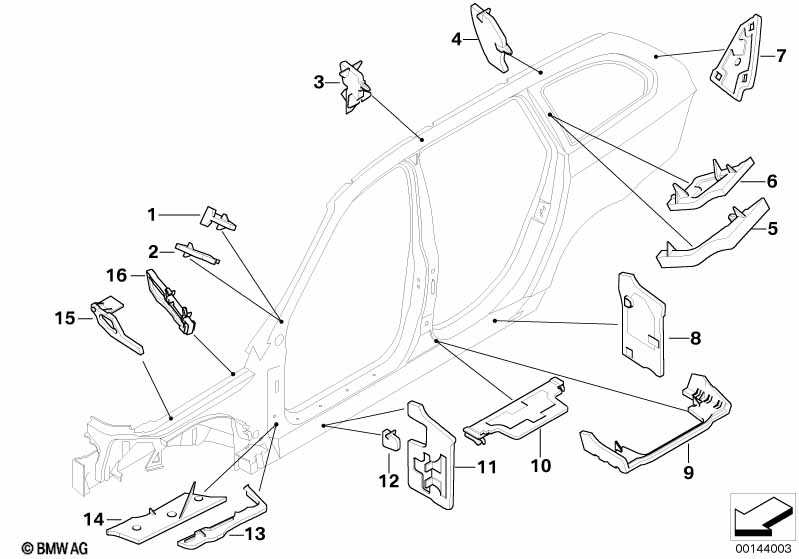

This Cavity shielding, side frame technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Molded part column A, interior | 2 | 41217039215 | $3.40 | ENDED | Shop at ECS Tuning | ||||
| 02 | Molded part column A, exterior | 2 | 41217039214 | $3.40 | ENDED | Shop at ECS Tuning | ||||
| 06 | Molded part column C, interior | 2 | 41217060591 | $4.12 | ENDED | Shop at ECS Tuning | ||||
| 07 | Molded part column D left | 1 | 41217060589 | $5.95 | ENDED | Shop at ECS Tuning | ||||
| 07 | Molded part column D right | 1 | 41217060590 | $5.95 | Shop at ECS Tuning | |||||
| 08 | Molded part f entrance rear left | 1 | 41217158985 | $7.91 | Shop at ECS Tuning | |||||
| 08 | Molded part f entrance rear right | 1 | 41217158986 | $7.91 | Shop at ECS Tuning | |||||
| 09 | Molded part f column B, exterior left | 1 | 41217039225 | $12.40 | ENDED | Shop at ECS Tuning | ||||
| 09 | Moulded part f column B, exterior right | 1 | 41217039226 | $12.40 | ENDED | Shop at ECS Tuning | ||||
| 10 | Moulded part f column B, interior | 2 | 41217039223 | $11.26 | Shop at ECS Tuning | |||||
| 11 | Molded part f entrance front | 2 | 41217039227 | $7.91 | ENDED | Shop at ECS Tuning | ||||
| 12 | Molded part f entrance inside | 2 | 41217039216 | $3.40 | ENDED | Shop at ECS Tuning | ||||
| 13 | Molded part column A | 2 | 41217134229 | $7.91 | Shop at ECS Tuning | |||||
| 14 | Molded part column A, interior | 2 | 41217134227 | $11.26 | ENDED | Shop at ECS Tuning | ||||
| 15 | Moulded part f supporting strut, left | 1 | 41147135323 | $5.12 | ENDED | Shop at ECS Tuning | ||||
| 15 | Moulded part f supporting strut, right | 1 | 41147135324 | $5.12 | ENDED | Shop at ECS Tuning | ||||
| 16 | Moulded part,engine comp. partition,left | 1 | 41137141249 | $7.18 | ENDED | Shop at ECS Tuning | ||||
| 16 | Moulded part,engine comp. partition,rght | 1 | 41137141250 | $7.18 | Shop at ECS Tuning |
