Body-side frame for BMW 5 Series E61 LCI 520d (2007)

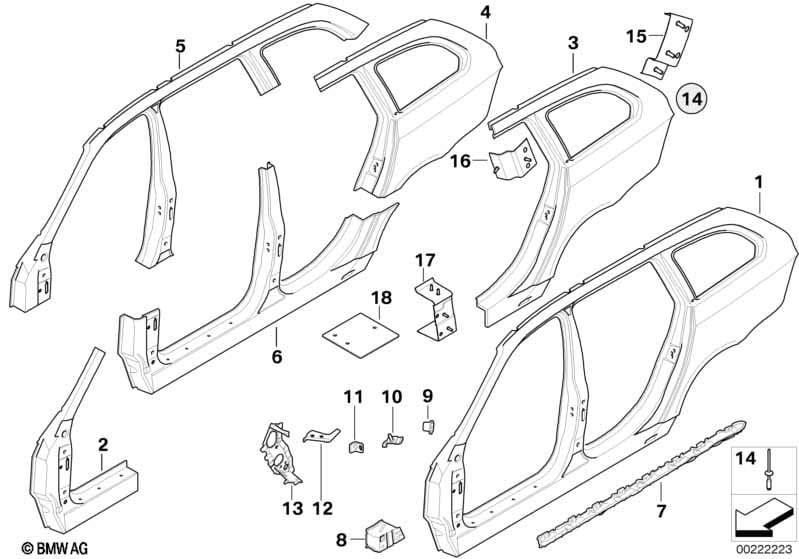

This Body-side frame technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 LCI 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Body-side frame left | 1 | 41217129425 | $1222.00 | ENDED | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| 01 | Body-side frame right | 1 | 41217129426 | $1222.00 | ENDED | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Positioning aid T-bolt | 1 | 41212460164 | Shop at ECS Tuning | ||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | T-welding stud | L=5,4MM | 20 | 41318412638 | Shop at ECS Tuning | |||||
| -- | Hexagon screw with taper | M12X35 | 4 | 07148499258 | Shop at ECS Tuning | |||||
| 02 | Left exterior column A | 1 | 41217111317 | $544.60 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| 02 | Column A exterior right | 1 | 41217111318 | $544.60 | ENDED | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Positioning aid T-bolt | 1 | 41212460164 | Shop at ECS Tuning | ||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | T-welding stud | L=5,4MM | 10 | 41318412638 | Shop at ECS Tuning | |||||
| -- | Hexagon screw with taper | M12X35 | 2 | 07148499258 | Shop at ECS Tuning | |||||
| Performed using adhesive bonding/ riveting repair method. |
||||||||||
| 03 | Left rear side panel | 1 | 41217120199 | $725.97 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 25 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 1 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Punch rivet N4 | 38 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Positioning aid T-bolt | 1 | 41212460164 | Shop at ECS Tuning | ||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | Plastic capnut with washer | D=22MM | 10 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| -- | Reinforcement plate, universal | 1 | 41217275563 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, rocker panel | 1 | 41217275567 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, C-pillar, left | 1 | 41217275582 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, D-pillar, left | 1 | 41217275604 | Shop at ECS Tuning | ||||||
| -- | T-welding stud | L=5,4MM | 10 | 41318412638 | Shop at ECS Tuning | |||||
| 03 | Right rear side panel | 1 | 41217120200 | $725.97 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 25 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 1 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Punch rivet N4 | 38 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Positioning aid T-bolt | 1 | 41212460164 | Shop at ECS Tuning | ||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | Plastic capnut with washer | D=22MM | 10 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| -- | Reinforcement plate, universal | 1 | 41217275563 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, rocker panel | 1 | 41217275567 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, C-pillar, right | 1 | 41217275597 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, D-pillar, right | 1 | 41217275605 | Shop at ECS Tuning | ||||||
| -- | T-welding stud | L=5,4MM | 10 | 41318412638 | Shop at ECS Tuning | |||||
| 04 | Left rear side panel | 1 | 41217120199 | $725.97 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 25 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 1 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Punch rivet N4 | 38 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Positioning aid T-bolt | 1 | 41212460164 | Shop at ECS Tuning | ||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | Plastic capnut with washer | D=22MM | 10 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| -- | Reinforcement plate, universal | 1 | 41217275563 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, rocker panel | 1 | 41217275567 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, C-pillar, left | 1 | 41217275582 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, D-pillar, left | 1 | 41217275604 | Shop at ECS Tuning | ||||||
| -- | T-welding stud | L=5,4MM | 10 | 41318412638 | Shop at ECS Tuning | |||||
| 04 | Right rear side panel | 1 | 41217120200 | $725.97 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 25 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 1 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Punch rivet N4 | 38 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Positioning aid T-bolt | 1 | 41212460164 | Shop at ECS Tuning | ||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | Plastic capnut with washer | D=22MM | 10 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| -- | Reinforcement plate, universal | 1 | 41217275563 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, rocker panel | 1 | 41217275567 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, C-pillar, right | 1 | 41217275597 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, D-pillar, right | 1 | 41217275605 | Shop at ECS Tuning | ||||||
| -- | T-welding stud | L=5,4MM | 10 | 41318412638 | Shop at ECS Tuning | |||||
| 05 | Roof frame left | 1 | 41227120203 | $644.88 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| 05 | Right roof frame | 1 | 41227120204 | $644.88 | ENDED | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Positioning aid T-bolt | 1 | 41212460164 | Shop at ECS Tuning | ||||||
| -- | T-welding stud | L=5,4MM | 10 | 41318412638 | Shop at ECS Tuning | |||||
| -- | Hexagon screw with taper | M12X35 | 2 | 07148499258 | Shop at ECS Tuning | |||||
| 06 | Column B with left rocker panel | 1 | 41217120205 | $681.84 | ENDED | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| 06 | Column B with right rocker panel | 1 | 41217120206 | $681.84 | ENDED | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Hexagon screw with taper | M12X35 | 2 | 07148499258 | Shop at ECS Tuning | |||||
| 07 | Top, entrance, exterior left | 1 | 41217111357 | $19.60 | Shop at ECS Tuning | |||||
| 07 | Top, entrance, exterior right | 1 | 41217111358 | $19.60 | Shop at ECS Tuning | |||||
| 08 | Crash box, left | 1 | 41217111353 | $27.23 | Shop at ECS Tuning | |||||
| 08 | Crash box, right | 1 | 41217111354 | $27.23 | Shop at ECS Tuning | |||||
| 09 | Fender bracket | 1 | 41217111355 | $2.28 | Shop at ECS Tuning | |||||
| 10 | Bracket, side panel, top | 1 | 41007176128 | $7.38 | Shop at ECS Tuning | |||||
| 11 | Bracket, side panel, bottom | 2 | 41217111361 | $2.28 | Shop at ECS Tuning | |||||
| 12 | Connector, side frame, top, left | 1 | 41217117219 | $3.44 | Shop at ECS Tuning | |||||
| 12 | Connector, side frame, top, right | 1 | 41217117220 | $3.44 | Shop at ECS Tuning | |||||
| 13 | Connector, side frame, bottom, left | 1 | 41217111327 | $11.68 | Shop at ECS Tuning | |||||
| 13 | Connector, side frame, bottom, right | 1 | 41217111328 | $11.68 | Shop at ECS Tuning | |||||
| Material thickness / clamping area 2,5 - 6,0mm |
||||||||||
| 14 | Repair rivet for T-bolt | 2,4X8,5MM | X | 07148497788 | Shop at ECS Tuning | |||||
| Material thickness / clamping area 0,8 - 2,5mm |
||||||||||
| 14 | Repair rivet for T-bolt | 2,4X5MM | X | 07148497787 | ENDED | Shop at ECS Tuning | ||||
| 15 | Reinforcement plate, D-pillar, left | 1 | 41217275604 | Shop at ECS Tuning | ||||||
| 15 | Reinforcement plate, D-pillar, right | 1 | 41217275605 | Shop at ECS Tuning | ||||||
| 16 | Reinforcement plate, C-pillar, left | 1 | 41217275582 | Shop at ECS Tuning | ||||||
| 16 | Reinforcement plate, C-pillar, right | 1 | 41217275597 | Shop at ECS Tuning | ||||||
| 17 | Reinforcement plate, rocker panel | 2 | 41217275567 | Shop at ECS Tuning | ||||||
| 18 | Reinforcement plate, universal | 2 | 41217275563 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
