Front panel for BMW 5 Series E60 530i (2005)

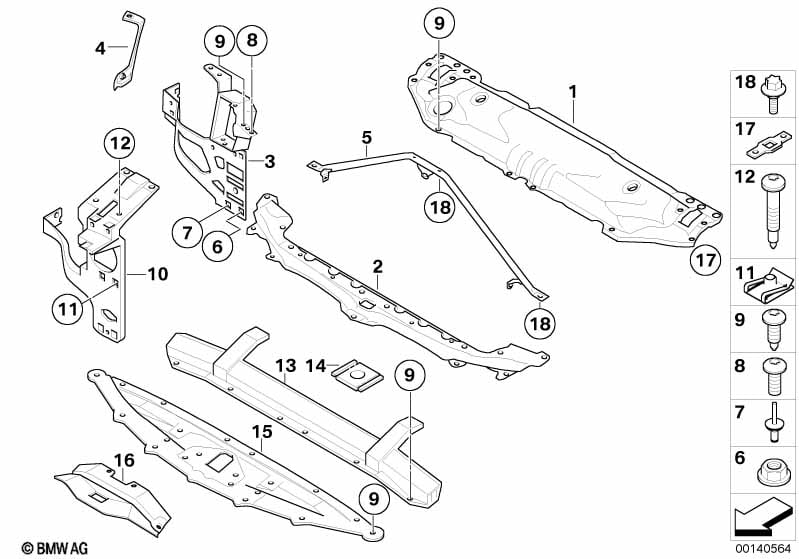

This Front panel technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Connect. pcs. front structure/side frame | 1 | 51647033741 | $138.63 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Label Repair work aluminium | DE/EN | 1 | 71217147088 | $4.67 | Shop at ECS Tuning | ||||
| -- | Label Repair work aluminium | FR/ES | 1 | 71217147089 | $4.67 | Shop at ECS Tuning | ||||
| 02 | Mount, bumper front center | 1 | 51647163462 | $66.27 | Shop at ECS Tuning | |||||
| 03 | Bracket, front panel, left | 1 | 51647163483 | $78.63 | +core | Shop at ECS Tuning | ||||
| 03 | Bracket, front panel, right | 1 | 51647163484 | $78.63 | +core | Shop at ECS Tuning | ||||
| 04 | Bracket, side panel, bottom left | 1 | 51647161451 | $7.87 | Shop at ECS Tuning | |||||
| 04 | Bracket, side panel, bottom right | 1 | 51647161452 | $7.87 | Shop at ECS Tuning | |||||
| 05 | V-support | 1 | 51647033745 | $58.51 | Shop at ECS Tuning | |||||
| 06 | Hex nut with plate | M8 | 8 | 51117070183 | $0.77 | Shop at ECS Tuning | ||||
| 07 | Blind rivet | M6 | 4 | 07147077319 | $1.23 | Shop at ECS Tuning | ||||
| 08 | Torx bolt | ISA M6X18 SW | 8 | 07146959923 | $0.55 | Shop at ECS Tuning | ||||
| 09 | Oval-head screw with washer | ISA M6X21 | 10 | 07147263759 | Shop at ECS Tuning | |||||
| 17 | Compensating plate | 2 | 51717070096 | $1.38 | Shop at ECS Tuning | |||||
| 18 | Torx bolt | M8X23 | 4 | 51717063831 | $2.66 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
