Front door control/door lock for BMW 6 Series E63 M6 (2010)

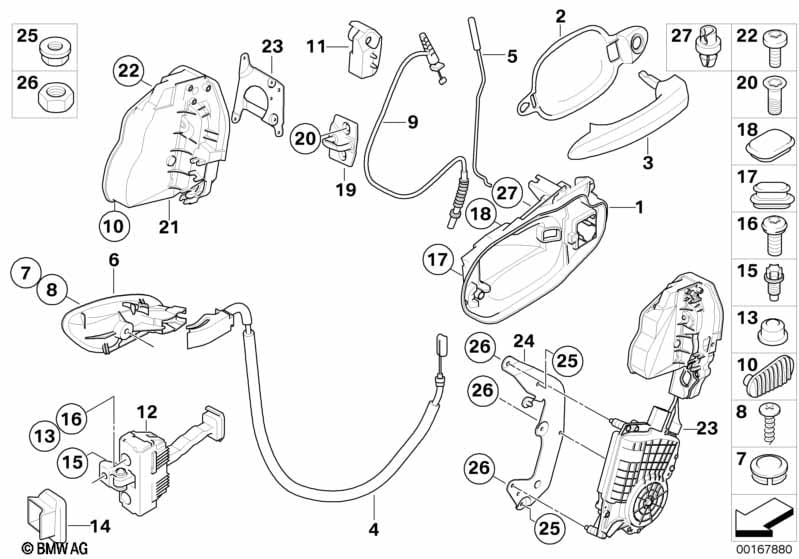

This Front door control/door lock technical drawing provides a detailed breakdown of the assembly for the 6 Series E63 M6. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Comfort access |
S322A=Yes |
|||||||||
| 01 | Carrier with catch, with key left | 1 | 09/2005 | 51217168947 | $468.93 | Shop at ECS Tuning | ||||
| 01 | Carrier with catch, coded left | 1 | 09/2005 | 51217191931 | $439.77 | Shop at ECS Tuning | ||||
| 01 | Carrier, outside door handle, right | 1 | 03/2007 | 51217191600 | $374.53 | Shop at ECS Tuning | ||||
| For vehicles with Comfort access |
S322A=No |
|||||||||
| 01 | Carrier with catch, coded left | 1 | 51217191927 | $278.93 | Shop at ECS Tuning | |||||
| 01 | Carrier with catch, with key left | 1 | 51217127803 | $309.67 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Cable clamp | D=8/B=1,5 | 2 | 61131354726 | $0.42 | Shop at ECS Tuning | ||||
| 01 | Carrier, outside door handle, right | 1 | 51217191618 | $88.62 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Cable clamp | D=8/B=1,5 | 2 | 61131354726 | $0.42 | Shop at ECS Tuning | ||||
| 02 | Recessed handle with hole, left, primed | 1 | 51217191925 | $70.77 | Shop at ECS Tuning | |||||
| 02 | Recess handle without hole right, primed | 1 | 51217195036 | $71.23 | Shop at ECS Tuning | |||||
| When ordering indicate color code | ||||||||||
| 02 | Recess handle with hole, left, painted | CODE - UNI/MET. | 1 | 51210305119 | ENDED | Shop at ECS Tuning | ||||
| 02 | Recess handle without hole right, paint | CODE - UNI/MET. | 1 | 51210305122 | ENDED | Shop at ECS Tuning | ||||
| 03 | Handle bracket, left prime-coated | 1 | 51216961443 | $36.16 | Shop at ECS Tuning | |||||
| 03 | Handle bracket, right prime-coated | 1 | 51216961444 | $36.16 | Shop at ECS Tuning | |||||
| When ordering indicate color code | ||||||||||
| 03 | grab handle, paint finish, left | CODE - UNI/MET. | 1 | 51210154344 | ENDED | Shop at ECS Tuning | ||||
| 03 | grab handle, paint finish, right | CODE - UNI/MET. | 1 | 51210154345 | $187.88 | ENDED | Shop at ECS Tuning | |||
| 04 | Bowden cable, door opener | 2 | 51214335467 | $29.40 | Shop at ECS Tuning | |||||
| 05 | Left operating rod | 1 | 51217008883 | $7.17 | Shop at ECS Tuning | |||||
| 05 | Right operating rod | 1 | 51217008884 | $7.17 | Shop at ECS Tuning | |||||
| 06 | Door handle, inside left | PERLGLANZ | 1 | 08/2007 | 51417892897 | $57.31 | +core | Shop at ECS Tuning | ||
| 06 | Door handle inner right | PERLGLANZ | 1 | 08/2007 | 51417892898 | $57.31 | +core | Shop at ECS Tuning | ||
| 07 | Cover plug | SCHWARZ | 2 | 51217899611 | $2.89 | Shop at ECS Tuning | ||||
| 08 | Fillister head self-tapp.screw w collar | ST4,2X16MM | 2 | 63212754322 | $0.14 | Shop at ECS Tuning | ||||
| 09 | Bowden cable, outside door handle | 2 | 51217008893 | $29.40 | Shop at ECS Tuning | |||||
| 10 | Stop buffer | 2 | 51217130924 | $1.35 | Shop at ECS Tuning | |||||
| 11 | Adaptor left | 1 | 51217062735 | $28.19 | Shop at ECS Tuning | |||||
| 11 | Adaptor right | 1 | 51217062736 | $28.19 | +core | Shop at ECS Tuning | ||||
| 12 | Door brake | 2 | 51217176803 | $46.62 | Shop at ECS Tuning | |||||
| 13 | Protection cap | SCHWARZ | 2 | 51218177670 | $0.33 | Shop at ECS Tuning | ||||
| 14 | Door brake gasket | 2 | 51217009113 | $14.41 | Shop at ECS Tuning | |||||
| 15 | Torx-bolt with washer | ASA M8X22 | 4 | 07147248303 | $0.60 | Shop at ECS Tuning | ||||
| 16 | Torx-bolt with washer | ISA M6X10 | 8 | 07147184168 | $0.62 | Shop at ECS Tuning | ||||
| 17 | Blind plug | 24X12 | 2 | 51211975404 | $1.26 | Shop at ECS Tuning | ||||
| 18 | Blind plug | D=15MM | 2 | 51718170298 | $0.23 | Shop at ECS Tuning | ||||
| 19 | Catch bracket | CHROM | 2 | 51217148705 | $19.23 | Shop at ECS Tuning | ||||
| 20 | Torx-countersunk head screw | M8X18 | 4 | 51211928850 | $0.52 | Shop at ECS Tuning | ||||
| For vehicles with Soft-Close-Automatic doors |
S323A=No |
|||||||||
| 21 | System latch, left | 1 | 51217202143 | $171.13 | Shop at ECS Tuning | |||||
| 21 | System latch, right | 1 | 51217202146 | $171.13 | Shop at ECS Tuning | |||||
| 22 | Torx bolt | M6X13 ZNNID SW | 6 | 07147186859 | $0.53 | Shop at ECS Tuning | ||||
| For vehicles with Soft-Close-Automatic doors |
S323A=Yes |
|||||||||
| 23 | Lock, complete, left | 1 | 09/2006 | 51215A36E33 | Shop at ECS Tuning | |||||
| 23 | Lock, complete, right | 1 | 09/2006 | 51215A36E36 | Shop at ECS Tuning | |||||
| 24 | Adapter plate, left | SCA | 1 | 09/2006 | 51217174635 | $9.22 | Shop at ECS Tuning | |||
| 24 | Adapter plate, right | SCA | 1 | 09/2006 | 51217174636 | $9.22 | Shop at ECS Tuning | |||
| 25 | Self-locking hex nut | M6 | 6 | 09/2006 | 64509123157 | $0.70 | Shop at ECS Tuning | |||
| 26 | Hex nut with plate | M5 | 6 | 09/2006 | 63259128043 | $0.72 | Shop at ECS Tuning | |||
| 27 | Circlip | 2 | 51221817032 | $0.31 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
