Door weatherstrip for BMW 6 Series E64 630i (2007)

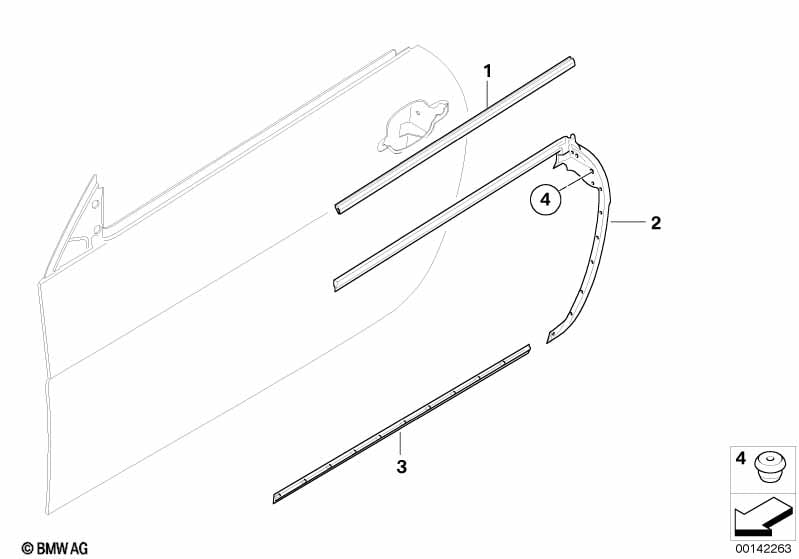

This Door weatherstrip technical drawing provides a detailed breakdown of the assembly for the 6 Series E64 630i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Channel cover,exterior,door, front left | SCHWARZ | 1 | 51337077937 | $61.97 | Shop at ECS Tuning | ||||
| 01 | Channel cover,exterior,door, front right | SCHWARZ | 1 | 51337077938 | $61.97 | Shop at ECS Tuning | ||||
| For vehicles with Chrome Line exterieur |
S346A=Yes |
|||||||||
| 01 | Channel cover,exterior,door, front left | CHROM | 1 | 51337008569 | $68.12 | Shop at ECS Tuning | ||||
| 01 | Channel cover,exterior,door, front right | CHROM | 1 | 51337008570 | $68.12 | Shop at ECS Tuning | ||||
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 01 | Channel cover,exterior,door, front left | GLANZSCHWARZ | 1 | 51337008571 | $61.97 | Shop at ECS Tuning | ||||
| 01 | Channel cover,exterior,door, front right | GLANZSCHWARZ | 1 | 51337008572 | $61.97 | Shop at ECS Tuning | ||||
| 02 | Channel sealing,inside,door, front left | 1 | 51337008573 | $82.58 | Shop at ECS Tuning | |||||
| 02 | Channel sealing,inside,door, front right | 1 | 51337008574 | $82.58 | Shop at ECS Tuning | |||||
| 03 | Gasket, door joint, bottom front | 2 | 51337008565 | $34.73 | Shop at ECS Tuning | |||||
| 04 | Plug | 2 | 07147139043 | $0.17 | Shop at ECS Tuning | |||||
