Front body bracket left for BMW 3 Series E90 320d (2007)

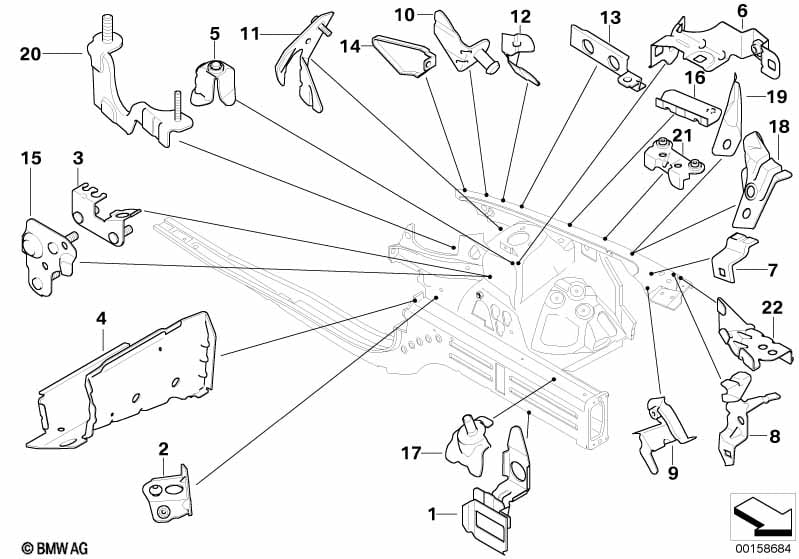

This Front body bracket left technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 04 | Connector Engine support/Side fram, left | 1 | 41117152265 | $54.22 | Shop at ECS Tuning | |||||
| 05 | Bracket. intake silencer top left | 1 | 41147135631 | $3.08 | Shop at ECS Tuning | |||||
| 08 | Bracket side panel left | 1 | 41217145349 | $7.91 | Shop at ECS Tuning | |||||
| 09 | Bracket for intake silencer, left | 1 | 41127145361 | $7.52 | Shop at ECS Tuning | |||||
| 10 | Bracket, active steering, top | 1 | 41117145346 | $5.48 | Shop at ECS Tuning | |||||
| 11 | Bracket, active steering, bottom | 1 | 41117178139 | Shop at ECS Tuning | ||||||
| 12 | Bracket, side panel, centre left | 1 | 41217145355 | $3.40 | Shop at ECS Tuning | |||||
| 13 | Bracket, side panel, bottom left | 1 | 41127145359 | $3.45 | Shop at ECS Tuning | |||||
| 14 | Bracket, side panel, top left | 1 | 41207166683 | $3.32 | Shop at ECS Tuning | |||||
| 15 | Holder, brake hose, left | 1 | 09/2005 | 41007184917 | $4.40 | Shop at ECS Tuning | ||||
| 17 | Bracket,engine subframe crossbrace left | 1 | 41117174995 | $9.56 | Shop at ECS Tuning |
