Cavity shielding, side frame for BMW 1 Series E87 LCI 116d (2011)

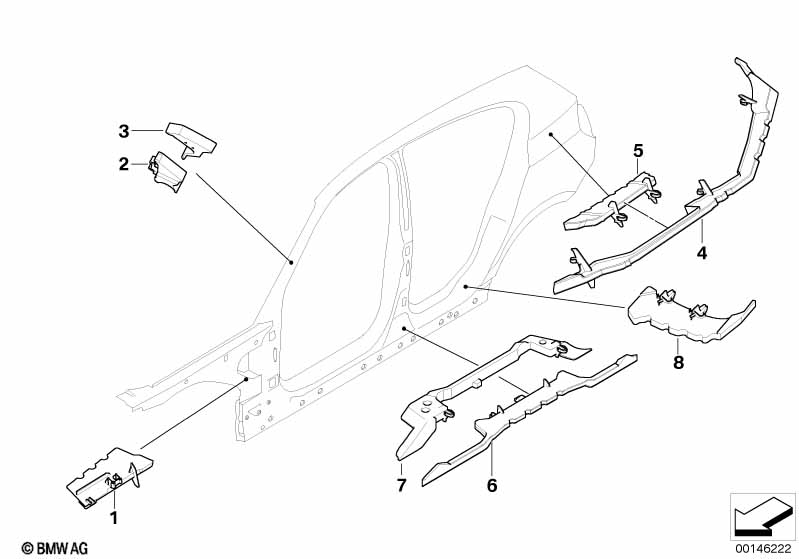

This Cavity shielding, side frame technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 LCI 116d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Moulded part f wheel housing supp., left | 1 | 41147076725 | $5.12 | Shop at ECS Tuning | |||||
| 01 | Moulded part f wheel housing supp.,right | 1 | 41147076726 | $5.12 | Shop at ECS Tuning | |||||
| 02 | Molded part column A, interior | 2 | 41217062231 | Shop at ECS Tuning | ||||||
| 03 | Molded part column A, exterior | 2 | 41217062229 | Shop at ECS Tuning | ||||||
| 04 | Molded part f column C, exterior left | 1 | 41217077841 | Shop at ECS Tuning | ||||||
| 04 | Moulded part f column C, exterior right | 1 | 41217077842 | Shop at ECS Tuning | ||||||
| 05 | Moulded part f column C, interior left | 1 | 41217062235 | Shop at ECS Tuning | ||||||
| 05 | Molded part f column C, interior right | 1 | 41217062236 | Shop at ECS Tuning | ||||||
| 06 | Moulded part f column B, interior left | 1 | 41217071263 | ENDED | Shop at ECS Tuning | |||||
| 06 | Molded part f column B, interior right | 1 | 41217071264 | Shop at ECS Tuning | ||||||
| 07 | Molded part f column B, exterior left | 1 | 41217071265 | ENDED | Shop at ECS Tuning | |||||
| 07 | Moulded part f column B, exterior right | 1 | 41217071266 | Shop at ECS Tuning | ||||||
| 08 | Molded part f entrance rear left | 2 | 41217170647 | Shop at ECS Tuning | ||||||
| 08 | Molded part f entrance rear right | 1 | 41217170648 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series E87 LCI 116d Cavity shielding, side frame?
- This technical diagram illustrates the Cavity shielding, side frame within the Bodywork group for the 1 Series E87 LCI 116d produced during 2011. It provides a detailed exploded view of the components, identifying key parts such as the Moulded part f wheel housing supp., left (Part #41147076725).
- Which models use the hardware listed in this Cavity shielding, side frame?
- The hardware and components featured in the Cavity shielding, side frame are specific to the 1 Series E87 LCI 116d produced during 2011. These technical specifications ensure that parts like the Moulded part f wheel housing supp., left (41147076725) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cavity shielding, side frame assembly?
- Each item in the Cavity shielding, side frame corresponds to the numbered list below the illustration. For the 1 Series E87 LCI 116d, you can identify the Moulded part f wheel housing supp., left by locating its position on the schematic, which then links to the official BMW part number 41147076725 for the Bodywork section.
