Body-side frame for BMW 1 Series E87 LCI 118d (2011)

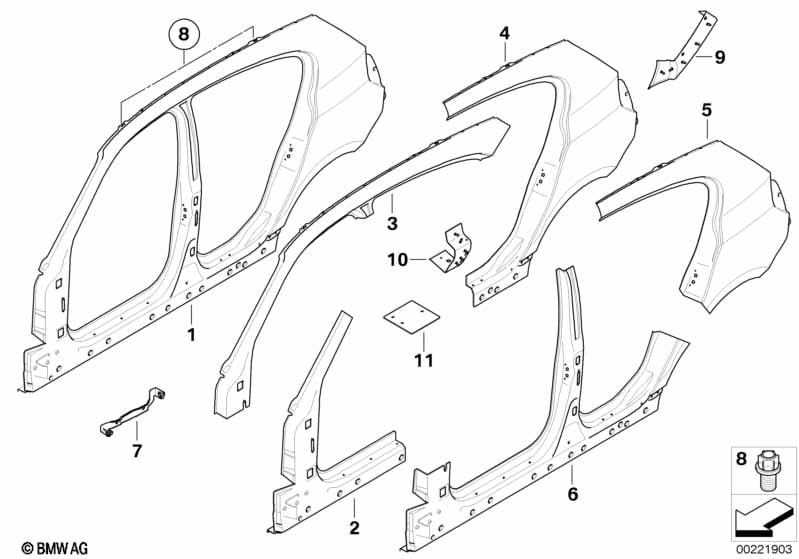

This Body-side frame technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 LCI 118d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Side frame, exterior, left | 1 | 41217152841 | ENDED | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 01 | Side frame, exterior, right | 1 | 41217152842 | ENDED | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Blind plug | D=25MM | 1 | 51717175886 | $0.63 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| 02 | Left exterior column A | 1 | 41217157253 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| 02 | Column A exterior right | 1 | 41217157254 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Blind plug | D=25MM | 1 | 51717175886 | $0.63 | Shop at ECS Tuning | ||||
| 03 | Roof frame left | 1 | 41217157257 | Shop at ECS Tuning | ||||||
| 03 | Right roof frame | 1 | 41217157258 | Shop at ECS Tuning | ||||||
| Performed using adhesive bonding/ riveting repair method. |
||||||||||
| 04 | Left rear side panel | 1 | 41217131017 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 18 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 1 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Punch rivet N4 | 29 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | Plastic capnut with washer | D=22MM | 10 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| -- | Reinforcement plate, universal | 1 | 41217275563 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, rocker panel | 1 | 41217275565 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, C-pillar, left | 1 | 41217275577 | Shop at ECS Tuning | ||||||
| 04 | Right rear side panel | 1 | 41217131018 | $399.52 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 18 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 1 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Punch rivet N4 | 29 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | Plastic capnut with washer | D=22MM | 10 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| -- | Reinforcement plate, universal | 1 | 41217275563 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, rocker panel | 1 | 41217275565 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, C-pillar, right | 1 | 41217275592 | Shop at ECS Tuning | ||||||
| 05 | Left rear side panel | 1 | 41217131017 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 18 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 1 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Punch rivet N4 | 29 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | Plastic capnut with washer | D=22MM | 10 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| -- | Reinforcement plate, universal | 1 | 41217275563 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, rocker panel | 1 | 41217275565 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, C-pillar, left | 1 | 41217275577 | Shop at ECS Tuning | ||||||
| 05 | Right rear side panel | 1 | 41217131018 | $399.52 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 18 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 1 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Punch rivet N4 | 29 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | Plastic capnut with washer | D=22MM | 10 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| -- | Reinforcement plate, universal | 1 | 41217275563 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, rocker panel | 1 | 41217275565 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, C-pillar, right | 1 | 41217275592 | Shop at ECS Tuning | ||||||
| 06 | Column B with left rocker panel | 1 | 41217157255 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| 06 | Column B with right rocker panel | 1 | 41217157256 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Blind plug | D=25MM | 1 | 51717175886 | $0.63 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| 07 | Bracket, side panel column A left | 1 | 41217177361 | $7.91 | Shop at ECS Tuning | |||||
| 07 | Bracket, side panel, column A right | 1 | 41217177362 | $7.91 | Shop at ECS Tuning | |||||
| Mounting for Roof rack system |
||||||||||
| 08 | Star screw with internal threads | M10 / M6 | 4 | 07147153767 | $1.98 | Shop at ECS Tuning | ||||
| 09 | Reinforcement plate, C-pillar, left | 1 | 41217275577 | Shop at ECS Tuning | ||||||
| 09 | Reinforcement plate, C-pillar, right | 1 | 41217275592 | Shop at ECS Tuning | ||||||
| 10 | Reinforcement plate, rocker panel | 2 | 41217275565 | Shop at ECS Tuning | ||||||
| 11 | Reinforcement plate, universal | 2 | 41217275563 | Shop at ECS Tuning | ||||||
