Partition trunk/Floor parts for BMW 3 Series E90 LCI 325i (2011)

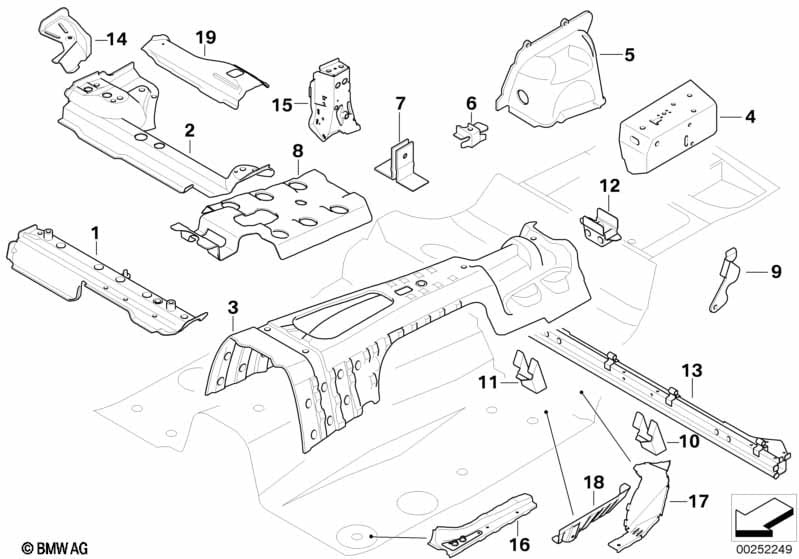

This Partition trunk/Floor parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left front seat console | 1 | 41117145297 | $45.57 | Shop at ECS Tuning | |||||
| 01 | Right front seat console | 1 | 41117145298 | $45.57 | Shop at ECS Tuning | |||||
| 02 | Left rear seat console | 1 | 41117145299 | $54.22 | Shop at ECS Tuning | |||||
| 02 | Right rear seat console | 1 | 41117145300 | $54.22 | Shop at ECS Tuning | |||||
| 03 | Reinforcement tunnel | 1 | 41127152424 | $69.71 | Shop at ECS Tuning | |||||
| 04 | Support belt reel, left | 1 | 41147170919 | $56.68 | +core | Shop at ECS Tuning | ||||
| 04 | Support belt reel, right | 1 | 41147170920 | +core | Shop at ECS Tuning | |||||
| 05 | Support, wheelhouse left | 1 | 41147157723 | $56.68 | Shop at ECS Tuning | |||||
| 05 | Support, wheelhouse right | 1 | 41147157724 | $56.68 | Shop at ECS Tuning | |||||
| 06 | Bracket backrest outer left | 1 | 41117137587 | $7.92 | Shop at ECS Tuning | |||||
| 06 | Bracket backrest outer right | 1 | 41117137588 | $7.92 | Shop at ECS Tuning | |||||
| 07 | Centre backrest bearing bracket | 1 | 41127145319 | $4.30 | Shop at ECS Tuning | |||||
| 08 | Bracket f shifting arm bearing | 1 | 41117145305 | $7.28 | Shop at ECS Tuning | |||||
| 09 | Holder, backrest, left | 1 | 41147145327 | $2.17 | Shop at ECS Tuning | |||||
| 09 | Holder, backrest, right | 1 | 41147145328 | $2.17 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
