Engine hood/mounting parts for BMW 3 Series E93 335i (2010)

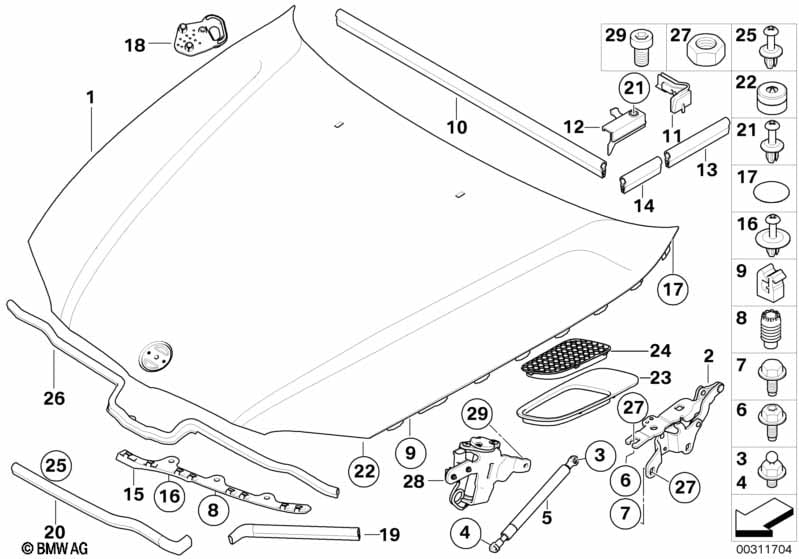

This Engine hood/mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E93 335i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hood | 1 | 41617168514 | $558.07 | Shop at ECS Tuning | |||||
| 02 | Left engine hood hinge | 1 | 41617210677 | $50.98 | Shop at ECS Tuning | |||||
| 02 | Right engine hood hinge | 1 | 41617210678 | $50.98 | Shop at ECS Tuning | |||||
| 03 | Ball pin | M8X13 | 2 | 07147129401 | $1.40 | Shop at ECS Tuning | ||||
| 04 | Ball pin | M8X13 | 2 | 07147129401 | $1.40 | Shop at ECS Tuning | ||||
| 05 | Gas pressurized spring | 330N | 1 | 51237129190 | $37.68 | Shop at ECS Tuning | ||||
| 06 | Hex bolt with washer | M8X23 | 4 | 07/2012 | 07147131648 | $1.05 | Shop at ECS Tuning | |||
| 07 | Hex bolt with washer | M8X25 | 4 | 07147031946 | $0.82 | Shop at ECS Tuning | ||||
| 09 | Bump stop | 2 | 51238247699 | $1.02 | Shop at ECS Tuning | |||||
| 10 | Rear engine hood sealing | 1 | 51717060565 | $11.00 | Shop at ECS Tuning | |||||
| 11 | Upper part of seal,engine bonnet,left | 1 | 51767142049 | $6.59 | Shop at ECS Tuning | |||||
| 11 | Upper part of seal,engine bonnet,right | 1 | 51767142050 | $6.59 | Shop at ECS Tuning | |||||
| 12 | Lower section seal of engine hood, left | 1 | 51767124759 | $4.40 | Shop at ECS Tuning | |||||
| 12 | Lower section seal of engine hood, right | 1 | 51767124760 | $4.40 | Shop at ECS Tuning | |||||
| 13 | Sealing, engine compartment lateral rear | 2 | 51767158690 | $2.21 | Shop at ECS Tuning | |||||
| 14 | Sealing, engine compartment lateral frnt | 2 | 51767158689 | $2.21 | Shop at ECS Tuning | |||||
| 17 | Protection foil | 2 | 07147162569 | $0.38 | Shop at ECS Tuning | |||||
| 18 | Stopper left | 1 | 51237159195 | $3.62 | Shop at ECS Tuning | |||||
| 18 | Stopper right | 1 | 51237159196 | $3.62 | Shop at ECS Tuning | |||||
| 21 | Expanding rivet | 2 | 51168197908 | $0.37 | Shop at ECS Tuning | |||||
| 22 | Stop buffer | 4 | 51237162448 | $3.52 | Shop at ECS Tuning |
