Rear door - hinge/door brake for BMW 3 Series E90 320d (2007)

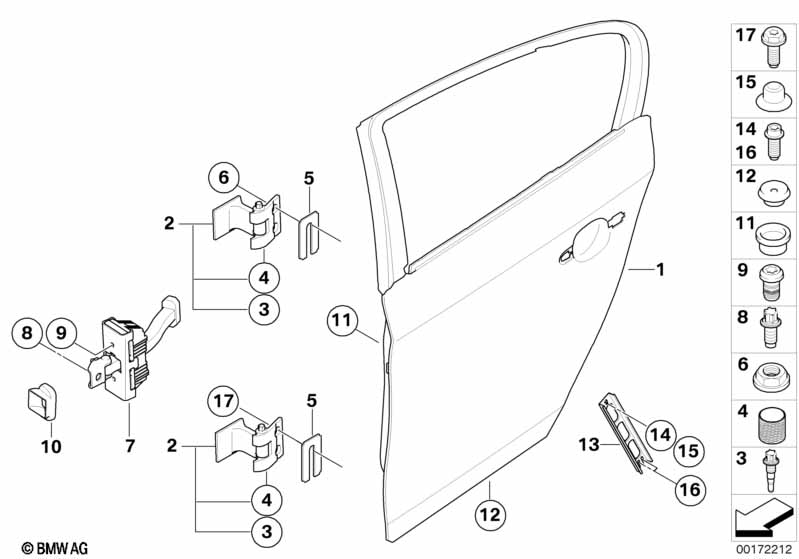

This Rear door - hinge/door brake technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door rear left | 1 | 41007203647 | $586.71 | Shop at ECS Tuning | |||||
| 01 | Door rear right | 1 | 41007203648 | $586.71 | Shop at ECS Tuning | |||||
| 02 | Left upper rear door hinge | 1 | 41527046051 | $35.79 | Shop at ECS Tuning | |||||
| 02 | Right upper rear door hinge | 1 | 41527046052 | $35.79 | Shop at ECS Tuning | |||||
| 02 | Left lower rear door hinge | 1 | 41527046057 | $35.79 | Shop at ECS Tuning | |||||
| 02 | Right lower rear door hinge | 1 | 41527046058 | $35.79 | Shop at ECS Tuning | |||||
| 03 | Hinge pin | M10X1,25 | 4 | 51217069748 | $2.80 | Shop at ECS Tuning | ||||
| 04 | Hinge bush | 4 | 41517362330 | Shop at ECS Tuning | ||||||
| 05 | Shim | 0,5MM | X | 41517202050 | $1.62 | Shop at ECS Tuning | ||||
| 06 | Hex nut with plate | M8 | 4 | 07146970706 | $1.18 | Shop at ECS Tuning | ||||
| 07 | Rear door brake | 2 | 51227176808 | $35.87 | Shop at ECS Tuning | |||||
| 08 | Torx-bolt with washer | ASA M8X22 | 2 | 07147248303 | $0.60 | Shop at ECS Tuning | ||||
| 09 | Torx-bolt with washer | ISA M6X10 | 4 | 09/2005 | 07147184168 | $0.62 | Shop at ECS Tuning | |||
| 10 | Left rear door brake gasket | 1 | 51227125589 | $9.96 | Shop at ECS Tuning | |||||
| 10 | Right rear door brake gasket | 1 | 51357125590 | $9.96 | Shop at ECS Tuning | |||||
| 11 | Protection cap | SCHWARZ | 2 | 51218177670 | $0.33 | Shop at ECS Tuning | ||||
| 12 | Blind plug | D=20MM | 2 | 07147140850 | $0.19 | Shop at ECS Tuning | ||||
| 13 | Door reinforcement, rear left | 1 | 51717152243 | $7.52 | Shop at ECS Tuning | |||||
| 13 | Door reinforcement, rear right | 1 | 51717152244 | $7.52 | Shop at ECS Tuning | |||||
| 14 | Torx bolt | ISA M8X19,5 | 2 | 07147153762 | $0.55 | Shop at ECS Tuning | ||||
| 16 | Fillister-head screw | M8X21-10.9 | 2 | 31106867454 | Shop at ECS Tuning | |||||
| 17 | Hex bolt with washer | M8X22 | 4 | 07147152728 | $0.75 | Shop at ECS Tuning |
