Trunk lid hydraulic parts for BMW 5 Series E61 LCI 530d (2010)

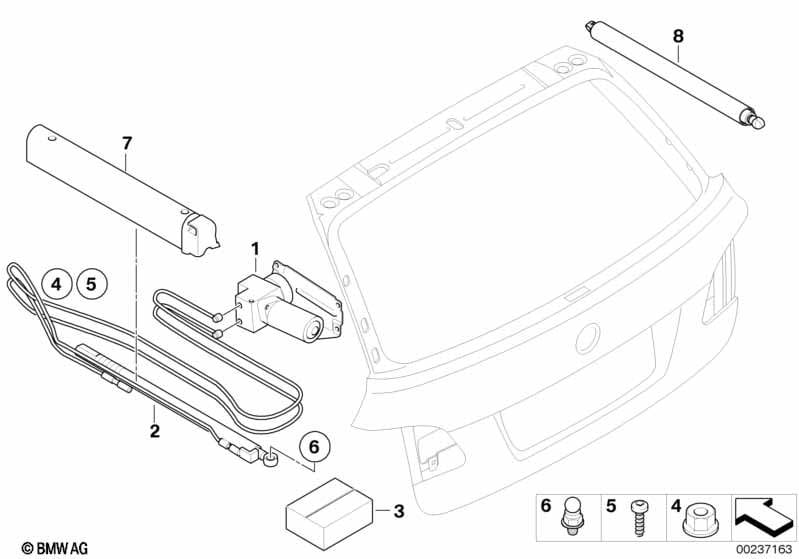

This Trunk lid hydraulic parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 LCI 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with automatic trunk lid mechanism |
S316A=Yes |
||||||||
| 01 | Hydraulic unit | 1 | 51247163661 | $915.30 | Shop at ECS Tuning | |||||
| 02 | Hydraulic cylinder | 1 | 51247163662 | $805.49 | Shop at ECS Tuning | |||||
| 03 | Set of small parts, hydro unit with oil | 1 | 51247163663 | $95.85 | Shop at ECS Tuning | |||||
| 04 | Hex nut with plate | M6 | 2 | 41127028600 | $0.33 | Shop at ECS Tuning | ||||
| 05 | Torx-bolt with washer | M6X14-Z2 | 1 | 54317000636 | $0.61 | Shop at ECS Tuning | ||||
| 06 | Ball pin | M10 | 1 | 41627148797 | $2.82 | Shop at ECS Tuning | ||||
| 07 | Cover, hydraulic zylinder | 1 | 51247183271 | $31.23 | Shop at ECS Tuning | |||||
| 08 | Right gas pressurized spring | 315N | 1 | 51247201468 | $73.87 | Shop at ECS Tuning | ||||
