Cavity shielding, side frame for BMW 3 Series E90 LCI 320d (2011)

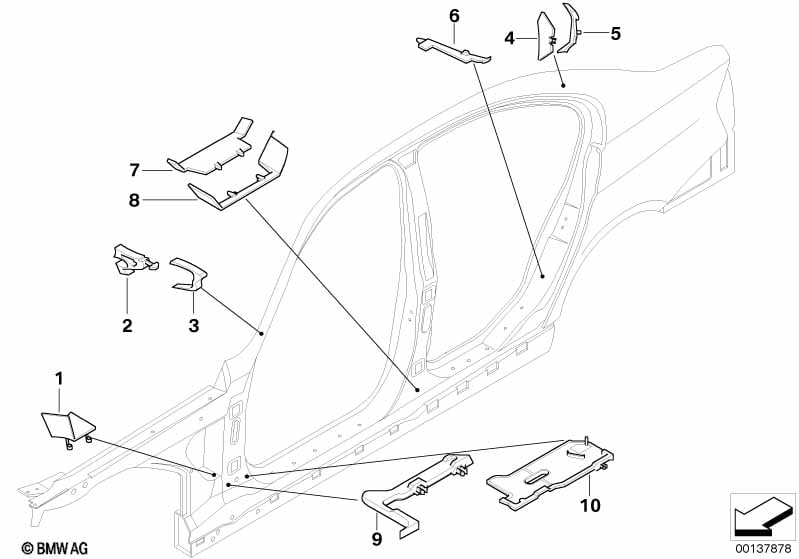

This Cavity shielding, side frame technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Moulded part f supporting strut, left | 1 | 41217111495 | $5.63 | Shop at ECS Tuning | |||||
| 01 | Moulded part f supporting strut, right | 1 | 41217111496 | $5.63 | Shop at ECS Tuning | |||||
| 02 | Molded part column A, top interior | 2 | 41217062451 | $3.40 | Shop at ECS Tuning | |||||
| 03 | Molded part column A, top exterior left | 1 | 41217062449 | $3.40 | Shop at ECS Tuning | |||||
| 03 | Molded part column A,top exterior right | 1 | 41217062450 | $3.40 | Shop at ECS Tuning | |||||
| 04 | Molded part column C, interior | 2 | 41217062457 | $7.91 | ENDED | Shop at ECS Tuning | ||||
| 05 | Molded part f column C, exterior left | 1 | 41217062465 | $5.63 | ENDED | Shop at ECS Tuning | ||||
| 05 | Moulded part f column C, exterior right | 1 | 41217062466 | $5.63 | ENDED | Shop at ECS Tuning | ||||
| 06 | Molded part f entrance rear left | 1 | 41217062371 | $5.63 | Shop at ECS Tuning | |||||
| 06 | Molded part f entrance rear right | 1 | 41217062372 | $5.63 | Shop at ECS Tuning | |||||
| 07 | Moulded part f column B, interior left | 1 | 41217062453 | $11.26 | Shop at ECS Tuning | |||||
| 07 | Molded part f column B, interior right | 1 | 41217062454 | $11.26 | Shop at ECS Tuning | |||||
| 08 | Molded part f column B, exterior left | 1 | 41217062455 | $12.40 | Shop at ECS Tuning | |||||
| 08 | Moulded part f column B, exterior right | 1 | 41217062456 | $12.40 | Shop at ECS Tuning | |||||
| 09 | Molded part column A, bottom int. left | 1 | 41007158659 | $5.79 | Shop at ECS Tuning | |||||
| 09 | Molded part column A, bottom int. right | 1 | 41007158660 | $5.79 | Shop at ECS Tuning | |||||
| 10 | Molded part, A-pillar, lower outer | 2 | 41007158661 | $5.79 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
