Body-side frame for BMW 3 Series E90 LCI 330i (2011)

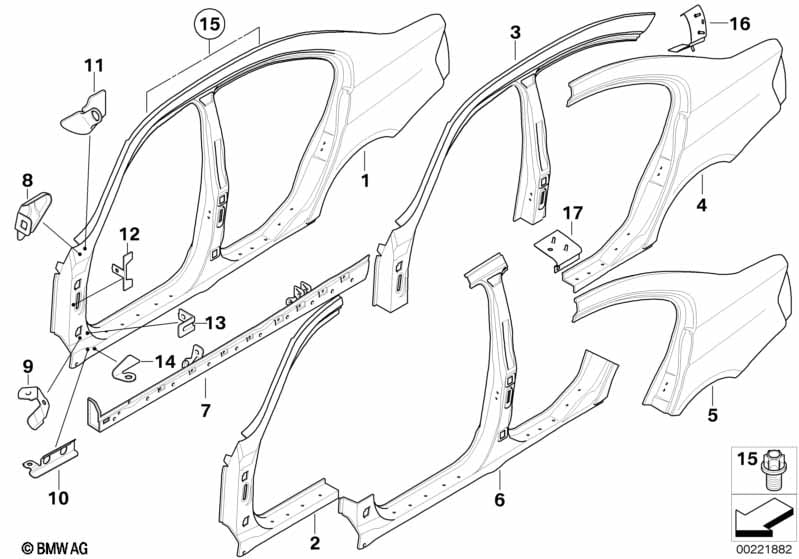

This Body-side frame technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Side frame, exterior, left | 1 | 41217277325 | +core | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| 01 | Side frame, exterior, right | 1 | 41217277326 | +core | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Positioning aid T-bolt | 1 | 41212460141 | Shop at ECS Tuning | ||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | T-welding stud | L=5,4MM | 20 | 41318412638 | Shop at ECS Tuning | |||||
| 02 | Left exterior column A | 1 | 41217145093 | $603.43 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| 02 | Column A exterior right | 1 | 41217145094 | $603.43 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Positioning aid T-bolt | 1 | 41212460141 | Shop at ECS Tuning | ||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | T-welding stud | L=5,4MM | 10 | 41318412638 | Shop at ECS Tuning | |||||
| 03 | Roof frame left | 1 | 41217277329 | ENDED | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| 03 | Right roof frame | 1 | 41217277330 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Positioning aid T-bolt | 1 | 41212460141 | Shop at ECS Tuning | ||||||
| -- | T-welding stud | L=5,4MM | 10 | 41318412638 | Shop at ECS Tuning | |||||
| Performed using adhesive bonding/ riveting repair method. |
||||||||||
| 04 | Left rear side panel | 1 | 41217145095 | $467.43 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 17 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 1 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Punch rivet N4 | 26 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Positioning aid T-bolt | 1 | 41212460141 | Shop at ECS Tuning | ||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | Plastic capnut with washer | D=22MM | 10 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| -- | Reinforcement plate, rocker panel | 1 | 41217275566 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, C-pillar, left | 1 | 41217275578 | Shop at ECS Tuning | ||||||
| -- | T-welding stud | L=5,4MM | 10 | 41318412638 | Shop at ECS Tuning | |||||
| 04 | Right rear side panel | 1 | 41217145096 | $467.43 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 17 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 1 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Punch rivet N4 | 26 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Positioning aid T-bolt | 1 | 41212460141 | Shop at ECS Tuning | ||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | Plastic capnut with washer | D=22MM | 10 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| -- | Reinforcement plate, rocker panel | 1 | 41217275566 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, C-pillar, right | 1 | 41217275593 | Shop at ECS Tuning | ||||||
| -- | T-welding stud | L=5,4MM | 10 | 41318412638 | Shop at ECS Tuning | |||||
| 05 | Left rear side panel | 1 | 41217145095 | $467.43 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 17 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 1 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Punch rivet N4 | 26 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Positioning aid T-bolt | 1 | 41212460141 | Shop at ECS Tuning | ||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | Plastic capnut with washer | D=22MM | 10 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| -- | Reinforcement plate, rocker panel | 1 | 41217275566 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, C-pillar, left | 1 | 41217275578 | Shop at ECS Tuning | ||||||
| -- | T-welding stud | L=5,4MM | 10 | 41318412638 | Shop at ECS Tuning | |||||
| 05 | Right rear side panel | 1 | 41217145096 | $467.43 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 17 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 1 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Punch rivet N4 | 26 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Positioning aid T-bolt | 1 | 41212460141 | Shop at ECS Tuning | ||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | Plastic capnut with washer | D=22MM | 10 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| -- | Reinforcement plate, rocker panel | 1 | 41217275566 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, C-pillar, right | 1 | 41217275593 | Shop at ECS Tuning | ||||||
| -- | T-welding stud | L=5,4MM | 10 | 41318412638 | Shop at ECS Tuning | |||||
| 06 | Column B with left rocker panel | 1 | 41217277331 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| 06 | Column B with right rocker panel | 1 | 41217277332 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Positioning aid T-bolt | 1 | 41212460141 | Shop at ECS Tuning | ||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | T-welding stud | L=5,4MM | 10 | 41318412638 | Shop at ECS Tuning | |||||
| 07 | Exterior left entrance | 1 | 41008045845 | $213.06 | Shop at ECS Tuning | |||||
| 07 | Exterior right entrance | 1 | 41008045846 | $213.06 | Shop at ECS Tuning | |||||
| 08 | Bracket, side panel, top left | 1 | 41207166683 | $3.32 | Shop at ECS Tuning | |||||
| 08 | Bracket, side panel, top right | 1 | 41207166684 | $3.32 | Shop at ECS Tuning | |||||
| 09 | Bracket, side panel, centre left | 1 | 41217145355 | $3.40 | Shop at ECS Tuning | |||||
| 09 | Bracket, side panel, centre right | 1 | 41217145356 | $3.40 | Shop at ECS Tuning | |||||
| 10 | Bracket, side panel, bottom left | 1 | 41127145359 | $3.45 | Shop at ECS Tuning | |||||
| 10 | Bracket, side panel, bottom right | 1 | 41127145360 | $3.45 | Shop at ECS Tuning | |||||
| Mounting for Roof rack system |
||||||||||
| 15 | Star screw with internal threads | M10 / M6 | 4 | 07147153767 | $1.98 | Shop at ECS Tuning | ||||
| 16 | Reinforcement plate, C-pillar, left | 1 | 41217275578 | Shop at ECS Tuning | ||||||
| 16 | Reinforcement plate, C-pillar, right | 1 | 41217275593 | Shop at ECS Tuning | ||||||
| 17 | Reinforcement plate, rocker panel | 2 | 41217275566 | Shop at ECS Tuning | ||||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
