Rear door Security for BMW 3 Series E46 330i (2004)

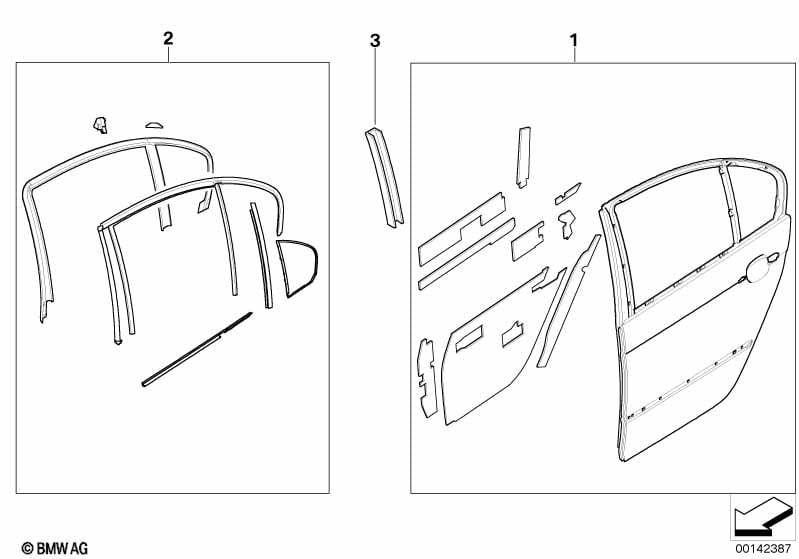

This Rear door Security technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Safety vehicle |
S106A=Yes |
||||||||
| 01 | Door rear left | 1 | 41527031835 | +core | Shop at ECS Tuning | |||||
| 01 | Door rear right | 1 | 41527031836 | +core | Shop at ECS Tuning | |||||
| 02 | Door seals rear left | 1 | 51347031823 | ENDED, +core | Shop at ECS Tuning | |||||
| 02 | Door seals rear right | 1 | 51347031824 | ENDED, +core | Shop at ECS Tuning | |||||
| 03 | Cover, window guide web, interior left | 1 | 41357064285 | ENDED, +core | Shop at ECS Tuning | |||||
| 03 | Cover, window guide web, interior right | 1 | 41357064286 | ENDED, +core | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
