Mounting parts for trunk floor panel for BMW 3 Series E90 LCI 325xi (2011)

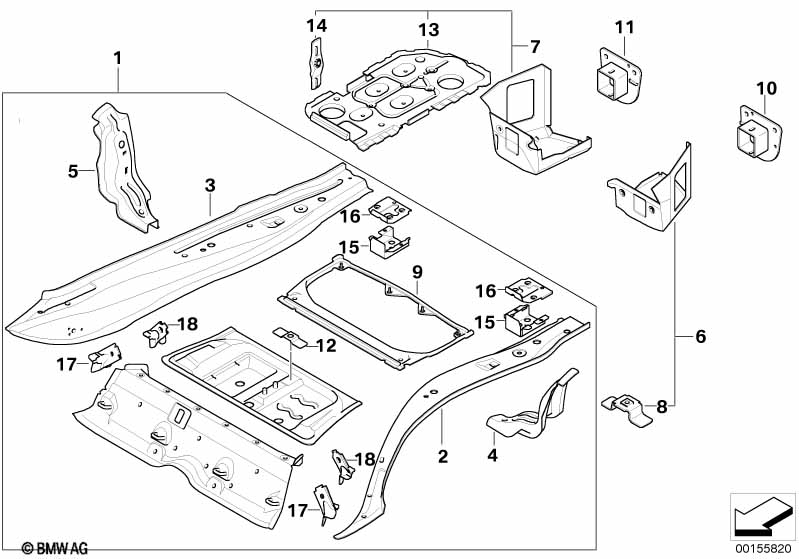

This Mounting parts for trunk floor panel technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 325xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk floor, upper part | 1 | 41117186779 | $552.42 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| 02 | Side member, top left | 1 | 41117145323 | $128.33 | Shop at ECS Tuning | |||||
| 03 | Side member, top right | 1 | 41117145324 | $128.33 | Shop at ECS Tuning | |||||
| 04 | Support for frame side member, left | 1 | 41117185249 | $42.51 | Shop at ECS Tuning | |||||
| 05 | Support for frame side member, right | 1 | 41117185250 | $42.51 | Shop at ECS Tuning | |||||
| 06 | Trunk floor left | 1 | 41117145311 | $110.90 | Shop at ECS Tuning | |||||
| 07 | Trunk floor right | 1 | 41117145312 | $166.34 | Shop at ECS Tuning | |||||
| 08 | Audio universal bracket | 4 | 41147176125 | $3.37 | Shop at ECS Tuning | |||||
| Performed using adhesive bonding/ riveting repair method. |
||||||||||
| 09 | Trunk floor frame | 1 | 41137178135 | $93.80 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 12 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 2 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Punch rivet | N5 | 8 | 83192158079 | $0.39 | Shop at ECS Tuning | ||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| 10 | Mount, bumper left | 1 | 41117173647 | $48.68 | Shop at ECS Tuning | |||||
| 11 | Mount, bumper right | 1 | 41117173648 | $48.68 | Shop at ECS Tuning | |||||
| 12 | Bracket for components | 1 | 41137145320 | $1.58 | Shop at ECS Tuning | |||||
| 13 | Battery tray | 1 | 41117178134 | $28.73 | Shop at ECS Tuning | |||||
| 14 | Bracket for battery strap, front | 1 | 41117178138 | $2.23 | Shop at ECS Tuning | |||||
