Trunk lid/closing system for BMW 3 Series E90 330d (2008)

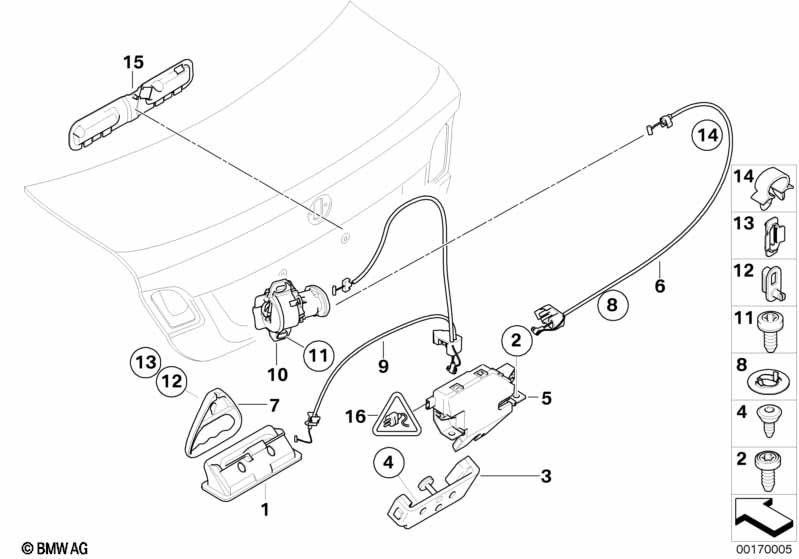

This Trunk lid/closing system technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Boot lid/tailgate pushbutton | 1 | 51247118158 | $29.40 | +core | Shop at ECS Tuning | ||||
| 02 | Torx-bolt with washer | M6X12 | 3 | 07146985055 | $0.38 | Shop at ECS Tuning | ||||
| 03 | Striker trunk lid | 1 | 51247078167 | $8.20 | Shop at ECS Tuning | |||||
| 05 | Trunk lid lock, with micro switch | 1 | 51247840617 | $57.20 | Shop at ECS Tuning | |||||
| 06 | Bowden cable, trunk lid | 1 | 07/2009 | 51247197490 | $12.12 | Shop at ECS Tuning | ||||
| For vehicles with Emergency release, luggage compartment |
S5DSA=Yes |
|||||||||
| 07 | Handle f emergency unlocking | 1 | 51247056414 | $7.25 | Shop at ECS Tuning | |||||
| 08 | Lock cover | 1 | 51247130828 | $1.18 | Shop at ECS Tuning | |||||
| For vehicles with Emergency release, luggage compartment |
S5DSA=Yes |
|||||||||
| 09 | Bowden cable, emergency unlocking | 1 | 07/2007 | 07/2009 | 51247201607 | $19.47 | ENDED | Shop at ECS Tuning | ||
| 10 | Catch with code | 1 | 51247144877 | $130.68 | Shop at ECS Tuning | |||||
| 10 | Catch with key | 1 | 51247144878 | $120.58 | Shop at ECS Tuning | |||||
| 11 | Torx-bolt with washer | M6X12 | 2 | 07146985055 | $0.38 | Shop at ECS Tuning | ||||
| For vehicles with Emergency release, luggage compartment |
S5DSA=Yes |
|||||||||
| 12 | Clip | 1 | 51247056413 | $1.69 | Shop at ECS Tuning | |||||
| 13 | Washer | 1 | 51247057739 | $1.26 | Shop at ECS Tuning | |||||
| 14 | Tubing support | D=10,8MM | 1 | 64111364073 | $0.57 | Shop at ECS Tuning | ||||
| 15 | Cover, Bowden cable | 1 | 51247175963 | $2.76 | Shop at ECS Tuning | |||||
| 16 | Universal socket housing uncoded | 4 POL. | 1 | 06/2013 | 61138380696 | $0.93 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | 4 | 06/2013 | 61130005197 | $1.65 | Shop at ECS Tuning | |||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | 4 | 06/2013 | 61130056960 | Shop at ECS Tuning | ||||
| 16 | Rep. kit for socket housing | 4 POL. | 1 | 61132359994 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | 4 | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | 4 | 61130056960 | Shop at ECS Tuning | |||||
