Master key locking for BMW 3 Series E90 LCI 320d (2011)

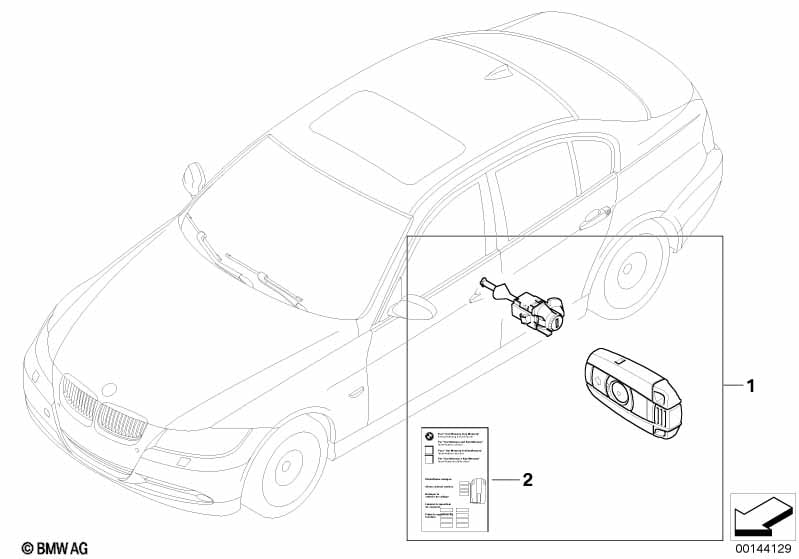

This Master key locking technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention! Before ordering keys or central lock sets (BMS-K/EWS) etc. check the authorization of the customer by controlling the original vehicle- documents and personal photo identification card. ---------- Information regarding remote control: Basic = Radio remote control 868 MHz SA 876 = Radio remote control 315 MHz SA 874 = Radio remote control 434 MHz IMPORTANT NOTICE: Master key function does not include airbag switch. For vehicles manufactured up to 06/2009 please order the additional airbag switch as illustrated in diagram 61_1849 separately! |
|||||||||
| 01 | Set uniform lock.syst. w/CAS cntrl(code) | 868 MHZ | 1 | 09/2006 | 51210034623 | Shop at ECS Tuning | ||||
| SPARE KEY | ||||||||||
| For vehicles with Radio frequency 434 MHz |
S874A=Yes |
|||||||||
| 01 | Set uniform lock.syst. w/CAS cntrl(code) | 434 MHZ | 1 | 09/2006 | 51210034620 | Shop at ECS Tuning | ||||
| Important notice! Before ordering keys, central locking systems, control units (EWS immobilizer/CAS), etc., it is vital to ensure that the customer and/or vehicle owner present proof of authorization in the form of original vehicle documents and an official photo ID! A power of attorney from the vehicle owner is also required for authorised third parties. Copies of the specified credentials (proof of authorisation) must be kept in the vehicle records. Please inform BMW Service immediately if a vehicle key is lost so it can be deactivated in order to avoid taking the risk of losing the insurance cover due to gross negligence in the event of a theft. WITHOUT SPARE KEY |
||||||||||
| For vehicles with Comfort access |
S322A=Yes |
|||||||||
| 01 | Set uniform lock.syst. w/CAS cntrl(code) | 868 MHZ | 1 | 09/2006 | 51210034627 | Shop at ECS Tuning | ||||
| Important notice! Before ordering keys, central locking systems, control units (EWS immobilizer/CAS), etc., it is vital to ensure that the customer and/or vehicle owner present proof of authorization in the form of original vehicle documents and an official photo ID! A power of attorney from the vehicle owner is also required for authorised third parties. Copies of the specified credentials (proof of authorisation) must be kept in the vehicle records. Please inform BMW Service immediately if a vehicle key is lost so it can be deactivated in order to avoid taking the risk of losing the insurance cover due to gross negligence in the event of a theft. WITHOUT SPARE KEY |
||||||||||
| For vehicles with Radio frequency 315 MHz |
S876A=Yes |
|||||||||
| 01 | Set uniform lock.syst. w/CAS cntrl(code) | 315 MHZ | 1 | 09/2006 | 51210034621 | Shop at ECS Tuning | ||||
| Important notice! Before ordering keys, central locking systems, control units (EWS immobilizer/CAS), etc., it is vital to ensure that the customer and/or vehicle owner present proof of authorization in the form of original vehicle documents and an official photo ID! A power of attorney from the vehicle owner is also required for authorised third parties. Copies of the specified credentials (proof of authorisation) must be kept in the vehicle records. Please inform BMW Service immediately if a vehicle key is lost so it can be deactivated in order to avoid taking the risk of losing the insurance cover due to gross negligence in the event of a theft. WITHOUT SPARE KEY |
||||||||||
| For vehicles with Comfort access and Radio frequency 434 MHz |
S322A=Yes S874A=Yes |
|||||||||
| 01 | Set uniform lock.syst. w/CAS cntrl(code) | 434 MHZ | 1 | 09/2006 | 51210034624 | Shop at ECS Tuning | ||||
| Important notice! Before ordering keys, central locking systems, control units (EWS immobilizer/CAS), etc., it is vital to ensure that the customer and/or vehicle owner present proof of authorization in the form of original vehicle documents and an official photo ID! A power of attorney from the vehicle owner is also required for authorised third parties. Copies of the specified credentials (proof of authorisation) must be kept in the vehicle records. Please inform BMW Service immediately if a vehicle key is lost so it can be deactivated in order to avoid taking the risk of losing the insurance cover due to gross negligence in the event of a theft. WITHOUT SPARE KEY |
||||||||||
| For vehicles with National version japan and Radio frequency 315 MHz |
L807A=Yes S876A=Yes |
|||||||||
| 01 | Set uniform lock.syst. w/CAS cntrl(code) | 315 MHZ | 1 | 03/2008 | 51210034621 | Shop at ECS Tuning | ||||
| Important notice! Before ordering keys, central locking systems, control units (EWS immobilizer/CAS), etc., it is vital to ensure that the customer and/or vehicle owner present proof of authorization in the form of original vehicle documents and an official photo ID! A power of attorney from the vehicle owner is also required for authorised third parties. Copies of the specified credentials (proof of authorisation) must be kept in the vehicle records. Please inform BMW Service immediately if a vehicle key is lost so it can be deactivated in order to avoid taking the risk of losing the insurance cover due to gross negligence in the event of a theft. WITHOUT SPARE KEY |
||||||||||
| For vehicles with Comfort access and Radio frequency 315 MHz |
S322A=Yes S876A=Yes |
|||||||||
| 01 | Set uniform lock.syst. w/CAS cntrl(code) | 315 MHZ | 1 | 09/2006 | 51210034625 | Shop at ECS Tuning | ||||
| Important notice! Before ordering keys, central locking systems, control units (EWS immobilizer/CAS), etc., it is vital to ensure that the customer and/or vehicle owner present proof of authorization in the form of original vehicle documents and an official photo ID! A power of attorney from the vehicle owner is also required for authorised third parties. Copies of the specified credentials (proof of authorisation) must be kept in the vehicle records. Please inform BMW Service immediately if a vehicle key is lost so it can be deactivated in order to avoid taking the risk of losing the insurance cover due to gross negligence in the event of a theft. WITHOUT SPARE KEY |
||||||||||
| For vehicles with National version japan and Comfort access and Radio frequency 315 MHz |
L807A=Yes S322A=Yes S876A=Yes |
|||||||||
| 01 | Set unif.lock.syst.w/EWS ctrl unit(code) | 315 MHZ | 1 | 03/2008 | 51210037040 | Shop at ECS Tuning | ||||
| Important notice! Before ordering keys, central locking systems, control units (EWS immobilizer/CAS), etc., it is vital to ensure that the customer and/or vehicle owner present proof of authorization in the form of original vehicle documents and an official photo ID! A power of attorney from the vehicle owner is also required for authorised third parties. Copies of the specified credentials (proof of authorisation) must be kept in the vehicle records. Please inform BMW Service immediately if a vehicle key is lost so it can be deactivated in order to avoid taking the risk of losing the insurance cover due to gross negligence in the event of a theft. WITHOUT SPARE KEY |
||||||||||
| 02 | Label "Key Memory" | 1 | 71239178687 | $4.67 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 LCI 320d Master key locking?
- This technical diagram illustrates the Master key locking within the Bodywork group for the 3 Series E90 LCI 320d produced during 2011. It provides a detailed exploded view of the components, identifying key parts such as the Set uniform lock.syst. w/CAS cntrl(code) (Part #51210034623).
- Which models use the hardware listed in this Master key locking?
- The hardware and components featured in the Master key locking are specific to the 3 Series E90 LCI 320d produced during 2011. These technical specifications ensure that parts like the Set uniform lock.syst. w/CAS cntrl(code) (51210034623) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Master key locking assembly?
- Each item in the Master key locking corresponds to the numbered list below the illustration. For the 3 Series E90 LCI 320d, you can identify the Set uniform lock.syst. w/CAS cntrl(code) by locating its position on the schematic, which then links to the official BMW part number 51210034623 for the Bodywork section.
