Side panel/tail trim for BMW 3 Series E91 LCI 330d (2012)

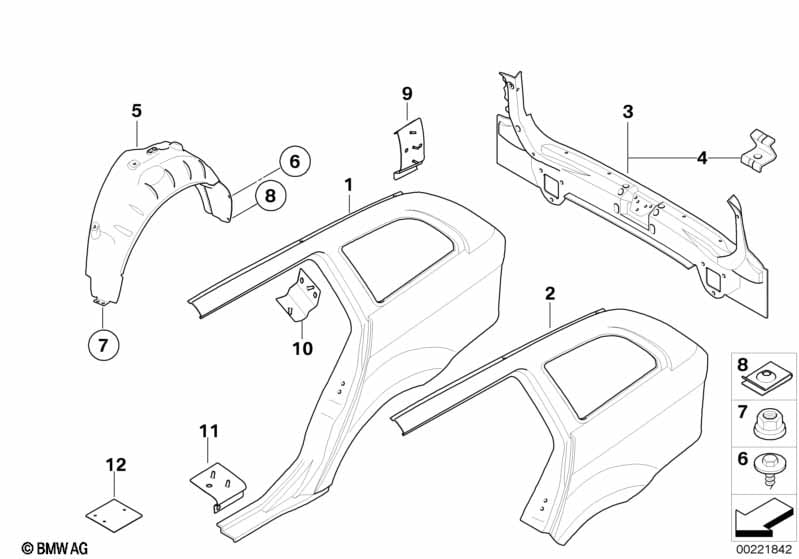

This Side panel/tail trim technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 LCI 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Performed using adhesive bonding/ riveting repair method. |
||||||||||
| 01 | Left rear side panel | 1 | 41217152663 | $467.43 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 14 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 1 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Punch rivet N4 | 26 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Positioning aid T-bolt | 1 | 41212460141 | Shop at ECS Tuning | ||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | Bracket for front left tension strut | 1 | 41127167051 | $19.87 | +core | Shop at ECS Tuning | ||||
| -- | Plastic capnut with washer | D=22MM | 10 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| -- | Reinforcement plate, universal | 1 | 41217275563 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, rocker panel | 1 | 41217275566 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, C-pillar, left | 1 | 41217275579 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, D-pillar, left | 1 | 41217275602 | Shop at ECS Tuning | ||||||
| -- | T-welding stud | L=5,4MM | 10 | 41318412638 | Shop at ECS Tuning | |||||
| 01 | Right rear side panel | 1 | 41217152664 | $467.43 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 14 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 1 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Punch rivet N4 | 26 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Positioning aid T-bolt | 1 | 41212460141 | Shop at ECS Tuning | ||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | Bracket for front right tension strut | 1 | 41127167052 | $19.87 | +core | Shop at ECS Tuning | ||||
| -- | Plastic capnut with washer | D=22MM | 10 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| -- | Reinforcement plate, universal | 1 | 41217275563 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, rocker panel | 1 | 41217275566 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, C-pillar, right | 1 | 41217275594 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, D-pillar, right | 1 | 41217275603 | Shop at ECS Tuning | ||||||
| -- | T-welding stud | L=5,4MM | 10 | 41318412638 | Shop at ECS Tuning | |||||
| 02 | Left rear side panel | 1 | 41217152663 | $467.43 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 14 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 1 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Punch rivet N4 | 26 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Positioning aid T-bolt | 1 | 41212460141 | Shop at ECS Tuning | ||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | Bracket for front left tension strut | 1 | 41127167051 | $19.87 | +core | Shop at ECS Tuning | ||||
| -- | Plastic capnut with washer | D=22MM | 10 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| -- | Reinforcement plate, universal | 1 | 41217275563 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, rocker panel | 1 | 41217275566 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, C-pillar, left | 1 | 41217275579 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, D-pillar, left | 1 | 41217275602 | Shop at ECS Tuning | ||||||
| -- | T-welding stud | L=5,4MM | 10 | 41318412638 | Shop at ECS Tuning | |||||
| 02 | Right rear side panel | 1 | 41217152664 | $467.43 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 14 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 1 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Punch rivet N4 | 26 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Positioning aid T-bolt | 1 | 41212460141 | Shop at ECS Tuning | ||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | Bracket for front right tension strut | 1 | 41127167052 | $19.87 | +core | Shop at ECS Tuning | ||||
| -- | Plastic capnut with washer | D=22MM | 10 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| -- | Reinforcement plate, universal | 1 | 41217275563 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, rocker panel | 1 | 41217275566 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, C-pillar, right | 1 | 41217275594 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, D-pillar, right | 1 | 41217275603 | Shop at ECS Tuning | ||||||
| -- | T-welding stud | L=5,4MM | 10 | 41318412638 | Shop at ECS Tuning | |||||
| Performed using adhesive bonding/ riveting repair method. |
||||||||||
| 03 | Complete tail trim | 1 | 41347152650 | $254.68 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 18 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 2 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Punch rivet | N5 | 8 | 83192158079 | $0.39 | Shop at ECS Tuning | ||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| 04 | Rear silencer bracket | 1 | 41217152651 | $3.32 | Shop at ECS Tuning | |||||
| 05 | Cover, wheel housing, rear left | 1 | 51717143851 | $20.58 | Shop at ECS Tuning | |||||
| 05 | Cover, wheel housing, rear right | 1 | 51717143852 | $20.58 | Shop at ECS Tuning | |||||
| 06 | Hex head screw with washer | ST4,8X16MM | 11 | 07147129160 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Plastic nut | 10 | 51711958025 | $0.26 | Shop at ECS Tuning | |||||
| 08 | Body nut | ST4,8-9-ZNS3 | 6 | 07129904150 | $0.25 | Shop at ECS Tuning | ||||
| 09 | Reinforcement plate, D-pillar, left | 1 | 41217275602 | Shop at ECS Tuning | ||||||
| 09 | Reinforcement plate, D-pillar, right | 1 | 41217275603 | Shop at ECS Tuning | ||||||
| 10 | Reinforcement plate, C-pillar, left | 1 | 41217275579 | Shop at ECS Tuning | ||||||
| 10 | Reinforcement plate, C-pillar, right | 1 | 41217275594 | Shop at ECS Tuning | ||||||
| 11 | Reinforcement plate, rocker panel | 2 | 41217275566 | Shop at ECS Tuning | ||||||
| 12 | Reinforcement plate, universal | 2 | 41217275563 | Shop at ECS Tuning | ||||||
Notes
- +core = plus core charge (possibility of a return of the old part)
