Single components for body-side frame for BMW 3 Series E91 LCI 330d (2012)

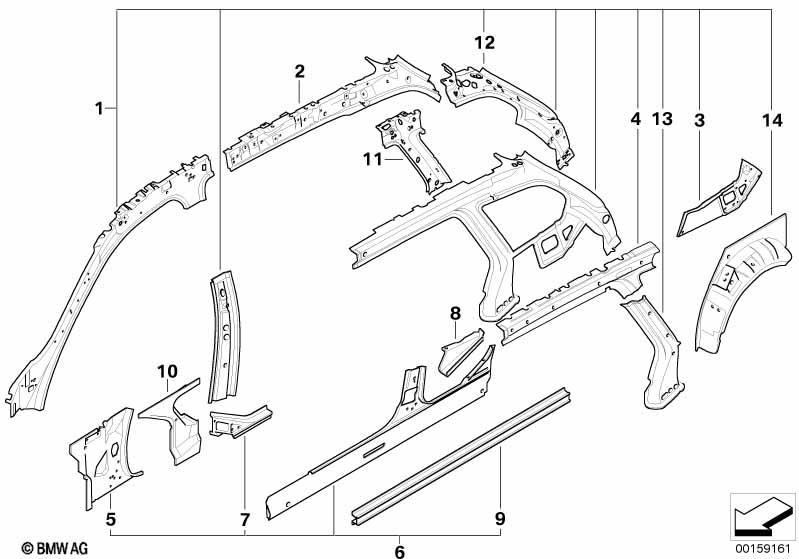

This Single components for body-side frame technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 LCI 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left interior side frame | 1 | 41217277345 | ENDED, +core | Shop at ECS Tuning | |||||
| 01 | Right interior side frame | 1 | 41217277346 | ENDED, +core | Shop at ECS Tuning | |||||
| 02 | Left rear interior roof frame | 1 | 41217178205 | ENDED | Shop at ECS Tuning | |||||
| 02 | Right REAR INTERIOR ROOF FRAME | 1 | 41217178206 | Shop at ECS Tuning | ||||||
| 03 | Reinforcement left | 1 | 41217180041 | $42.48 | Shop at ECS Tuning | |||||
| 03 | Reinforcement right | 1 | 41217180042 | Shop at ECS Tuning | ||||||
| 04 | Reinforcement, interior roof frame, left | 1 | 41317178211 | Shop at ECS Tuning | ||||||
| 04 | Reinforcement, interior roof frame,right | 1 | 41317178212 | Shop at ECS Tuning | ||||||
| 05 | Left interior column A | 1 | 41217145331 | $110.58 | Shop at ECS Tuning | |||||
| 05 | Right interior column A | 1 | 41217145332 | $110.58 | Shop at ECS Tuning | |||||
| 06 | Left side member | 1 | 07/2010 | 41217277347 | Shop at ECS Tuning | |||||
| 06 | Right side member | 1 | 07/2010 | 41217277348 | Shop at ECS Tuning | |||||
| 07 | Reinforcement column A inside left | 1 | 41217145333 | $34.45 | Shop at ECS Tuning | |||||
| 07 | Reinforcement column A inside right | 1 | 41217145334 | $34.45 | Shop at ECS Tuning | |||||
| 08 | Reinforcement for side member, left | 1 | 41117157729 | $33.25 | ENDED | Shop at ECS Tuning | ||||
| 08 | Reinforcement for side member, right | 1 | 41117157730 | $33.25 | Shop at ECS Tuning | |||||
| 09 | Top, side member, left | 1 | 41117145341 | $127.44 | Shop at ECS Tuning | |||||
| 09 | Top, side member, right | 1 | 41117145342 | $127.44 | Shop at ECS Tuning | |||||
| 10 | Connect.plate f.left side panel frame | 1 | 41217145339 | $40.22 | Shop at ECS Tuning | |||||
| 10 | Connect.plate f.right side panel frame | 1 | 41217145340 | $40.22 | Shop at ECS Tuning | |||||
| 11 | Left interior column C | 1 | 41217178203 | Shop at ECS Tuning | ||||||
| 11 | Right interior column C | 1 | 41217178204 | Shop at ECS Tuning | ||||||
| 12 | Left interior column D | 1 | 41217178207 | $119.85 | Shop at ECS Tuning | |||||
| 12 | Right interior column D | 1 | 41217178208 | $119.85 | Shop at ECS Tuning | |||||
| 13 | C-pillar reinforcement, left | 1 | 41217178209 | Shop at ECS Tuning | ||||||
| 13 | C-pillar reinforcement, right | 1 | 41217178210 | $62.48 | Shop at ECS Tuning | |||||
| 14 | Wheel arch outer rear left | 1 | 41217144955 | $170.62 | Shop at ECS Tuning | |||||
| 14 | Wheel arch outer rear right | 1 | 41217144956 | $170.62 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
