Trunk lid/closing system for BMW 3 Series E91 LCI 320i (2009)

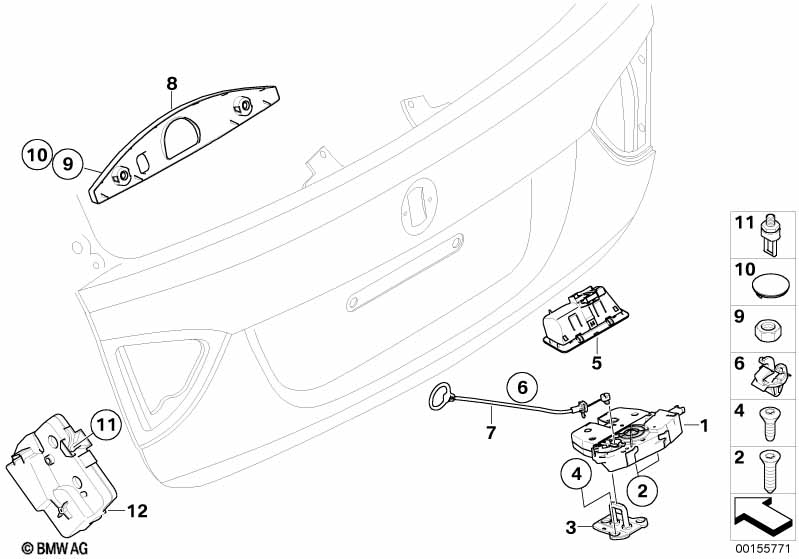

This Trunk lid/closing system technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 LCI 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk lid lock | 1 | 51247308844 | Shop at ECS Tuning | ||||||
| 02 | Torx-countersunk head screw | ISA M8X31 | 2 | 07147160286 | $0.89 | Shop at ECS Tuning | ||||
| 03 | Striker trunk lid | 1 | 51247119048 | $10.58 | Shop at ECS Tuning | |||||
| 04 | Torx-countersunk head screw | ISA M6X13 | 3 | 07147202357 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Boot lid/tailgate pushbutton | 1 | 51247118158 | $29.40 | +core | Shop at ECS Tuning | ||||
| 06 | Clamp | 1 | 51228202809 | $0.50 | Shop at ECS Tuning | |||||
| 07 | Bowden cable, emergency unlocking | 1 | 51247149539 | $17.52 | Shop at ECS Tuning | |||||
| 08 | Trim panel | GRAU | 1 | 51497162177 | $7.44 | Shop at ECS Tuning | ||||
| 08 | Trim panel | BEIGE | 1 | 51497162178 | $7.44 | ENDED | Shop at ECS Tuning | |||
| 08 | Trim panel | SCHWARZ | 1 | 51498036235 | $7.44 | Shop at ECS Tuning | ||||
| 09 | Hex nut | M6-8-ZNNIV SI | 2 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 10 | Cover | SCHWARZ | 2 | 51497164878 | $1.40 | Shop at ECS Tuning | ||||
| 10 | Cover | GRAU | 2 | 51497164896 | $2.06 | Shop at ECS Tuning | ||||
| 10 | Cover | BEIGE | 2 | 51497164897 | $2.06 | ENDED | Shop at ECS Tuning | |||
| 11 | Catch bracket, rear window | 1 | 51248218850 | $8.52 | Shop at ECS Tuning | |||||
| 12 | Rear window lock | 1 | 51247840623 | $113.82 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
