Door weatherstrip rear for BMW 3 Series E91 320d (2008)

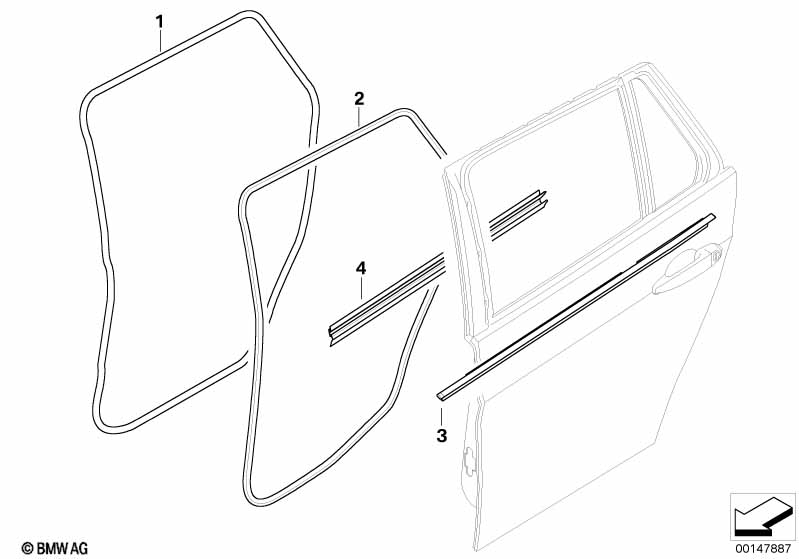

This Door weatherstrip rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Edge protection, door, rear | 2 | 51727247262 | Shop at ECS Tuning | ||||||
| 02 | Door weatherstrip rear | 2 | 51767119963 | $99.39 | Shop at ECS Tuning | |||||
| 03 | Outer weatherstrip, rear left door | 1 | 51357140731 | $26.73 | Shop at ECS Tuning | |||||
| 03 | Window well strip, outer, door, rear rgt | 1 | 51357140732 | $26.73 | Shop at ECS Tuning | |||||
| 03 | Outer weatherstrip, rear left door | CHROM | 1 | 51357140733 | $51.42 | Shop at ECS Tuning | ||||
| 03 | Window well strip, outer, door, rear rgt | CHROM | 1 | 51357140734 | $51.42 | Shop at ECS Tuning | ||||
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 03 | Outer weatherstrip, rear left door | GLANZSCHWARZ | 1 | 51357220191 | $51.42 | Shop at ECS Tuning | ||||
| 03 | Window well strip, outer, door, rear rgt | GLANZSCHWARZ | 1 | 51357220192 | $51.42 | Shop at ECS Tuning | ||||
| 04 | Inner weatherstrip, rear left door | 1 | 51347060247 | $18.75 | Shop at ECS Tuning | |||||
| 04 | Inner weatherstrip, rear right door | 1 | 51347060248 | $18.75 | Shop at ECS Tuning | |||||
