Cavity shielding, side frame for BMW 3 Series E92 LCI 335is (2012)

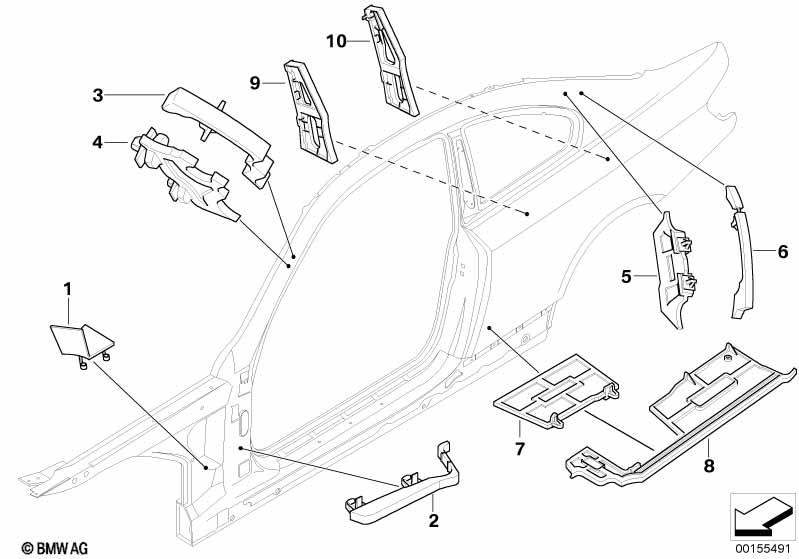

This Cavity shielding, side frame technical drawing provides a detailed breakdown of the assembly for the 3 Series E92 LCI 335is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Moulded part f supporting strut, left | 1 | 41217111495 | $5.63 | Shop at ECS Tuning | |||||
| 01 | Moulded part f supporting strut, right | 1 | 41217111496 | $5.63 | Shop at ECS Tuning | |||||
| 02 | Molded part column A, exterior | 2 | 41217161603 | $3.44 | Shop at ECS Tuning | |||||
| 03 | Molded part column A, exterior | 2 | 41007128429 | $3.17 | Shop at ECS Tuning | |||||
| 04 | Molded part column A, interior | 2 | 41007128457 | $3.40 | Shop at ECS Tuning | |||||
| 05 | Molded part column C, interior | 2 | 41007128849 | $7.91 | Shop at ECS Tuning | |||||
| 06 | Molded part column C, exterior | 2 | 41007128873 | $5.63 | Shop at ECS Tuning | |||||
| 07 | Moulded part f column B, interior | 2 | 41007128419 | $11.35 | Shop at ECS Tuning | |||||
| 08 | Molded part column B, exterior | 2 | 41007128863 | $31.57 | Shop at ECS Tuning | |||||
| 09 | Moulded part, rear wheel front | 2 | 41007186761 | $5.17 | Shop at ECS Tuning | |||||
| 10 | Moulded part f rear wheel housing | 2 | 41217186536 | $5.33 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E92 LCI 335is Cavity shielding, side frame?
- This technical diagram illustrates the Cavity shielding, side frame within the Bodywork group for the 3 Series E92 LCI 335is produced during 2012. It provides a detailed exploded view of the components, identifying key parts such as the Moulded part f supporting strut, left (Part #41217111495).
- Which models use the hardware listed in this Cavity shielding, side frame?
- The hardware and components featured in the Cavity shielding, side frame are specific to the 3 Series E92 LCI 335is produced during 2012. These technical specifications ensure that parts like the Moulded part f supporting strut, left (41217111495) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cavity shielding, side frame assembly?
- Each item in the Cavity shielding, side frame corresponds to the numbered list below the illustration. For the 3 Series E92 LCI 335is, you can identify the Moulded part f supporting strut, left by locating its position on the schematic, which then links to the official BMW part number 41217111495 for the Bodywork section.
