Body-side frame for BMW 3 Series E92 LCI 335is (2013)

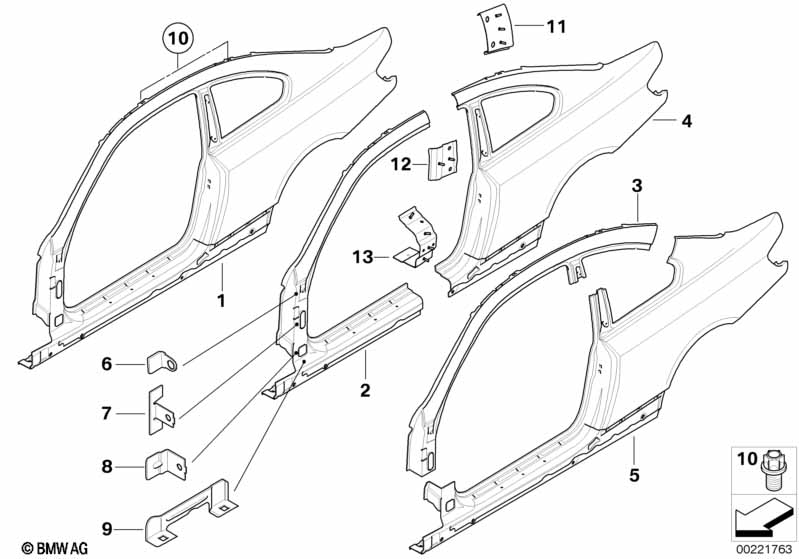

This Body-side frame technical drawing provides a detailed breakdown of the assembly for the 3 Series E92 LCI 335is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Side frame, exterior, left | 1 | 41007168963 | $941.98 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 01 | Side frame, exterior, right | 1 | 41007168964 | $941.98 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Support, hinge, bottom left | 1 | 41217191287 | $7.52 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Support, hinge, bottom right | 1 | 41217191288 | $7.52 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Support, hinge, top left | 1 | 41217191289 | $7.52 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Support, hinge, top right | 1 | 41217191290 | $7.52 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| 02 | Left exterior column A | 1 | 41007168965 | $664.43 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 02 | Column A exterior right | 1 | 41007168966 | $664.43 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Support, hinge, bottom left | 1 | 41217191287 | $7.52 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Support, hinge, bottom right | 1 | 41217191288 | $7.52 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Support, hinge, top left | 1 | 41217191289 | $7.52 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Support, hinge, top right | 1 | 41217191290 | $7.52 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| 03 | Roof frame left | 1 | 41007168969 | $430.25 | Shop at ECS Tuning | |||||
| 03 | Right roof frame | 1 | 41007168970 | $430.25 | Shop at ECS Tuning | |||||
| Performed using adhesive bonding/ riveting repair method. |
||||||||||
| 04 | Left rear side panel | 1 | 41007168967 | $538.92 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 17 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 1 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Punch rivet N4 | 38 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | Plastic capnut with washer | D=22MM | 10 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| -- | Reinforcement plate, rocker panel, left | 1 | 41217275561 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, B-pillar, left | 1 | 41217275573 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, C-pillar, left | 1 | 41217275580 | Shop at ECS Tuning | ||||||
| 04 | Right rear side panel | 1 | 41007168968 | $538.92 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 17 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 1 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Punch rivet N4 | 38 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | Plastic capnut with washer | D=22MM | 10 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| -- | Reinforcement plate, rocker panel, right | 1 | 41217275562 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, B-pillar, right | 1 | 41217275574 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, C-pillar, right | 1 | 41217275595 | Shop at ECS Tuning | ||||||
| 05 | Side frame, exterior, left | 1 | 41007168963 | $941.98 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| 05 | Side frame, exterior, right | 1 | 41007168964 | $941.98 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| 06 | Bracket, side panel, top | 2 | 41217168973 | $3.32 | Shop at ECS Tuning | |||||
| 07 | Bracket, side panel, center | 2 | 41217168975 | $3.44 | Shop at ECS Tuning | |||||
| 08 | Bracket, side panel, bottom | 2 | 41317187750 | $3.63 | Shop at ECS Tuning | |||||
| 09 | Bracket, side panel, bottom left | 1 | 41217168977 | $3.45 | Shop at ECS Tuning | |||||
| 09 | Bracket, side panel, bottom right | 1 | 41217168978 | $3.23 | Shop at ECS Tuning | |||||
| Mounting for Roof rack system |
||||||||||
| 10 | Star screw with internal threads | M10 / M6 | 4 | 07147153767 | $1.98 | Shop at ECS Tuning | ||||
| 11 | Reinforcement plate, C-pillar, left | 1 | 41217275580 | Shop at ECS Tuning | ||||||
| 11 | Reinforcement plate, C-pillar, right | 1 | 41217275595 | Shop at ECS Tuning | ||||||
| 12 | Reinforcement plate, B-pillar, left | 1 | 41217275573 | Shop at ECS Tuning | ||||||
| 12 | Reinforcement plate, B-pillar, right | 1 | 41217275574 | Shop at ECS Tuning | ||||||
| 13 | Reinforcement plate, rocker panel, left | 1 | 41217275561 | Shop at ECS Tuning | ||||||
| 13 | Reinforcement plate, rocker panel, right | 1 | 41217275562 | Shop at ECS Tuning | ||||||
