Body-side frame for BMW 3 Series E93 LCI 320i (2013)

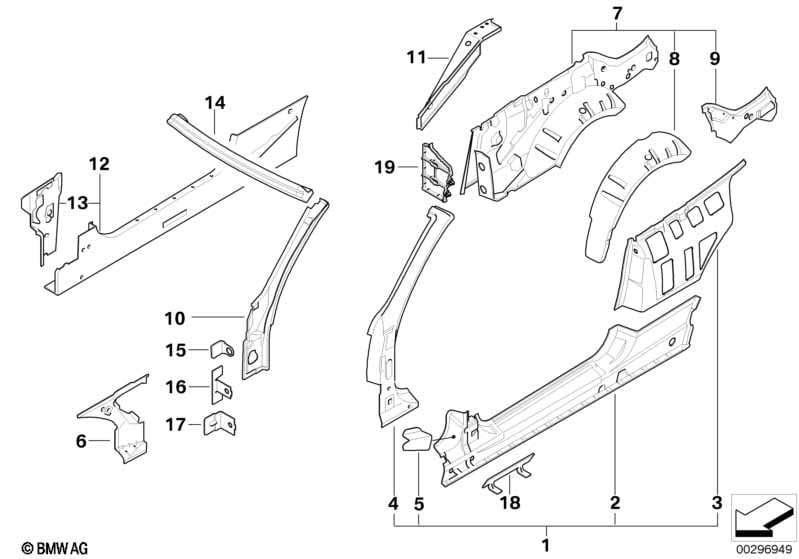

This Body-side frame technical drawing provides a detailed breakdown of the assembly for the 3 Series E93 LCI 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Side frame, exterior, left | 1 | 41007179541 | $623.86 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| 01 | Side frame, exterior, right | 1 | 41007179542 | $623.86 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| 02 | Exterior left entrance | 1 | 41007179551 | $372.84 | Shop at ECS Tuning | |||||
| 02 | Exterior right entrance | 1 | 41007179552 | $372.84 | Shop at ECS Tuning | |||||
| 03 | Reinforcement column B inside left | 1 | 41007179557 | $122.43 | Shop at ECS Tuning | |||||
| 03 | Reinforcement column B inside right | 1 | 41007179558 | $122.43 | Shop at ECS Tuning | |||||
| 04 | Left exterior column A | 1 | 41007179543 | $234.41 | Shop at ECS Tuning | |||||
| 04 | Column A exterior right | 1 | 41007179544 | $234.41 | Shop at ECS Tuning | |||||
| 05 | Crash reinforcement, left | 1 | 41007179555 | $5.13 | Shop at ECS Tuning | |||||
| 05 | Crash reinforcement, right | 1 | 41007179556 | $5.13 | Shop at ECS Tuning | |||||
| 06 | Connect.plate f.left side panel frame | 1 | 41217145339 | $40.22 | Shop at ECS Tuning | |||||
| 06 | Connect.plate f.right side panel frame | 1 | 41217145340 | $40.22 | Shop at ECS Tuning | |||||
| 07 | Left interior side frame | 1 | 41007179531 | $876.47 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| 07 | Right interior side frame | 1 | 41007179532 | $876.47 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Blind rivet nut | M12X1,5 LH | 1 | 07147349071 | Shop at ECS Tuning | |||||
| -- | Stop disk | 20X30X1,9 | 1 | 11317718068 | Shop at ECS Tuning | |||||
| 08 | Wheel arch outer rear left | 1 | 41147179533 | $170.62 | Shop at ECS Tuning | |||||
| 08 | Wheel arch outer rear right | 1 | 41147179534 | $170.62 | Shop at ECS Tuning | |||||
| 09 | Cover panel, side frame rear left | 1 | 41007179535 | $15.35 | Shop at ECS Tuning | |||||
| 09 | Cover panel, side frame rear right | 1 | 41007179536 | $15.35 | Shop at ECS Tuning | |||||
| 10 | Reinforcement column A inside left | 1 | 41217179537 | $187.53 | Shop at ECS Tuning | |||||
| 10 | Reinforcement column A inside right | 1 | 41217179538 | $187.53 | Shop at ECS Tuning | |||||
| 11 | Mount, rollover bar, left | 1 | 41117179599 | $38.48 | Shop at ECS Tuning | |||||
| 11 | Mount, rollover bar, right | 1 | 41117179600 | $38.48 | Shop at ECS Tuning | |||||
| 12 | Left side member | 1 | 41117179579 | $239.29 | Shop at ECS Tuning | |||||
| 12 | Right side member | 1 | 41117179580 | $239.29 | Shop at ECS Tuning | |||||
| 13 | Left interior column A | 1 | 41007179539 | $17.37 | Shop at ECS Tuning | |||||
| 13 | Right interior column A | 1 | 41007179540 | $17.37 | Shop at ECS Tuning | |||||
| 14 | Upper apron | 1 | 41007179613 | $139.59 | Shop at ECS Tuning | |||||
| 15 | Bracket, side panel, top | 2 | 41217168973 | $3.32 | Shop at ECS Tuning | |||||
| 16 | Bracket, side panel, center | 2 | 41217168975 | $3.44 | Shop at ECS Tuning | |||||
| 17 | Bracket, side panel, bottom | 2 | 41317187750 | $3.63 | Shop at ECS Tuning | |||||
| 18 | Bracket, side panel, bottom left | 1 | 41217179549 | $3.79 | Shop at ECS Tuning | |||||
| 18 | Bracket, side panel, bottom right | 1 | 41217179550 | $3.79 | Shop at ECS Tuning | |||||
| 19 | Moulded part f entrance | 1 | 41007201917 | $11.08 | Shop at ECS Tuning | |||||
