Side panel/tail trim for BMW 3 Series E93 328i (2010)

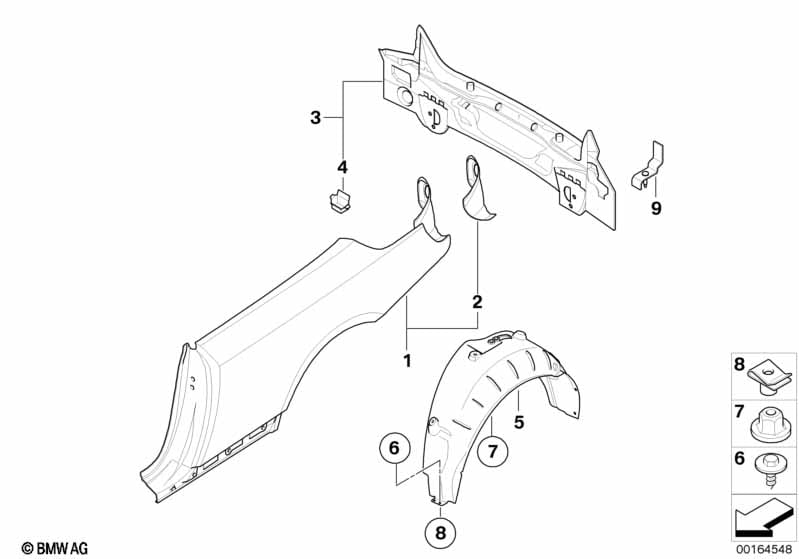

This Side panel/tail trim technical drawing provides a detailed breakdown of the assembly for the 3 Series E93 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Performed using adhesive bonding/ riveting repair method. |
||||||||||
| 01 | Left rear side panel | 1 | 41007179527 | $538.92 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| 01 | Right rear side panel | 1 | 41007179528 | $538.92 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 25 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 1 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Punch rivet N4 | 30 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| 02 | Rear lights cup, left | 1 | 41007179529 | $19.48 | Shop at ECS Tuning | |||||
| 02 | Rear lights cup, right | 1 | 41007179530 | $19.48 | Shop at ECS Tuning | |||||
| Performed using adhesive bonding/ riveting repair method. |
||||||||||
| 03 | Tail trim | 1 | 41007179526 | $264.87 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 14 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 2 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Punch rivet | N5 | 8 | 83192158079 | $0.39 | Shop at ECS Tuning | ||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Punch rivet N4 | 8 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| 04 | Bracket for rear tension strut | 1 | 41117179572 | $5.22 | Shop at ECS Tuning | |||||
| 05 | Cover, wheel housing, rear left | 1 | 51717154413 | $42.43 | Shop at ECS Tuning | |||||
| 05 | Cover, wheel housing, rear right | 1 | 51717154414 | $42.43 | Shop at ECS Tuning | |||||
| 06 | Hex head screw with washer | ST4,8X16MM | 11 | 07147129160 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Plastic nut | 10 | 51711958025 | $0.26 | Shop at ECS Tuning | |||||
