Single components for body-side frame for BMW 1 Series E81 116d (2011)

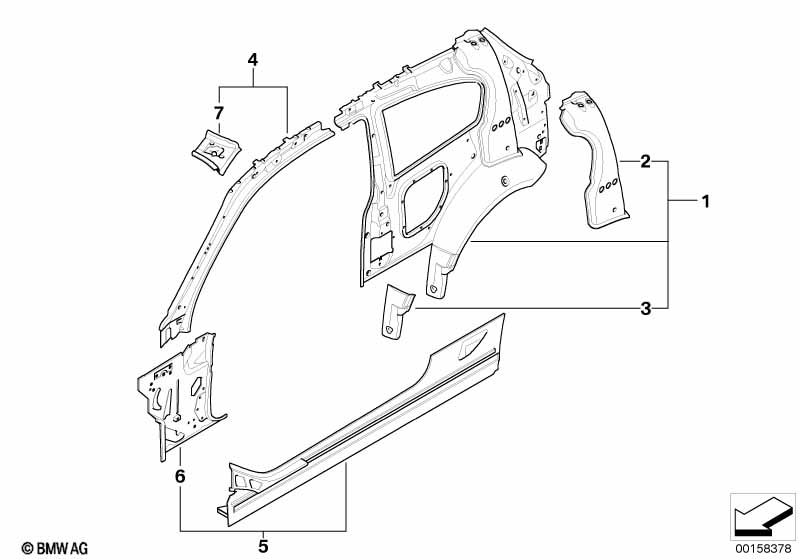

This Single components for body-side frame technical drawing provides a detailed breakdown of the assembly for the 1 Series E81 116d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left interior side frame | 1 | 41217177685 | ENDED | Shop at ECS Tuning | |||||
| 01 | Right interior side frame | 1 | 41217177686 | Shop at ECS Tuning | ||||||
| 02 | C-pillar reinforcement, left | 1 | 41217177679 | Shop at ECS Tuning | ||||||
| 02 | C-pillar reinforcement, right | 1 | 41217177680 | Shop at ECS Tuning | ||||||
| 03 | Cover panel, wheel house, left | 1 | 41217177677 | Shop at ECS Tuning | ||||||
| 03 | Cover panel, wheel house, right | 1 | 41217177678 | Shop at ECS Tuning | ||||||
| 04 | Connector, A-pillar/roof frame left | 1 | 41217177683 | $128.93 | Shop at ECS Tuning | |||||
| 04 | Connector, A-pillar/roof frame right | 1 | 41217177684 | $128.93 | Shop at ECS Tuning | |||||
| 05 | Left side member | 1 | 41117180017 | $260.17 | Shop at ECS Tuning | |||||
| 05 | Right side member | 1 | 41117180018 | $260.17 | Shop at ECS Tuning | |||||
| 06 | Left interior column A | 1 | 41217198365 | $73.86 | Shop at ECS Tuning | |||||
| 06 | Right interior column A | 1 | 41217198366 | $73.86 | Shop at ECS Tuning | |||||
| 07 | Left upper apron reinforcement | 1 | 41217177681 | $7.82 | Shop at ECS Tuning | |||||
| 07 | Right upper apron reinforcement | 1 | 41217177682 | $7.82 | Shop at ECS Tuning |
