Side panel/tail trim for BMW 1 Series E82 118d (2013)

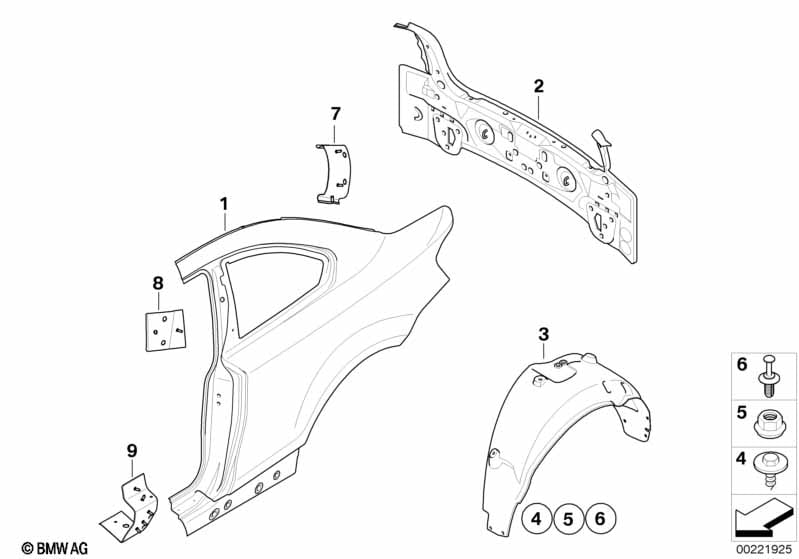

This Side panel/tail trim technical drawing provides a detailed breakdown of the assembly for the 1 Series E82 118d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Performed using adhesive bonding/ riveting repair method. |
||||||||||
| 01 | Left rear side panel | 1 | 41002996771 | $485.21 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 16 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 1 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Punch rivet N4 | 40 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | Plastic capnut with washer | D=22MM | 10 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| -- | Reinforcement plate, rocker panel | 1 | 41217275564 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, B-pillar, left | 1 | 41217275571 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, C-pillar, left | 1 | 41217275576 | Shop at ECS Tuning | ||||||
| 01 | Right rear side panel | 1 | 41002996772 | $485.21 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 16 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 1 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Punch rivet N4 | 40 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | Plastic capnut with washer | D=22MM | 10 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| -- | Reinforcement plate, rocker panel | 1 | 41217275564 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, B-pillar, right | 1 | 41217275572 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, C-pillar, right | 1 | 41217275591 | Shop at ECS Tuning | ||||||
| 02 | Complete tail trim | 1 | 41347193222 | $223.00 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 20 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 2 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Punch rivet | N5 | 8 | 83192158079 | $0.39 | Shop at ECS Tuning | ||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Punch rivet N4 | 14 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| 03 | Cover, wheel housing, rear left | 1 | 51717166249 | $43.25 | Shop at ECS Tuning | |||||
| 03 | Cover, wheel housing, rear right | 1 | 51717166250 | $43.25 | Shop at ECS Tuning | |||||
| 04 | Hex head screw with washer | ST4,8X16MM | 9 | 07147129160 | $0.36 | Shop at ECS Tuning | ||||
| 05 | Plastic nut | 10 | 51711958025 | $0.26 | Shop at ECS Tuning | |||||
| 06 | Expanding rivet | D = 6MM | 2 | 51111908077 | $0.30 | Shop at ECS Tuning | ||||
| 07 | Reinforcement plate, C-pillar, left | 1 | 41217275576 | Shop at ECS Tuning | ||||||
| 07 | Reinforcement plate, C-pillar, right | 1 | 41217275591 | Shop at ECS Tuning | ||||||
| 08 | Reinforcement plate, B-pillar, left | 1 | 41217275571 | Shop at ECS Tuning | ||||||
| 08 | Reinforcement plate, B-pillar, right | 1 | 41217275572 | Shop at ECS Tuning | ||||||
| 09 | Reinforcement plate, rocker panel | 2 | 41217275564 | Shop at ECS Tuning | ||||||
